Automatic Load Control Relay-G20

Emergency Lighting Automatic Load Control Relay

Constant Current LED Driver

AM-185-EMAC30-55

MEMLEDS20-1555-9.6CHX_AM60_rev_N

Constant Power Emergency LED Driver

Case: AM247SC Size: L: 32 cm W: 5.7 cm H: 5.2cm

Case: AM60 Size: L: 33.8 cm W: 6.2 cm H: 3.8cm

Categories: Constant Power Emergency LED Pack, Emergency LED Driver, Ultra High Voltage series

Features

– Universal input voltage 120-277,120-347,347-480Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality LiFePO4 battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty

Constant Power Emergency LED Driver

Model Name	Voltage VAC(Input )	Power W (Output)	Current mA(Output)	Voltage V (Output)	Metal Conduit	Dimension(mm)	File
EMAC10-55	120-277	5	333-91	15-55	Optional	2414329.5
EMAC10-55	120-277	10	670-180	15-55	Optional	2414329.5
EMAC14-55	120-277	14	935-250	15-55	Optional	3044330.5
EMAC20-55	120-277	16	1060-290	15-55	Optional	3386238
EMAC20-55	120-277	20	1350-360	15-55	Optional	3386238
EMAC30-55	120-277	25	1666-454	15-55	Optional	3386238
EMAC30-55	120-277	30	2000-545	15-55	Optional	3386238
EMMC10-55	120-347	10	370-180	15-55	Optional	24143295
EMMC14-55	120-347	14	935-250	15-55	Optional	3044330.5
EMMC20-55	120-347	20	1350-360	15-55	Optional	3386238
EMMC30-55	120-347	25	1666-454	15-55	Optional	3386238
EMMC30-55	120-347	30	2000-545	15-55	Optional	3386238
EM4C10-55	347-480	10	670-180	15-55	Optional	2414329.5
EM4C20-55	347-480	20	1350-360	15-55	Optional	3386238
EM4C30-55	347-480	25	1666-454	15-55	Optional	3386238
EM4C30-55	347-480	30	2000-545	15-55	Optional	3386238

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA(Output)	Voltage V (Output)	Remark	Dimension(mm)	File
EMAC10-55	120-277	5	333-91	15-55	Low Profile / Slim Type	421.63025.4/42030.528	Download
EMAC10-55	120-277	10	670-180	15-55	Low Profile	421.63025.4	Download
EMAC14-55	120-277	14	935-250	15-55	Low Profile	421.63025.4
EMMC10-55	120-347	4	267-73	15-55	Low Profile	421.63025.4	Download
EMMC10-55	120-347	10	670-180	15-55	Slim Type	42030.528	Download
EMMC10-55	120-347	10	670-180	15-55	Low Profile	421.63025.4	Download
EMMC14-55	120-347	14	935-250	15-55	Low Profile	421.63025.4

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA(Output)	Voltage V (Output)	Metal Conduit	Dimension(mm)	File
EMAC10-130	120-277	10	333-77	30-130	Optional	3044330.5
EMAC20-130	120-277	20	667-154	30-130	Optional	3386238
EMAC30-130	120-277	25	833-192	30-130	Optional	3386238
EMAC30-130	120-277	30	1000-231	30-130	Optional	3386238
EMMC20-130	120-347	20	667-154	30-130	Optional	3386238
EM4C20-130	347-480	20	667-154	30-130	Optional	3386238

Wire Diagram

Wire Diagram

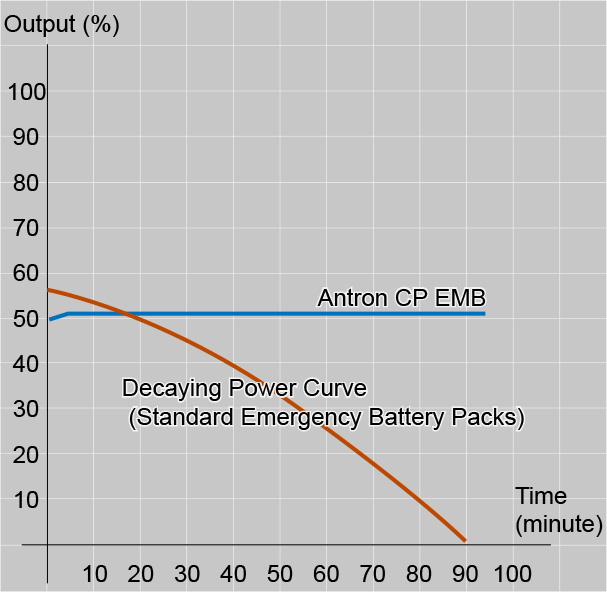

Antron constant power emergency LED driver provide 10W to 20W output power with 15-55V output voltage. So what makes the emergency driver so special? The EMB pack maintains the same output wattage level during emergency mode. Moreover, the LED emergency battery pack can work with any AC drivers with maximum 5 amp output current. The benefit of delivering constant power is to keep the same level of lighting illumination. With this said, it will be very simple to calculate the lumen per watt for your lighting applications.

Universal CP Emergency LED Driver

Our constant power LED emergency pack works with universal input voltage from standard 120-277V to wider input 120-347V. Anywhere you are in the world, Antron CP LED EMB driver will fit perfectly in various locations without any problems.

Constant Power EMB Pack Features

The LED emergency backup driver contains high quality LiFePO4 battery and DC inverter. Under most emergency situation, the power shuts off. This will automatically trigger the constant power EMB unit switching to emergency mode. During emergency mode, the battery enclosed in the EMB will start providing power to the DC inverter. It transfers to constant power output and maintains at 10W to 20W output power under emergency mode.
Antron emergency LED pack series provide power to your LED lighting fixture that will last for at least 90 mins. Last but not least, Antron emergency battery backup LED driver is UL listed & BC certified. It also meets CEC title 20 approval. Providing safety and high quality emergency driver is our mission!
Every emergency LED kit is attached with a test switch that has an LED indicator. Illuminated LED indicator indicates the battery is charging correctly. To test the EMB pack, press the LED indicator, the driver will switch to emergency mode immediately. This feature enables our customers to perform monthly and annual test in simplicity.

EMAC10-55

EMAC10-55

EMMC10-55
