TRIAC Dimmable Constant Current LED Driver

Reliable LED Dimming with Leading-Edge and Trailing-Edge Compatibility

Introduction

ANTRON TRIAC Dimmable LED Drivers provide a reliable and flexible dimming solution for residential, commercial, and architectural LED lighting applications. Compatible with both leading-edge and trailing-edge dimmers, the series supports flexible constant current output from 10W to 55W and is available with 120–277Vac input options for selected models.

Key Features

10W–100W Output Power
Leading-Edge & Trailing-Edge Dimming
120–277Vac Input Options
Adjustable Output Current

Reliable TRIAC Dimming for LED Lighting

Simple Dimming. Flexible Installation.

Unlike systems that require extensive building wiring modifications, ANTRON TRIAC Dimmable LED Drivers allow the dimmer to be connected directly to the AC input side of the LED driver.
This provides a simple and cost-effective solution for LED lighting applications that require smooth and flexible dimming control.

Compatible with:

• TRIAC Dimmers

• Forward-Phase / Leading-Edge Dimmers

• ELV Dimmers

• Reverse-Phase / Trailing-Edge Dimmers

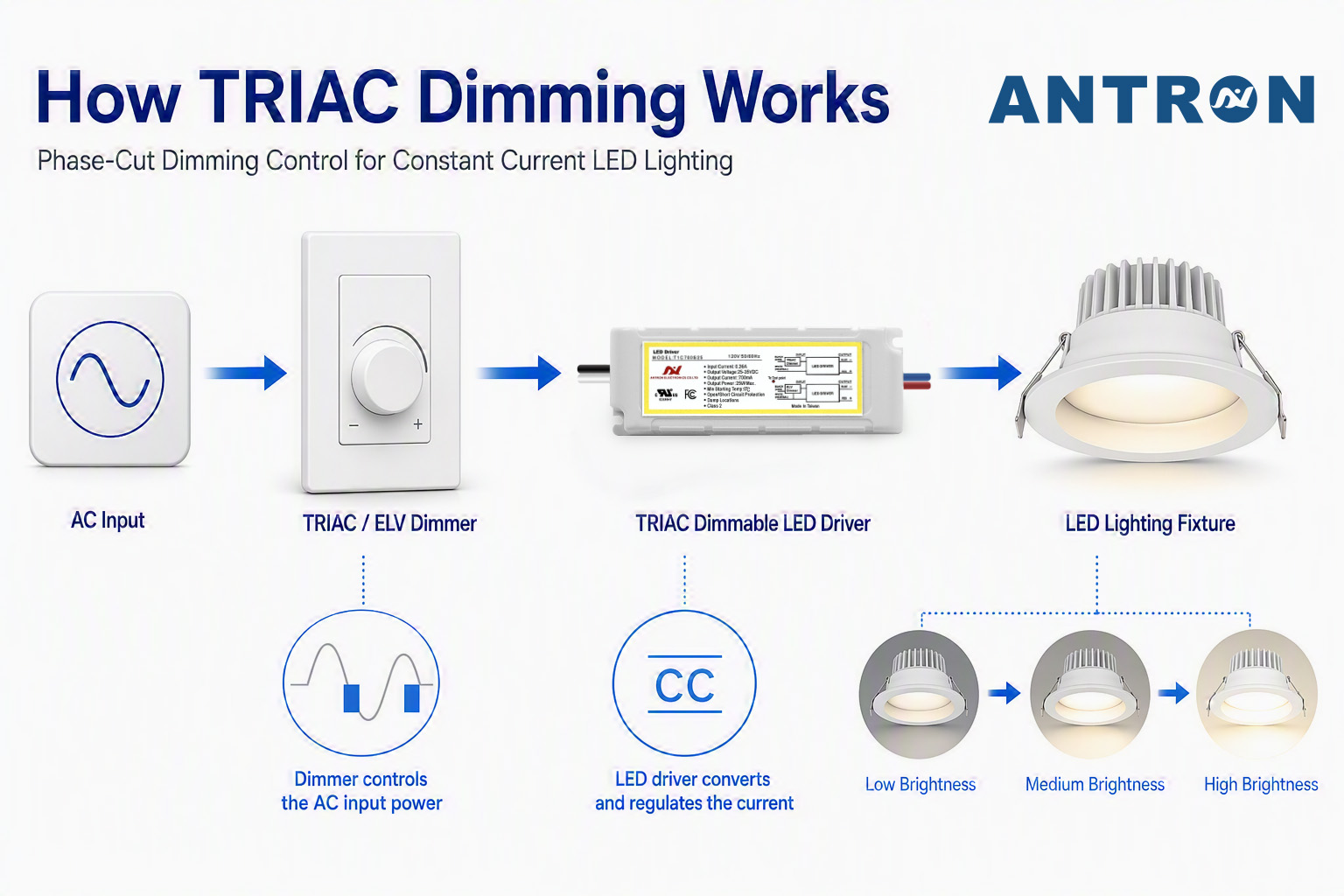

How TRIAC Dimming Works

Connect the Dimmer to the AC Input

The dimmer is connected to the AC input side of the LED driver to control the power delivered to the LED lighting fixture.
Simple wiring. Flexible dimming control.

Compatible with Leading-Edge and Trailing-Edge Dimmers

Flexible Compatibility for Different Lighting Systems

ANTRON TRIAC Dimmable LED Drivers are designed to work with both major phase-cut dimming methods.

Leading-Edge Dimming

Also known as forward-phase dimming, commonly used with traditional TRIAC dimmers.

Trailing-Edge Dimming

Also known as reverse-phase dimming, commonly used with ELV dimming systems.

One LED Driver. Multiple Dimming Options.

Flexible Constant Current Output

Designed for Different LED Load Requirements

The ANTRON TRIAC Dimmable LED Driver series supports a wide range of constant current output configurations for different LED lighting applications.
Selected models support factory-customized output current configurations to meet specific project requirements.

Benefits

• Flexible LED fixture design

• Customized output current

• Support for OEM and ODM projects

• Simplified product selection

Reliable Performance and Protection

Built for Long-Term LED Lighting Operation

ANTRON TRIAC Dimmable LED Drivers integrate multiple protection functions to help protect the driver and connected LED lighting fixtures.

Integrated Protection

• Short-Circuit Protection

• Open-Circuit Protection

• Over-Voltage Protection

• Over-Temperature Protection

Stable Electrical Performance

• Power Factor >0.9

• THD <20%

• Efficiency up to 90%

• PFC Design

• Isolated Design

Product Series

TRIAC Dimmable Constant Current LED Drivers

ANTRON offers multiple constant current TRIAC dimmable LED drivers for different input voltage, output power, and LED current requirements.

Output Power Range

10W–55W

Selected Models

Factory-customized output current configurations are available for selected models.

Applications

Ideal for Dimmable LED Lighting

Residential Lighting

Compatible with common phase-cut dimming systems.

Commercial Lighting

Flexible dimming for commercial lighting installations.

Architectural Lighting

Suitable for applications requiring adjustable light levels.

LED Retrofit Projects

A practical solution for upgrading existing dimmable lighting systems.

Technical Specifications

• Input Voltage: 120Vac / 120–277Vac

• Output Power: 10W–100W

• Output Current: Model Dependent

• Dimming: Leading-Edge / Trailing-Edge

• Dimming Type: TRIAC / ELV

• Efficiency: Up to 90%

• Power Factor: >0.9

• THD: <20%

• Protection: Short-Circuit / Open-Circuit / Over-Voltage / Over-Temperature

• Design: PFC / Isolated

• Warranty: 3 Years

FAQ

What is a TRIAC Dimmable LED Driver?

A TRIAC Dimmable LED Driver is an LED driver designed to work with phase-cut dimming systems, allowing the brightness of compatible LED lighting fixtures to be adjusted.

Does this LED driver support both leading-edge and trailing-edge dimming?

Yes. ANTRON TRIAC Dimmable LED Drivers are designed to support both leading-edge and trailing-edge dimming, depending on the selected model and compatible dimmer.

Where should the dimmer be connected?

The dimmer should be connected to the AC input side of the LED driver.

Can the output current be customized?

Yes. Factory-customized output current configurations are available for selected models.

What applications are suitable for TRIAC Dimmable LED Drivers?

They are suitable for residential, commercial, architectural, retrofit, and other LED lighting applications requiring phase-cut dimming control.

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA (Output)	Voltage V (Output)	Efficiency %(Output)	Dimension(mm)	File
AC700D25CBWFL	120-277	25	700	22-36	87	395*38*28.5	Download

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA (Output)	Voltage V (Output)	Efficiency %(Output)	Dimension(mm)	File
T1C700S10	120	10	700	10-15	84	98*37*26.5	Download
T1C1050S15	120	15	1050	10-15	85	98*37*26.5	Download
T1C350S18	120	18	350	36-51	86	98*37*26.5	Download
T1C500S18	120	18	500	25-36	86	110*45*28	Download
T1C350S25	120	25	350	50-71	87	110*45*28	Download
T1C500S25	120	25	500	35-50	87	110*45*28	Download
T1C700S25	120	25	700	25-36	87	110*45*28	Download
T1C700S35	120	35	700	35-50	85	110*45*28	Download
T1C1050S35	120	35	1050	24-35	85	110*45*28	Download
T1C1400S35	120	35	1400	17-25	85	110*45*28	Download
T1C1050S55L	120	55	1050	37-53	85	133*63*30	Download
T1C1400S55L	120	55	1400	29-39	85	133*63*30	Download

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA (Output)	Voltage V (Output)	Efficiency %(Output)	Dimension(mm)	File
T1V12S30	120	30	250-2500	12	85	126*105*32	Download
T1V24S30	120	30	125-1250	24	85	126*105*32	Download
TAV12S60	120-277	60	500-5000	12	86	241*43*30.5	Download
TAV24S60	120-277	60	250-2500	24	86	241*43*30.5	Download
TAV12S100	120-277	100	833-8333	12	86	206*87*34.5	Download
TAV24S100	120-277	100	410-4100	24	86	206*87*34.5	Download

Note: The output current can be customized in factory
