Junction Box LED Driver
2026-05-11
Constant Current LED Driver 5-40W
Case: AM110 Size: L: 11.1 cm W: 7.8 cm H: 3.2 cm
Case: AM122 Size: L: 10.7 cm W: 3.6 cm H: 2.9 cm
Case: AM181 Size: L: 7.6 cm W: 4.6 cm H: 2.85 cm
Case: AM188 Size: L: 15.4 cm W: 3.2 cm H: 2.9 cm
Case: AM198 Size: L: 10 cm W: 3 cm H: 2.3 cm
Features
– Universal input voltage 120-277Vac
– Mini form factor
– Low cost and high reliability
– PFC, Flicker Free, Isolated design
– Open/Short/Over-Voltage/Over Temp. protection
– 2kV surge protection
– Suitable for UL dry and damp location
– 5 years warranty
Constant Current Series Overview (5W-40W Non-Dimming)
Model Name Voltage VAC(Input) Power W(Output) Current mA (Output) Voltage V (Output) Efficiency %(Output) Dimension(mm) File
AC350S5M 120-277 5 350 9-14 83 76x46x28.5 / 107x36x29 Download
AC350S5M 120-277 5 350 9-14 83 76x46x28.5 / 107x36x29 Download
AC500S5M 120-277 5 500 6-10 83 76x46x28.5 / 107x36x29 Download
AC500S5M 120-277 5 500 6-10 83 76x46x28.5 / 107x36x29 Download
AC700S5M 120-277 5 700 5-7 83 76x46x28.5 / 107x36x29 Download
AC700S5M 120-277 5 700 5-7 83 76x46x28.5 / 107x36x29 Download
AC1050S5M 120-277 5 1050 3-5 83 76x46x28.5 / 107x36x29 Download
AC1050S5M 120-277 5 1050 3-5 83 76x46x28.5 / 107x36x29 Download
AC350S12M 120-277 12 350 20-34 85 76x46x28.5 / 107x36x29 Download
AC350S12M 120-277 12 350 20-34 85 76x46x28.5 / 107x36x29 Download
AC500S12M 120-277 12 500 15-24 85 76x46x28.5 / 107x36x29 Download
AC500S12M 120-277 12 500 15-24 85 76x46x28.5 / 107x36x29 Download

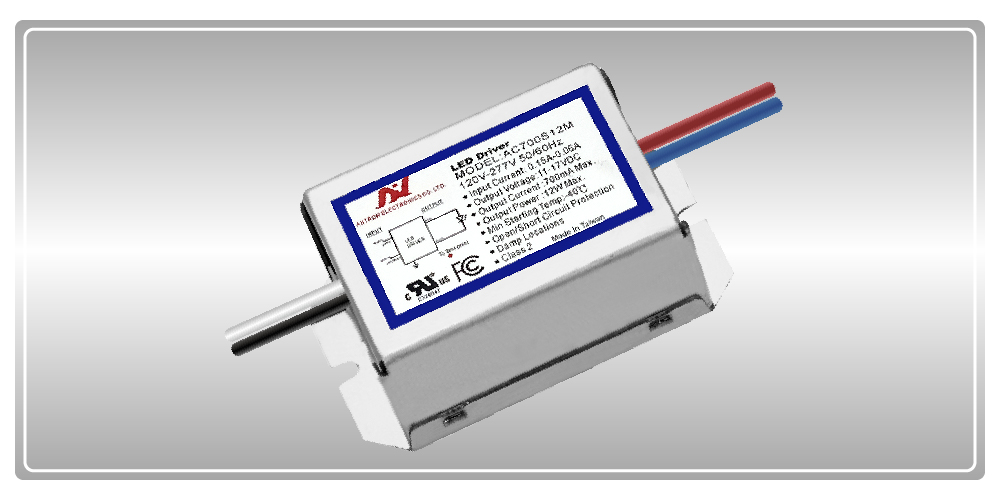

AC700S12M 120-277 12 700 11-17 85 76x46x28.5 / 107x36x29 Download
AC700S12M 120-277 12 700 11-17 85 76x46x28.5 / 107x36x29 Download

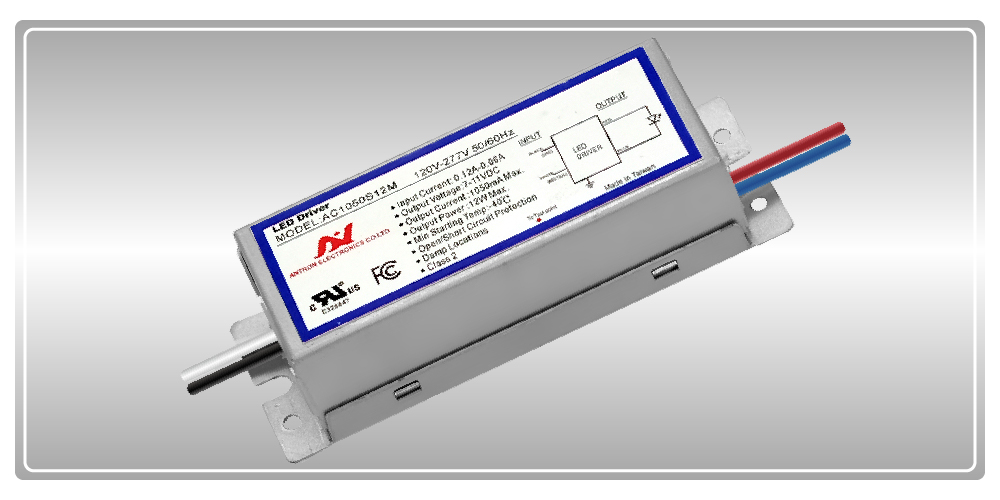

AC1050S12M 120-277 12 1050 7-11 85 76x46x28.5 / 107x36x29 Download
AC1050S12M 120-277 12 1050 7-11 85 76x46x28.5 / 107x36x29 Download
AC1050S40 120-277 40 1050 22-38 88 154x32x29 Download
Note: The output current can be customized in factory
Wire Diagram
