BIAX PL-L Instant Start Ballasts 25W-40W_AM103_2-3 Lamps
Case: AM103 Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm
Features
● Maximum Three Lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
BIAX PL-L Instant Start Ballasts 25W-40W_AM103_2-3 Lamps Series Overview
| Model Name | Starting Method | Input voltage | Lamp type | Rated Lamp Watts | No. of Lamp |
| EPT-140PBXM | Instant Start | 120V | FT40W | 40W | 3 |
| 2 | |||||
| FT39W | 39W | 3 | |||
| 2 | |||||
| FT36W | 36W | 3 | |||
| 2 | |||||
| FT40/ES (28W) |
28W | 3 | |||
| 2 | |||||
| FT40/ES (25W) |
25W | 3 | |||
| 2 | |||||
| EPT-140PBXM-E | Instant Start | 120V | FT40W | 40W | 3 |
| 2 | |||||
| FT39W | 39W | 3 | |||
| 2 | |||||
| FT36W | 36W | 3 | |||
| 2 | |||||
| FT40/ES (28W) |
28W | 3 | |||
| 2 | |||||
| FT40/ES (25W) |
25W | 3 | |||
| 2 | |||||
| EPT-340PBXM | Instant Start | 347V | FT40W | 40W | 3 |
| 2 | |||||
| FT39W | 39W | 3 | |||
| 2 | |||||
| FT36W | 36W | 3 | |||
| 2 | |||||
| FT40/ES (28W) |
28W | 3 | |||
| 2 | |||||
| FT40/ES (25W) |
25W | 3 | |||
| 2 | |||||
| EPT-340PBXM-E | Instant Start | 347V | FT40W | 40W | 3 |
| 2 | |||||
| FT39W | 39W | 3 | |||
| 2 | |||||
| FT36W | 36W | 3 | |||
| 2 | |||||
| FT40/ES (28W) |
28W | 3 | |||
| 2 | |||||
| FT40/ES 25W) |
25W | 3 | |||
| 2 | |||||
| EPT-A40PBXM | Instant Start | 120-277V | FT40W | 40W | 3 |
| 2 | |||||
| FT39W | 39W | 3 | |||
| 2 | |||||
| FT36W | 36W | 3 | |||
| 2 | |||||
| FT40/ES (28W) |
28W | 3 | |||
| 2 | |||||
| FT40/ES (25W) |
25W | 3 | |||
| 2 | |||||
| EPT-A40PBXM-E | Instant Start | 120-277V | FT40W | 40W | 3 |
| 2 | |||||
| FT39W | 39W | 3 | |||
| 2 | |||||
| FT36W | 36W | 3 | |||
| 2 | |||||
| FT40/ES (28W) |
28W | 3 | |||
| 2 | |||||
| FT40/ES (25W) |
25W | 3 | |||
| 2 |

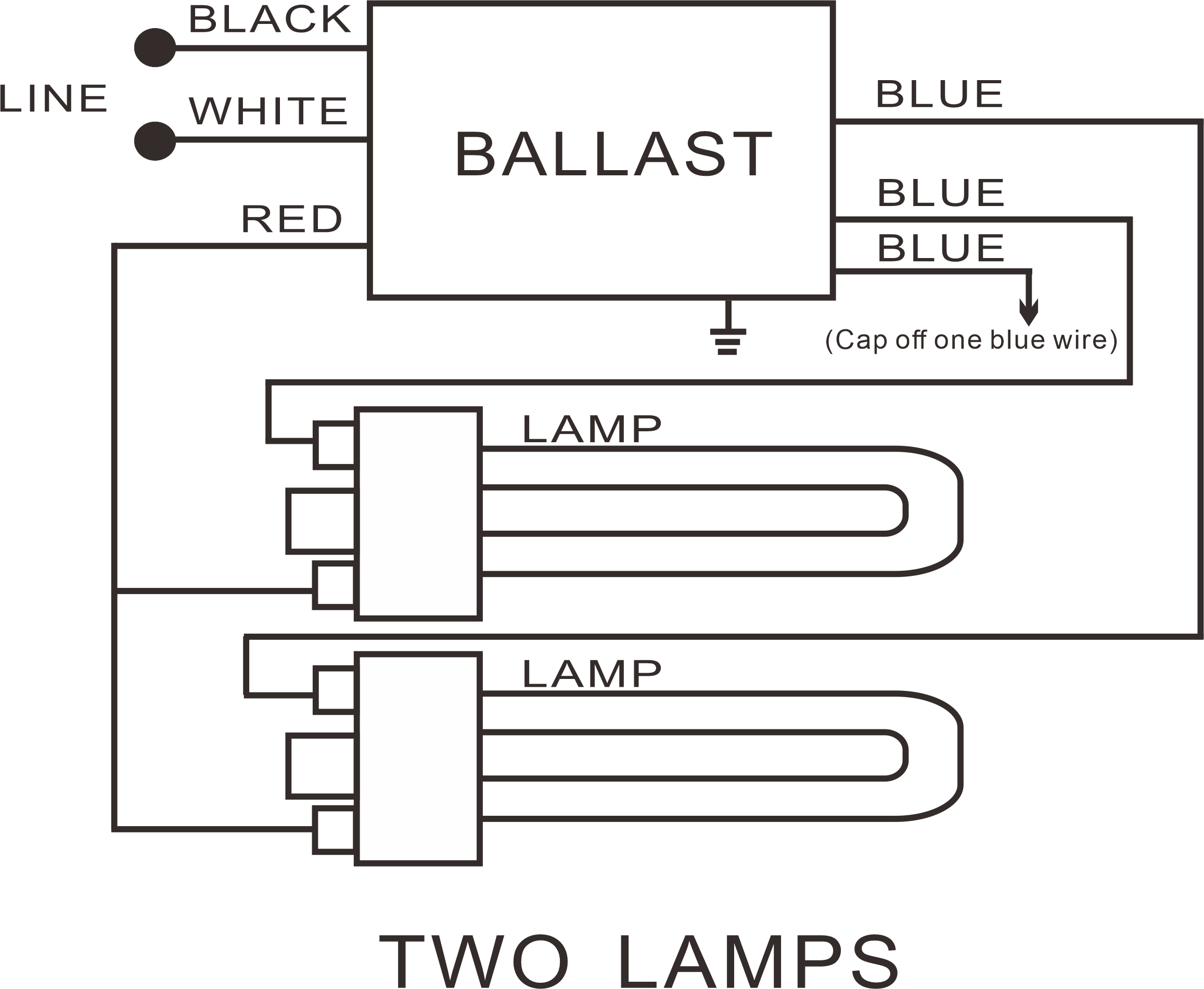

Wire Diagram
Three Lamps
Two Lamps
