T5 Instant Start Ballasts 14W-28W_AM103_3-4 Lamps

Case: AM103  Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm

Description

Features

● Three or Four lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected

T5 Instant Start Ballasts 14W-28W_AM103_3-4 Lamps Series Overview

Model Name Starting Method Input voltage Lamp type Rated Lamp Watts No. of Lamp
EPQ-314T5M Instant Start 347V 14W T5 14W 4
3
EPQ-321T5M Instant Start 347V 21W T5 21W 4
3
14W T5 14W 4
3
EPQ-324T5M Instant Start 347V 24W T5 24W 4
3
EPQ-328T5M Instant Start 347V 28W T5 28W 4
3
EPQ-A14T5M Instant Start 120-277V 14W T5 14W 4
3
EPQ-A21T5M Instant Start 120-277V 21W T5 21W 4
3
14W T5 14W 4
3
EPQ-A24T5M Instant Start 120-277V 24W T5 24W 4
3
EPQ-A28T5M Instant Start 120-277V 28W T5 28W 4
3

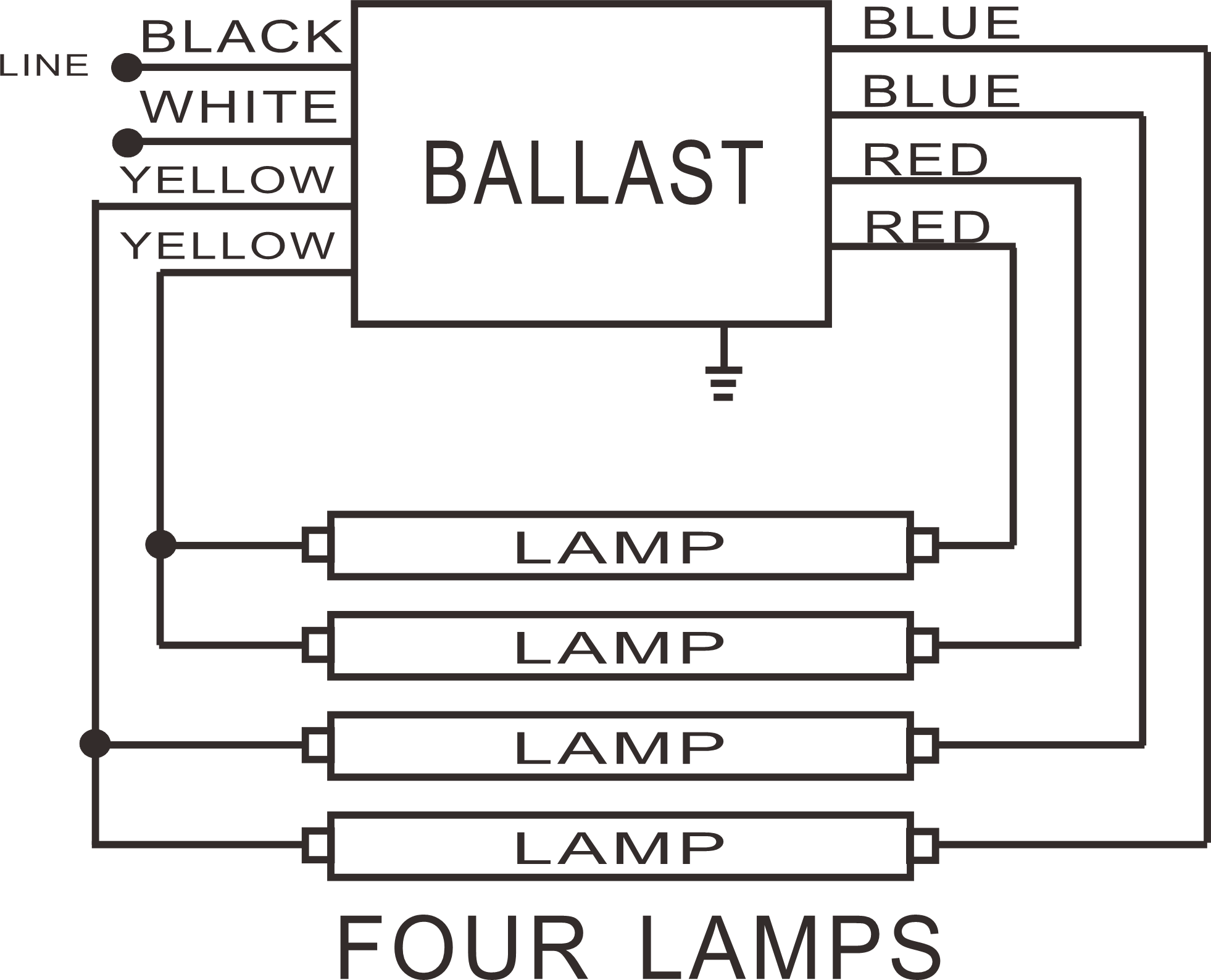

Wire Diagram

Four Lamps Three Lamps

Specification

Ballast Type Electronic
Starting Method Instant Start
Lamp connection Parallel
Input Voltage 120-277V,  347V
Input Frequency 50/60HZ, 60HZ
Warranty 5 Years TC≦75˚C 3 Years 75˚C≦TC≦90˚C

Certification



EPQ-314T5M AM103

Download

EPQ-321T5M AM103

Download

EPQ-324T5M AM103

Download

EPQ-328T5M AM103

Download

EPQ-A14T5M AM103

Download

EPQ-A21T5M AM103

Download

EPQ-A24T5M AM103

Download

EPQ-A28T5M AM103

Download
