Features
– Universal input voltage 120-277, 120-347V, 347Vac
– Adjust output current (power) by external resistor
– PFC, Flicker Free, Isolated design
– 3-in-1 Dimming (PWM, 0-10V, Resistance)
– Open/Short/Over-Voltage/Over Temp. protection
– 2kV to 6kV surge protection
– Suitable for UL dry and damp location
– 5 years warranty
Slim Series Overview (40W-93W)
| Model Name | Voltage VAC(Input) | Power W(Output) | Current mA (Output) | Voltage V (Output) | Efficiency %(Output) | Dimension(mm) | File |
| RAC1100S40DL | 120-277 | 40 | 600-1100 | 25-42 / 27-55 | 88 | 303*30*22 / 314*34*27.5 | Download |
| RAC1500S54DL | 120-277 | 54 | 900-1500 | 25-42 / 27-55 | 88 | 303*30*22 / 314*34*27.5 | Download |
| RAC2200S80DL | 120-277 | 80 | 1400-2200 | 25-42 / 27-55 | 88 | 395*38*28.5 | Download |
| R3C1100S40DL | 347 | 40 | 600-1100 | 25-42 / 27-55 | 88 | 303*30*22 / 314*34*27.5 | Download |
| R3C1500S54DL | 347 | 54 | 900-1500 | 25-42 / 27-55 | 88 | 303*30*22 / 314*34*27.5 | Download |
| R3C2200S80DL | 347 | 80 | 1400-2200 | 25-42 / 27-55 | 88 | 395*38*28.5 | Download |
| MC1100S46DL | 120-347 | 46 | 600-1100 | 25-42 | 87 | 303*30*22 / 314*34*27.5 | Download |
| MC1500S63DL | 120-347 | 63 | 900-1500 | 25-42 | 87 | 303*30*22 / 314*34*27.5 | Download |
| MC2200S93DL | 120-347 | 93 | 1500-2200 | 25-42 | 87 | 395*38*28.5 | Download |
Note: The output current can be customized in factory
Wire Diagram

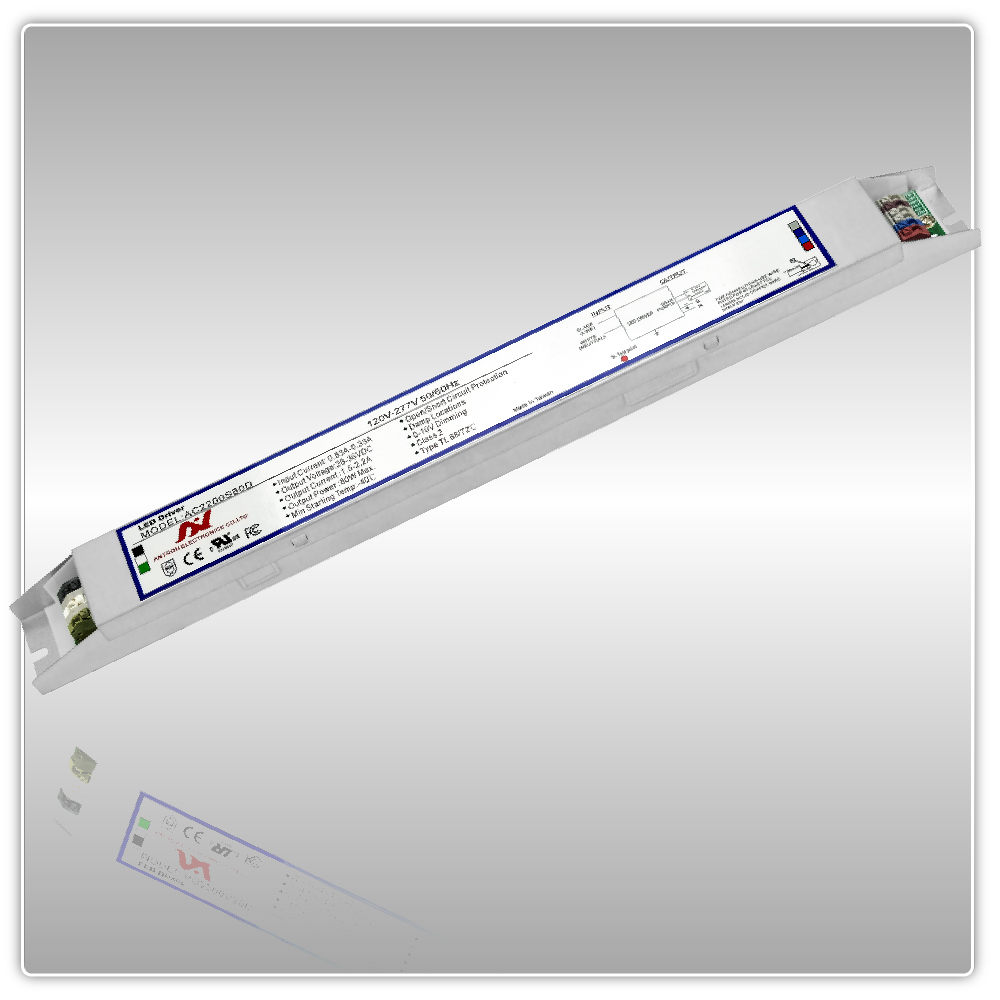

Our slim LED driver varies from 40W to 93W. Its slim and linear form factor is highly recommended for any slim lighting fixture, such as dimmable linear LED light, tri-proof light and vapor tight light. Antron provide a flexible solution for switching output current and wattage – resistor-set design. It can adjust output current/wattage by an external resistor or potentiometer. With adjustable output current/power design, you will have easier inventory control. Moreover, our linear driver has UL/cUL, CE and FCC certification. It will satisfy the need of your customer from USA and European market.
Universal Linear LED Driver
We have universal input voltage of standard 120-277V, 120-347V and 347V. Asia, North America, Pacific Islands, anywhere you are in the world, our slim driver will always fit in perfectly.
Ultra Slim LED Drivers with Reliable Protections and More
Our slim LED driver have PFC, ficker free and isolated design that protect your lighting fixtures and make the lighting environments more pleasant and comfortable without harm. Moreover, they are suitable for UL dry and damp location with IP30 rating and 5 years warranty.
All of our drivers have open/short/over-voltage/over-temperature protection. Moreover, 2kV to 6kV surge protection that protection your lighting fixtures with long-last lifespan. And secure a safe and comfortable working/living environment for all walks of life. Also, most models can meet Type TL, UL class 2 & class P power supply for LED lighting applications with higher safety concern.
All of our LED linear drivers have below 20% THD and over 0.9 power factor that give high efficiency up to 90%. The operation temperature ranges from -40℃ to 50℃, and the maximum T-case temperature is 90℃.
Lighting Driver with Dimmable Feature
All of our slim LED drivers have 3-in-1 dimming features (PWM, 1-10V, resistor). The linear technology LED driver will be the best choice for your dimmable lighting applications.
