Dual Channel LED Driver

Two Independent Constant-Current Outputs in One Compact Driver

ANTRON Dual Channel LED Drivers are designed to power two independent LED loads from a single constant-current driver. Instead of connecting multiple LED fixtures in parallel or installing two separate LED drivers, the dual-channel design provides two dedicated output channels in one compact solution.
With independent channel outputs, each LED load can be powered separately, helping simplify fixture design, improve system reliability, and reduce the space and component requirements of multi-lighting applications.
The series supports total output power from 24W to 44W, with universal 120–277Vac input models and 347Vac input models available for commercial and industrial lighting applications.

---

Why Choose a Dual Channel LED Driver?

Two Independent Output Channels

Each driver provides two separate constant-current output channels for powering two LED loads independently.
This design offers a more organized and flexible alternative to connecting multiple LED fixtures in parallel.

One Driver for Two LED Loads

A dual-channel LED driver can replace two individual drivers in suitable applications, helping reduce:

• System component count

• Installation space

• Wiring complexity

• Overall system cost

Improved Channel Isolation

Because the two LED outputs are independently designed, a problem affecting one channel can help prevent the same issue from directly affecting the other channel.
This makes the dual-channel architecture suitable for applications where independent LED load operation is important.

Model	Per Channel	Best For
AC350D12D	12W	Linear Fixture
AC450D15D	15W	Office Lighting
AC350D18D	18W	Architectural Lighting
AC700D22D	22W	Commercial Fixture

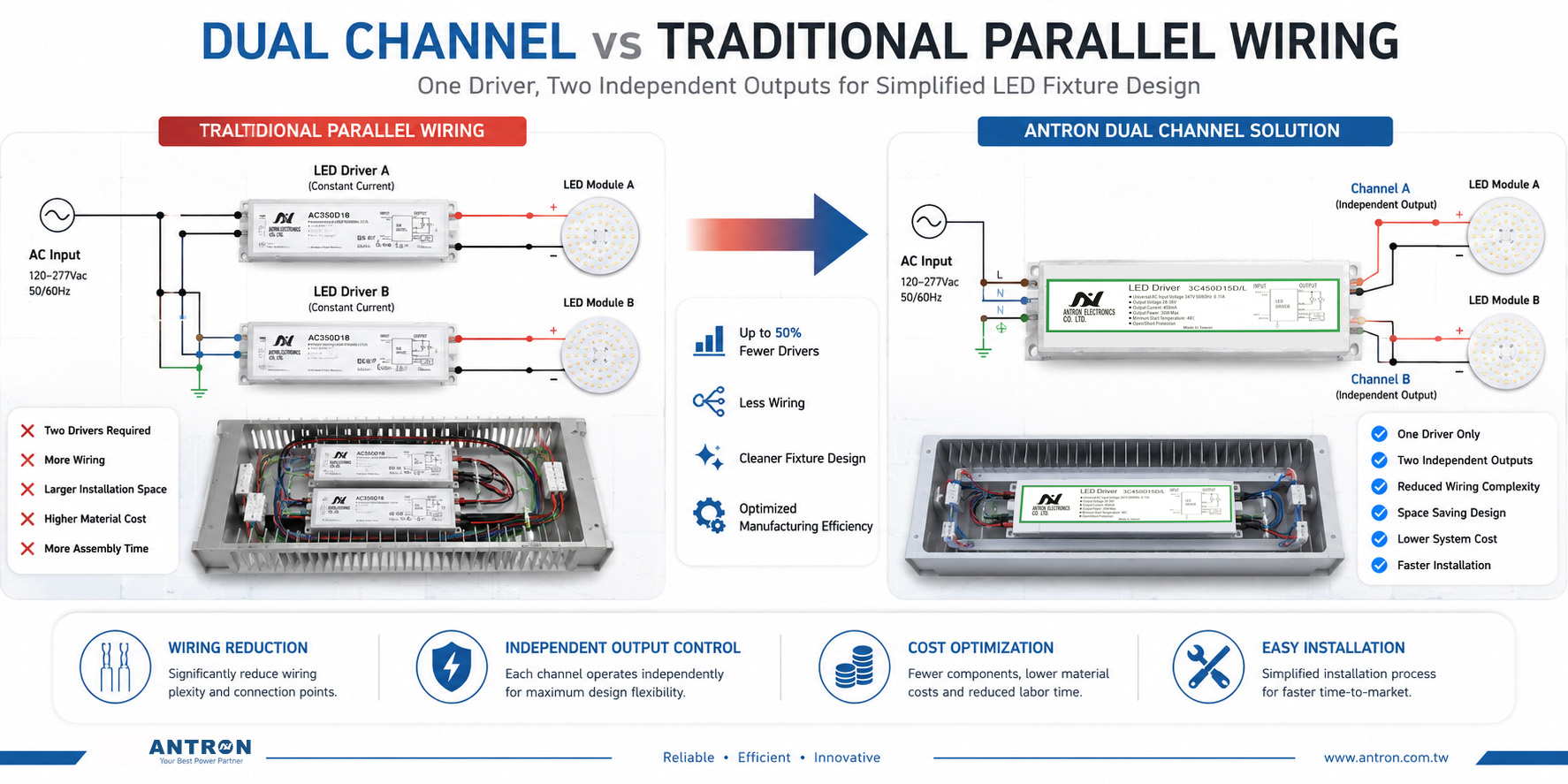

Dual Channel vs Single Channel LED Driver

Feature	Single Channel	Dual Channel
LED Loads	1	2
Driver Quantity	2 Drivers Required	1 Driver Only
Wiring Complexity	Higher	Lower
Installation Space	Larger	Smaller
System Cost	Higher	Lower
Independent Output	No	Yes

---



---

Flexible 120–277Vac and 347Vac Input

The Dual Channel LED Driver series is available with input voltage options for a wide range of commercial and industrial lighting systems.

Available Input Options

120–277Vac

Suitable for a wide range of standard commercial and architectural lighting systems.

347Vac

Designed for lighting systems requiring 347Vac input voltage, commonly used in selected commercial and industrial applications.

---

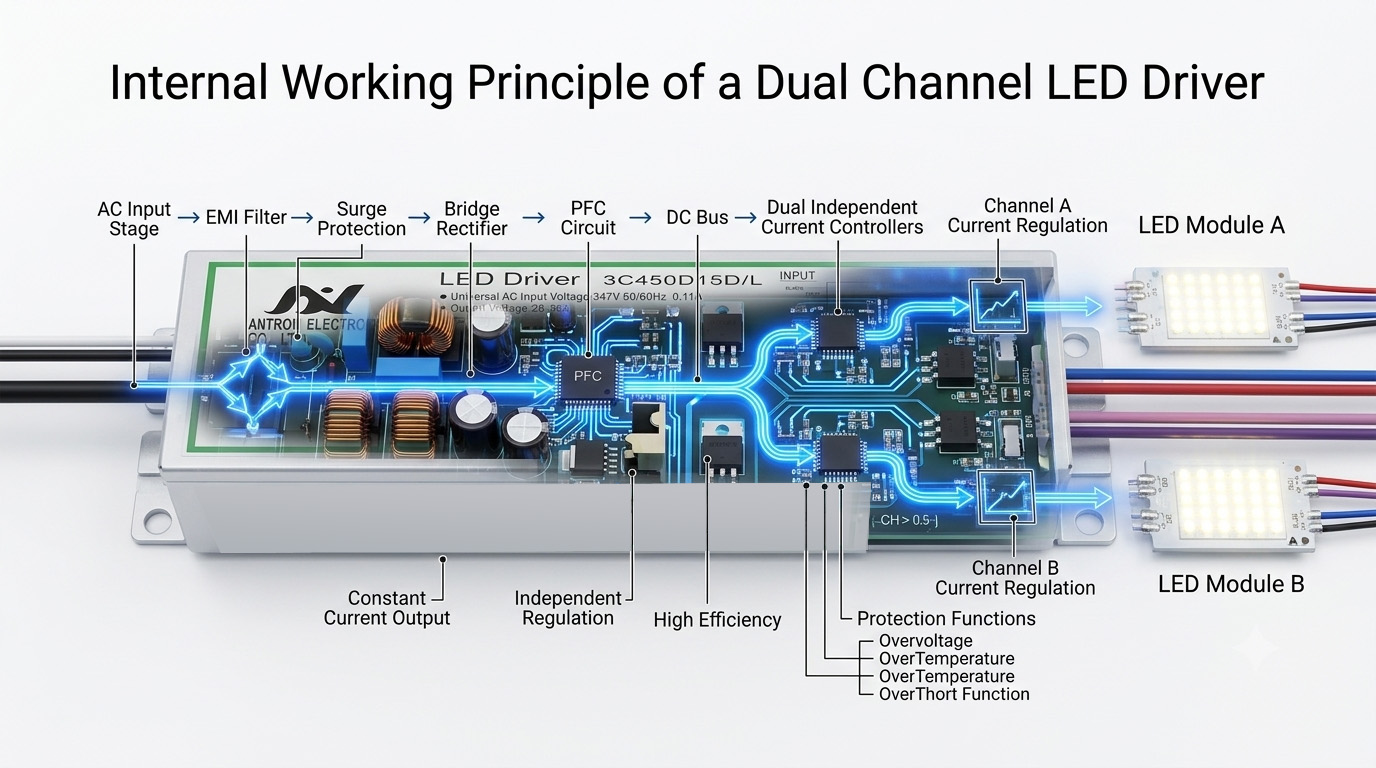

Designed for Reliable LED Lighting Performance

ANTRON Dual Channel LED Drivers integrate several key power and protection functions into a compact LED power supply solution.

PFC Design

Power Factor Correction helps improve input power utilization and supports more efficient system operation.

Flicker-Free Design

The flicker-free design helps provide more comfortable lighting for commercial, architectural, and indoor lighting environments.

Isolated Output Design

The isolated design provides additional electrical separation between the input and output sections for improved system safety.

Surge Protection

Depending on the model, surge protection is available from 2kV to 6kV to help protect the LED driver and connected lighting equipment from transient voltage events.

---

Built-In Protection Functions

ANTRON Dual Channel LED Drivers include multiple protection functions to help protect the driver and connected LED loads.

• Open-Circuit Protection

• Short-Circuit Protection

• Over-Voltage Protection

• Over-Temperature Protection

• Surge Protection

These protection functions help improve the reliability and durability of LED lighting systems in demanding operating environments.

---

Compact Form Factors for Flexible Fixture Design

Different models are available in multiple form factors to support different LED fixture designs and installation requirements.
The compact driver dimensions make the series suitable for applications where available installation space is limited.
>For OEM and ODM projects, output current and product specifications can be customized according to project requirements.

---

Typical Applications

ANTRON Dual Channel LED Drivers are suitable for applications requiring two independent LED outputs from a single driver.

Commercial Lighting

For commercial fixtures requiring two independently powered LED loads.

Architectural Lighting

Suitable for lighting systems requiring flexible control of multiple LED lighting sections.

Indoor LED Fixtures

A compact solution for LED fixtures with two independent LED modules.

Multi-Light LED Systems

Useful for applications where multiple LED loads need to be powered from a single driver.

OEM and ODM Lighting Projects

Custom output current and product configurations are available for qualified lighting manufacturers and project requirements.

---

Key Specifications

• Power Factor: >0.9

• THD: <20%

• Surge Protection: 2kV–6kV, depending on model

• Operating Temperature: -40°C to +50°C

• Maximum T-case Temperature: 90°C

• Warranty: 5 Years

---

Frequently Asked Questions

What is a dual channel LED driver?

A dual channel LED driver is a constant-current LED driver with two independent output channels. It can power two separate LED loads from one driver.

What is the advantage of using two independent channels?

Two independent channels provide a more organized solution for powering multiple LED loads. They can help reduce wiring complexity and may reduce the need for installing two separate LED drivers.

Can one channel operate if the other channel fails?

The two channels are independently designed. However, actual system behavior depends on the specific driver model and application wiring. Please refer to the relevant datasheet for detailed protection and operating characteristics.

Can the output current be customized?

Yes. Output current customization is available for qualified OEM and ODM projects, subject to project requirements and minimum order conditions.

Does the Dual Channel LED Driver support dimming?

Selected models support 3-in-1 dimming using PWM, 0–10V, or resistance control. Please check the individual model specification for details.

---

Need a Custom Dual Channel LED Driver?

ANTRON provides LED driver solutions for commercial, industrial, and OEM/ODM lighting applications.
If you require a specific output current, output voltage, form factor, input voltage, or customized LED driver configuration, contact our engineering team to discuss your project requirements.

Contact ANTRON for Dual Channel LED Driver Solutions

Built-In 3-in-1 Dimming

Selected ANTRON Dual Channel LED Drivers support flexible 3-in-1 dimming control:

• PWM Dimming

• 0–10V Dimming

• Resistance Dimming

This allows lighting manufacturers and system designers to select the appropriate dimming method for different control systems and applications.
