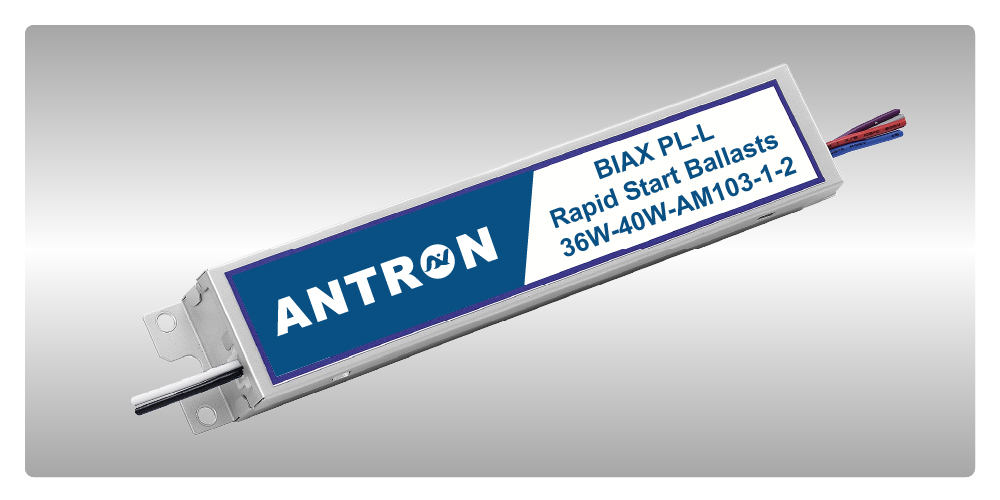

BIAX PL-L Rapid Start Ballasts 36W-40W_AM103_1-2 Lamps
Case: AM103 Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm
Features
● One or Two lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
BIAX PL-L Rapid Start Ballasts 36W-40W_AM103_1-2 Lamps Series Overview
| Model Name | Starting Method | Input voltage | Lamp type | Rated Lamp Watts | No. of Lamp |
| ESD-339PBXMS | Rapid Start | 347V | PLL39W | 39W | 2 |
| 1 | |||||
| PLL36W | 36W | 2 | |||
| 1 | |||||
| ESD-340PBXMS | Rapid Start | 347V | PLL40W | 40W | 2 |
| 1 | |||||
| PLL39W | 39W | 2 | |||
| 1 | |||||
| PLL36W | 36W | 2 | |||
| 1 | |||||
| ESD-A39PBXMS | Rapid Start | 120-277V | PLL39W | 39W | 2 |
| 1 | |||||
| PLL36W | 36W | 2 | |||
| 1 | |||||
| ESD-A40PBXMS | Rapid Start | 120-277V | PLL40W | 40W | 2 |
| 1 | |||||
| PLL39W | 39W | 2 | |||
| 1 | |||||
| PLL36W | 36W | 2 | |||
| 1 |

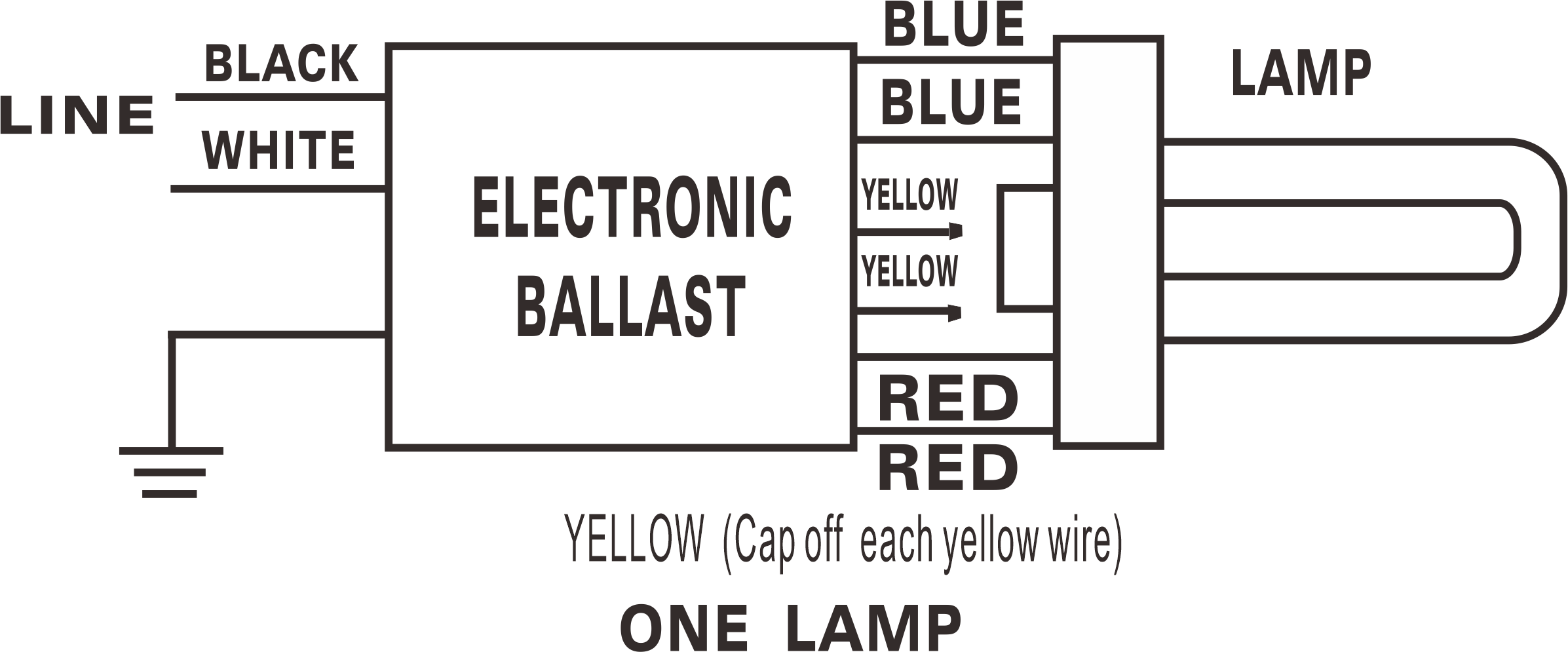

Wire Diagram
Two Lamps
One Lamp
