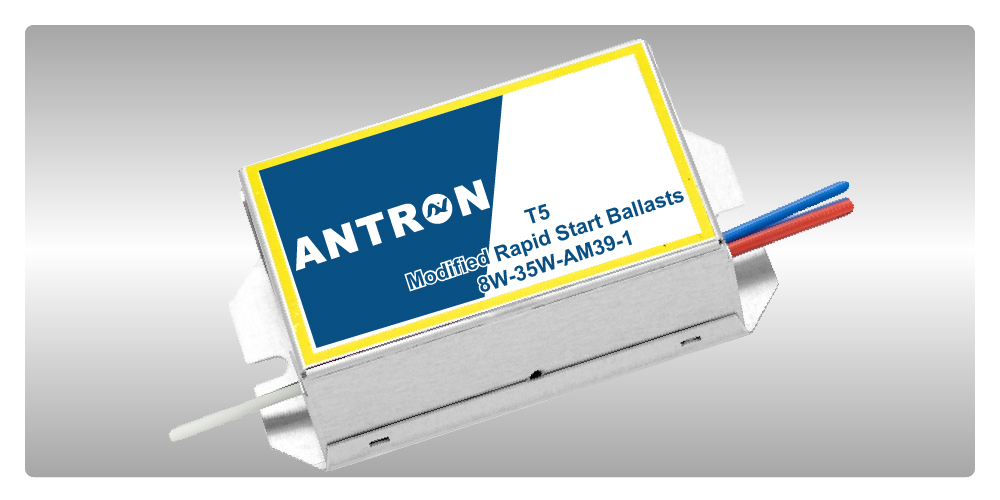

T5 Modified Rapid Start Ballasts 8W-35W_AM39_1 Lamp

Case: AM39  Size: L: 9.9 cm W: 5.2 cm H: 3.0 cm

Description

Features

● One lamp
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● Normal Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected

T5 Modified Rapid Start Ballasts 8W-35W_AM39_1 Lamp Series Overview

Model Name Starting Method Input voltage Lamp type Rated Lamp Watts No. of Lamp
CSS-108T5NPF Modified Rapid Start 120V 8W T5 8W 1
CSS-114T5NPF Modified Rapid Start 120V 14W T5 14W 1
CSS-121T5NPF Modified Rapid Start 120V 21W T5 21W 1
CSS-124T5NPF Modified Rapid Start 120V 24W T5 24W 1
CSS-128T5NPF Modified Rapid Start 120V 28W T5 28W 1
CSS-135T5NPF Modified Rapid Start 120V 35W T5 35W 1
CSS-714T5NPF Modified Rapid Start 277V 14W T5 14W 1
CSS-721T5NPF Modified Rapid Start 277V 21W T5 21W 1
CSS-724T5NPF Modified Rapid Start 277V 24W T5 24W 1
CSS-728T5NPF Modified Rapid Start 277V 28W T5 28W 1
CSS-735T5NPF Modified Rapid Start 277V 35W T5 35W 1

Wire Diagram

Specification

Ballast Type Electronic
Starting Method Modified Rapid Start
Lamp connection Series
Input Voltage 120V, 277V
Input Frequency 50/60HZ
Warranty 5 Years TC≦75˚C 3 Years 75˚C≦TC≦90˚C

Certification



CSS-108T5NPF AM39

Download

CSS-114T5NPF AM39

Download

CSS-121T5NPF AM39

Download

CSS-124T5NPF AM39

Download

CSS-128T5NPF AM39

Download

CSS-135T5NPF AM39

Download

CSS-714T5NPF AM39

Download

CSS-721T5NPF AM39

Download

CSS-724T5NPF AM39

Download

CSS-728T5NPF AM39

Download

CSS-735T5NPF AM39

Download
