T5 Instant Start Ballasts 14W-35W_AM103_2-3 Lamps

Case: AM103  Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm

Description

Features

● Two or Three lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected

T5 Instant Start Ballasts 14W-35W_AM103_2-3 Lamps Series Overview

Model Name Starting Method Input voltage Lamp type Rated Lamp Watts No. of Lamp
EPT-314T5M Instant Start 347V 14W T5 14W 3
2
EPT-321T5M Instant Start 347V 21W T5 21W 3
2
14W T5 14W 3
2
EPT-324T5M Instant Start 347V 24W T5 24W 3
2
EPT-328T5M Instant Start 347V 28W T5 28W 3
2
EPT-335T5M Instant Start 347V 35W T5 35W 3
2
28W T5 28W 3
2
EPT-A14T5M Instant Start 120-277V 14W T5 14W 3
2
EPT-A21T5M Instant Start 120-277V 21W T5 21W 3
2
14W T5 14W 3
2
EPT-A24T5M Instant Start 120-277V 24W T5 24W 3
2
EPT-A28T5M Instant Start 120-277V 28W T5 28W 3
2
EPT-A35T5M Instant Start 120-277V 35W T5 35W 3
2
28W T5 28W 3
2

Wire Diagram

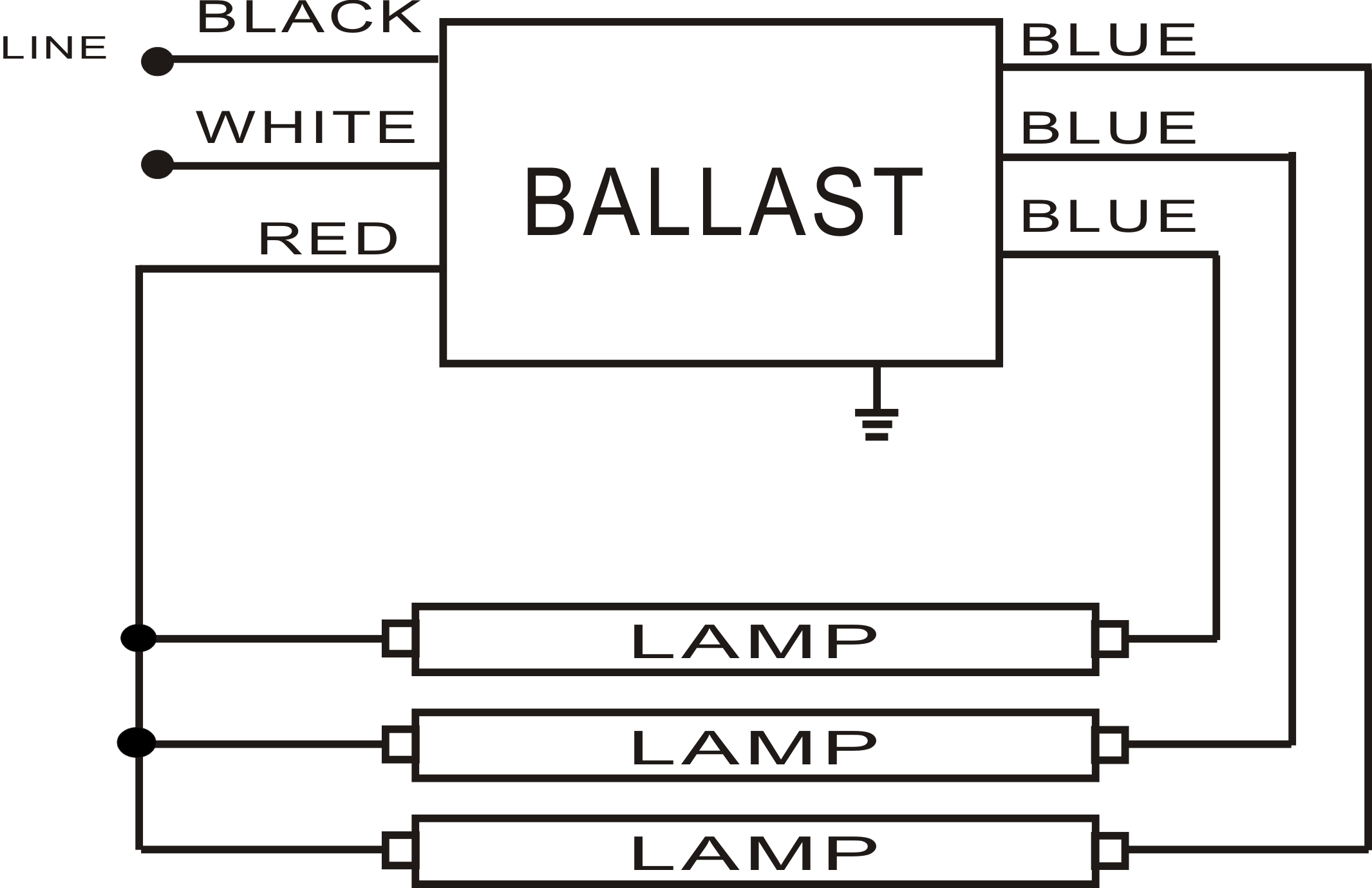

Three Lamps

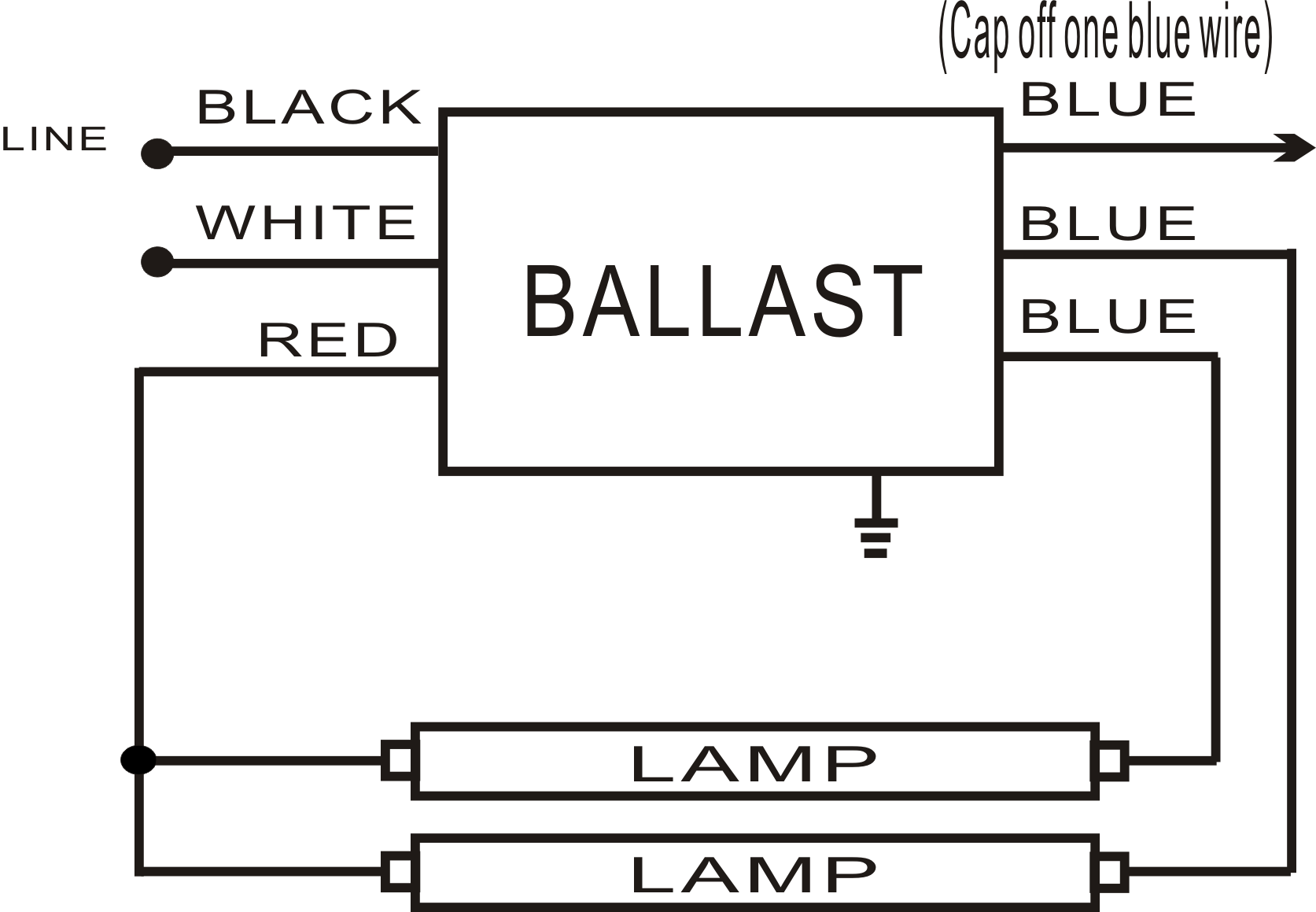

Two Lamps

Specification

Ballast Type Electronic
Starting Method Instant Start
Lamp connection Parallel
Input Voltage 120-277V,  347V
Input Frequency 50/60HZ, 60HZ
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C

Certification
