T5 Program Start Ballasts 14W-55W_AM34_1-2 Lamps

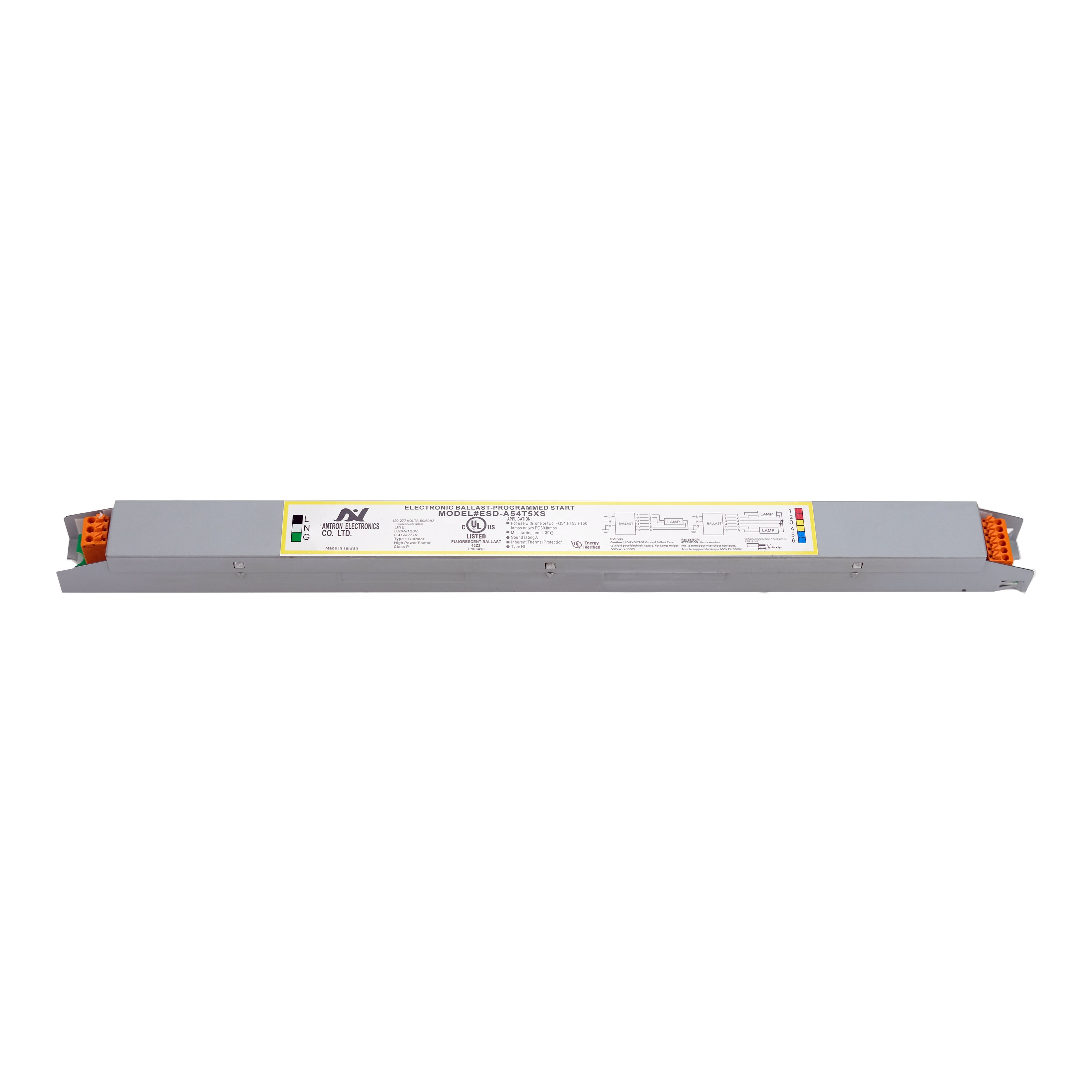

Case: AM34 Size: L: 29.2 cm W: 3.4 cm H: 2.7 cm

Categories: Fluorescent Ballast, T5 Ballast, T5 Program Start

Description
Spec Sheets

Features

● One or Two lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
● DOE Energy Verified

T5 Program Start Ballasts 14W-55W_AM34_1-2 Lamps Series Overview

Model Name	Starting Method	Input voltage	Lamp type	Rated Lamp Watts	No. of Lamp
ESD-314T5S	Program Start	347V	14W T5	14W	2
					1
ESD-324T5S	Program Start	347V	24W T5	24W	2
					1
ESD-335T5S	Program Start	347V	35W T5	35W	2
					1
			28W T5	28W	2
					1
ESD-354T5S	Program Start	347V	54W T5HO	54W	2
					1
			54W T5HO/ES(49W)	49W	2
					1
			54W T5HO/ES(47W)	47W	2
					1
			55W PLL	55W	2
					1
			39W T5HO	39W	2
			50W PLL	50W	2
					1
ESD-A14T5S	Program Start	120-277V	14W T5	14W	2
					1
ESD-A21T5S	Program Start	120-277V	21W T5	21W	2
					1
			14W T5	14W	2
					1
ESD-A24T5S	Program Start	120-277V	24W T5	24W	2
					1
ESD-A28T5S	Program Start	120-277V	28W T5	28W	2
					1
ESD-A35T5S	Program Start	120-277V	35W T5	35W	2
					1
			28W T5	28W	2
					1
ESD-B21T5S	Program Start	347V	21W T5	21W	2
					1
			14W PLL	14W	2
					1
ESD-B28T5S	Program Start	347V	28W T5	28W	2
					1

Wire Diagram

Two Lamps

One Lamps
