CCT Tunable LED Driver for Tunable White Lighting

Dual-Channel LED Drivers for Independent Color Temperature and Brightness Control

ANTRON CCT Tunable LED Drivers are designed for tunable white lighting systems that require independent control of color temperature and brightness.
With dual-channel output, the driver can separately control warm white and cool white LED channels, enabling smooth CCT adjustment for modern commercial, residential, architectural, and smart lighting applications.
The CCT Tunable LED Driver series supports multiple control methods, including DIP switch selection, two independent dimmers, and Tuya APP control via Wi-Fi. Depending on the model, input voltage options include 120–277VAC, 120–347VAC, and 347VAC, with output power from 25W to 60W.
With flexible control options, high-efficiency operation, multiple protection functions, and customizable output current, ANTRON provides a reliable CCT LED driver solution for OEM, ODM, and professional lighting fixture manufacturers.

How Does a CCT Tunable LED Driver Work?

A CCT Tunable LED Driver controls two LED channels independently: a warm white channel and a cool white channel.
By adjusting the output of each channel, the lighting system can change its color temperature from warm white to cool white while also adjusting brightness.

Dual-Channel Tunable White Control

Warm White LED Channel
↓
Cool White LED Channel
↓
Dual-Channel CCT LED Driver
↓
Adjustable Color Temperature and Brightness

This dual-channel architecture enables tunable white lighting systems to create different lighting environments throughout the day, from warm, comfortable lighting for relaxation to cooler, brighter lighting for work and productivity.
The result is a more flexible lighting solution for commercial, residential, architectural, and smart lighting applications.

Three CCT Control Options

1. CCT Control via DIP Switch

Simple and Reliable CCT Selection

The DIP switch version provides a straightforward way to select different color temperatures without requiring an external controller.

Key Benefits

• Simple installation

• No external controller required

• Easy color temperature selection

• Reliable operation

• Ideal for standard LED fixtures

Recommended for

• Commercial LED lighting

• LED panel lights

• Ceiling lights

• Standard tunable white fixtures

2. CCT Control via Two Dimmers

Independent CCT and Brightness Control

The two-dimmer version provides independent control of the warm white and cool white LED channels.
This allows users to adjust the balance between the two channels to achieve the desired color temperature and brightness.

Key Benefits

• Independent dual-channel control

• Adjustable color temperature

• Adjustable brightness

• Supports PWM, 0–10V, and resistance dimming

• Flexible integration with lighting control systems

Recommended for

• Commercial lighting

• Architectural lighting

• Professional LED fixtures

• Advanced lighting control systems

3. CCT Control via Tuya APP

Smart CCT Control Through Wi-Fi

The Tuya APP version enables smart control of color temperature and brightness through a Wi-Fi-connected lighting system.
Users can adjust the lighting environment through a compatible smart control platform.

Key Benefits

• Wi-Fi-based control

• Smart lighting integration

• Adjustable CCT and brightness

• Suitable for connected lighting systems

• Ideal for residential and commercial applications

Recommended for

• Smart home lighting

• Connected LED fixtures

• Smart commercial lighting

• Modern residential lighting systems

CCT Tunable LED Driver Selection Guide

Key Technical Features

ANTRON CCT Tunable LED Drivers are designed for reliable operation in professional LED lighting systems.

• Dual-channel output for independent warm white and cool white LED control

• Multiple CCT control methods including DIP switch, dual dimmers, and Tuya APP

• 3-in-1 dimming supporting PWM, 0–10V, and resistance control

• Flicker-free design for more comfortable lighting environments

• Power Factor Correction (PFC) for improved power quality

• Isolated design for enhanced system safety

• 2kV–6kV surge protection depending on model

• Open-circuit, short-circuit, over-voltage, and over-temperature protection

• Up to 90% efficiency

• Power factor greater than 0.9

• Operating temperature from -40°C to +50°C

• 5-year warranty





Applications

CCT Tunable LED Driver Applications

>ANTRON CCT Tunable LED Drivers are suitable for a wide range of tunable white lighting applications.

Commercial Lighting

For offices, retail stores, hotels, and commercial buildings that require flexible color temperature control.

Residential Smart Lighting

For smart homes and residential lighting fixtures requiring adjustable brightness and color temperature.

LED Panel Lights

Suitable for tunable white LED panel lights and commercial ceiling lighting systems.

Architectural Lighting

Provides flexible color temperature adjustment for architectural and decorative lighting applications.

Hospitality Lighting

Supports different lighting environments for hotels, restaurants, and hospitality spaces.

Human-Centric Lighting

Tunable white LED systems can help create different lighting environments throughout the day by adjusting color temperature and brightness.

Why Choose ANTRON CCT Tunable LED Drivers?

Flexible Control Options

Choose from DIP switch, two-dimmer, or Tuya APP control according to your lighting system requirements.

Dual-Channel Architecture

Independently control warm white and cool white LED channels for flexible CCT adjustment.

Wide Input Voltage Options

Models are available for 120–277VAC, 120–347VAC, and 347VAC applications.

Customizable Output Current

Selected models support factory-customized output current to meet specific LED fixture requirements.

Reliable Protection

Multiple protection functions help protect the LED driver and lighting system during abnormal operating conditions.

OEM and ODM Support

ANTRON provides customized LED driver solutions for professional lighting manufacturers and OEM/ODM projects.

Frequently Asked Questions

What is a CCT Tunable LED Driver?

A CCT Tunable LED Driver is an LED power supply designed to control two LED channels, typically warm white and cool white. By adjusting the output of each channel, users can change the color temperature and brightness of the lighting fixture.

---

What is the difference between a CCT LED Driver and a regular LED Driver?

A standard LED driver typically controls one LED output channel. A CCT Tunable LED Driver uses two independently controlled output channels, allowing the lighting fixture to adjust between warm and cool white color temperatures.

---

Can a CCT LED Driver also control brightness?

Yes. ANTRON CCT Tunable LED Drivers support control of both color temperature and brightness, depending on the control method and model.

---

What control methods are available?

ANTRON offers CCT control solutions using:

• DIP switches
• Two external dimmers
• Tuya APP via Wi-Fi

---

What is the difference between CCT and RGB lighting?

CCT lighting adjusts the color temperature of white light, typically from warm white to cool white. RGB lighting combines red, green, and blue LEDs to create different colors.
CCT Tunable LED Drivers are designed specifically for adjustable white lighting applications.

---

Can the output current be customized?

Yes. The output current can be customized at the factory for selected models, depending on project requirements.

Need a Customized CCT Tunable LED Driver?

ANTRON provides CCT Tunable LED Driver solutions for professional LED lighting manufacturers and OEM/ODM projects.
Whether you need a specific output current, input voltage, control method, or mechanical design, our engineering team can help develop a suitable tunable white LED driver solution for your application.
Contact ANTRON to discuss your CCT LED Driver requirements.

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA (Output)	Voltage V (Output)	Efficiency %(Output)	Dimension(mm)	File

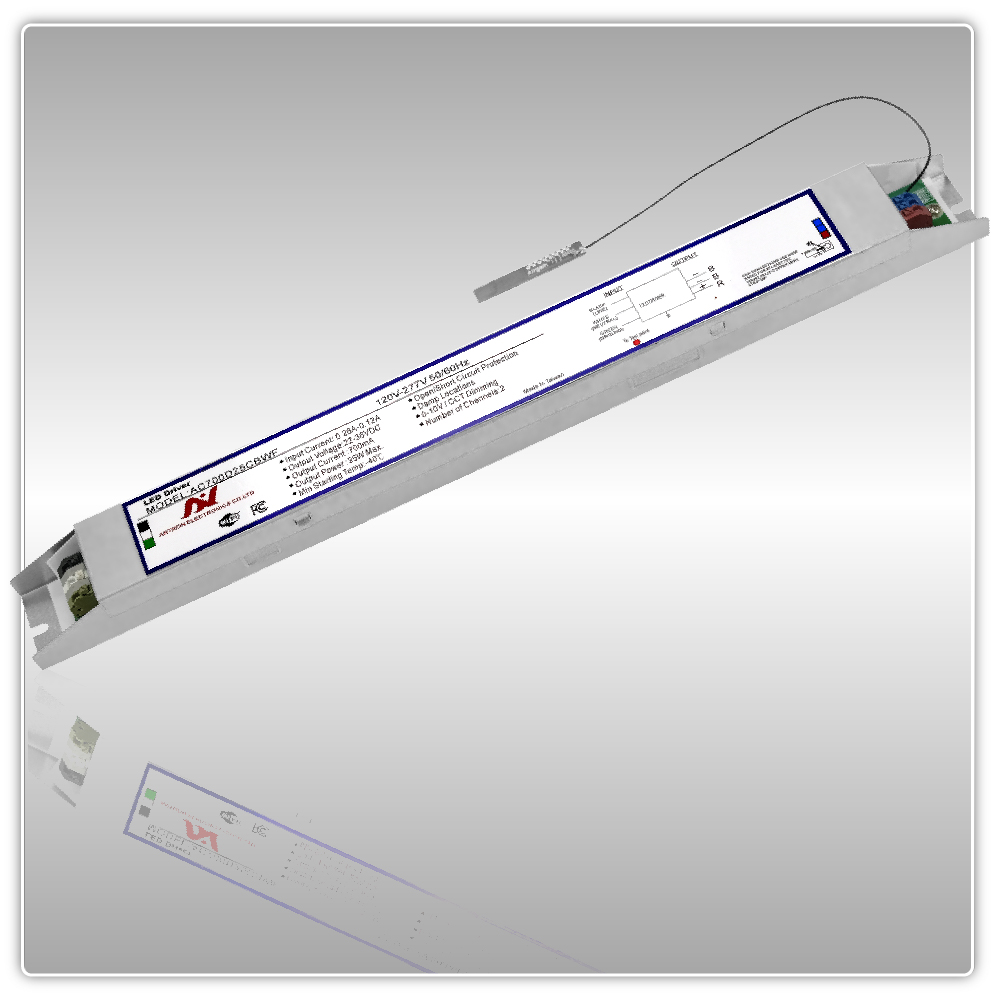

AC700D25CBWFL	120-277	25	700	22-36	87	395*38*28.5	Download

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA (Output)	Voltage V (Output)	Efficiency %(Output)	Dimension(mm)	File
3C700D30CBL	120-277	30	700	27-45	85	241*43*30.5	Download
3C1400D60CBL	120-277	60	1400	25-43	86	241*43*30.5	Download
AC700D30CBL	347	30	700	27-45	85	241*43*30.5	Download
AC1400D60CBL	347	60	1400	25-43	86	241*43*30.5	Download
MC700D30CBL	120-347	30	700	27-45	85	241*43*30.5	Download
MC1400D60CBL	120-347	60	1400	25-43	86	241*43*30.5	Download

Model Name	Voltage VAC(Input)	Power W(Output)	Current mA (Output)	Voltage V (Output)	Efficiency %(Output)	Dimension(mm)	File
AC1050S42DSCBLF	120-277	42	1050/900/700	25-42	87	206*87*34.5	Download
AC1250S50DSCBLF	120-277	50	1250/1050/90	25-42	87	206*87*34.5	Download
AC1500S60DSCBLF	120-277	60	1500/1250/1050	25-42	87	206*87*34.5	Download
3C1050S42DSCBLF	347	42	1050/900/700	25-42	87	206*87*34.5	Download
3C1250S50DSCBLF	347	50	1250/1050/900	25-42	87	206*87*34.5	Download
3C1500S60DSCBLF	347	60	1500/1250/1050	25-42	87	206*87*34.5	Download
MC1000S40DSCBLF	120-347	40	1000/900/700	25-42	87	206*87*34.5	Download
MC1200S48DSCBLF	120-347	48	1200/1050/90	25-42	87	206*87*34.5	Download

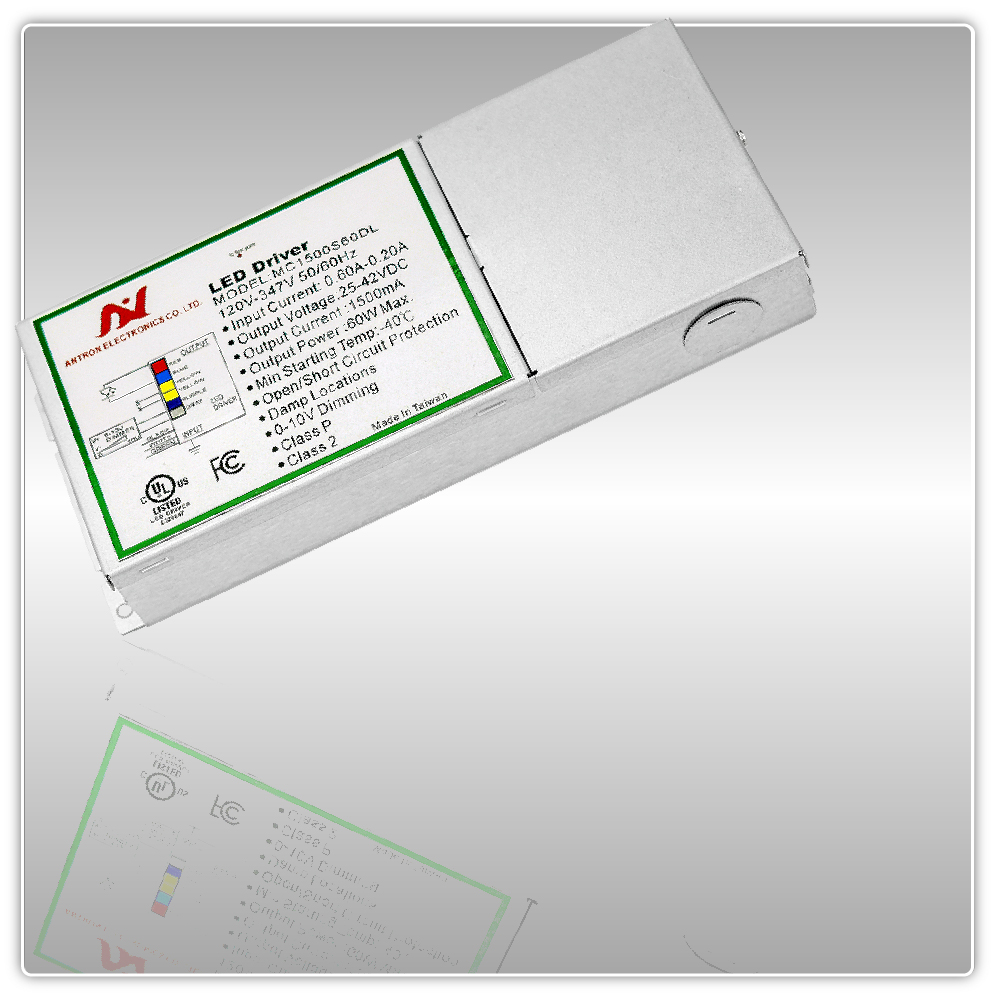

MC1500S60DSCBLF	120-347	60	1500/1250/1050	25-42	87	206*87*34.5	Download

Note: The output current can be customized in factory

Tuya APP
