T8 Program Start Ballasts 48W-96W_AM94_1-2 Lamps
Case: AM94 Size: L: 32.5 cm W: 6.4 cm H: 2.95 cm
Features
● One or Two Lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
● NRCan Energy Verified
T8 Program Start Ballasts 48W-96W_AM94_1-2 Lamps Series Overview
| Model Name | Starting Method | Input voltage | Lamp type | Rated Lamp Watts | No. of Lamp |
| ESS-386T8HOSX2 | Program Start | 347V | F96T8HO | 86W | 2 |
| 1 | |||||
| F72T8HO | 65W | 2 | |||
| 1 | |||||
| F60T8HO | 55W | 2 | |||
| 1 | |||||
| F48T8HO | 44W | 2 | |||
| 1 | |||||
| ESS-A86T8HOSX2 | Program Start | 120-277V | F96T8HO | 86W | 2 |
| 1 | |||||
| F72T8HO | 65W | 2 | |||
| 1 | |||||
| F60T8HO | 55W | 2 | |||
| 1 | |||||
| F48T8HO | 44W | 2 | |||
| 1 |

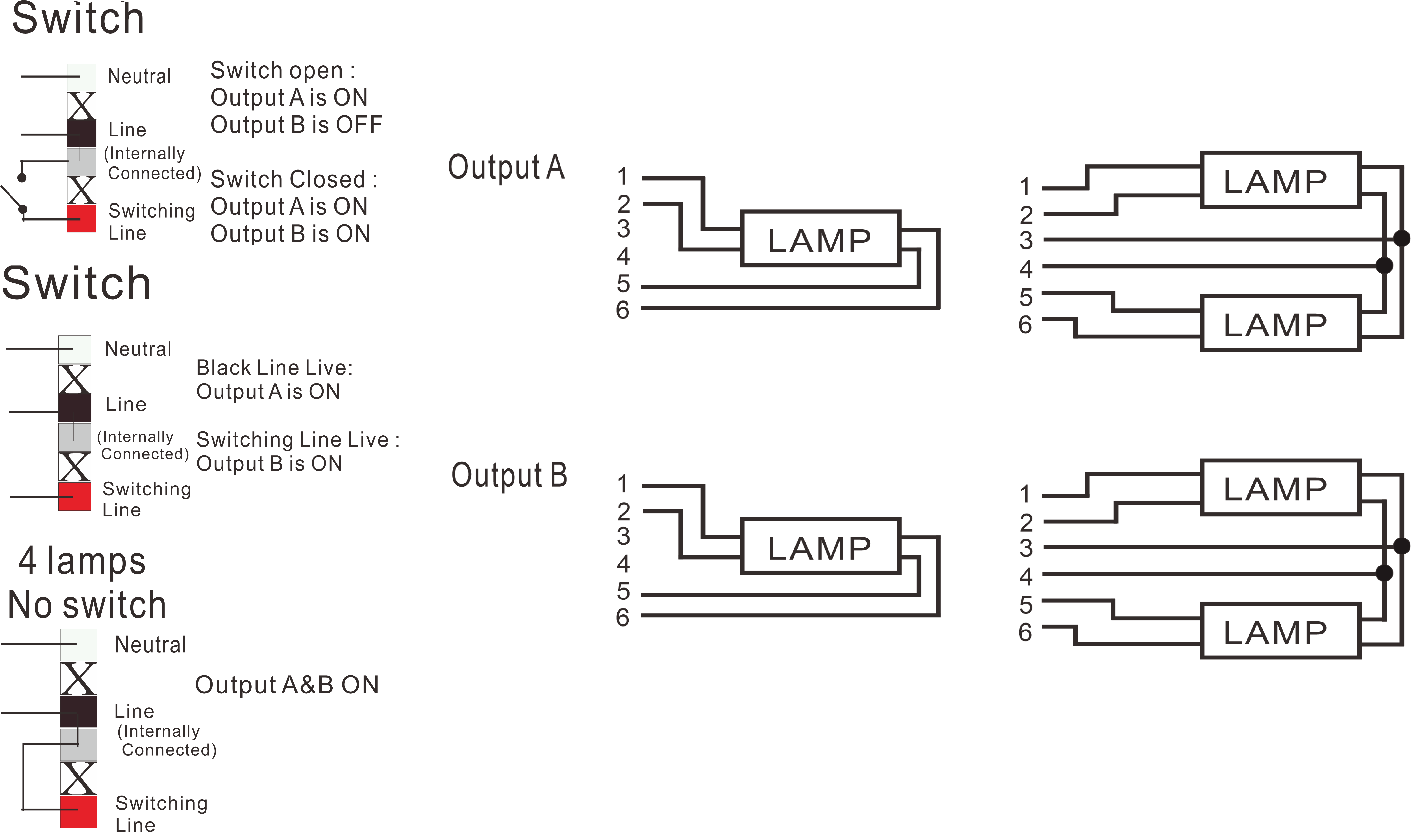

Wire Diagram
