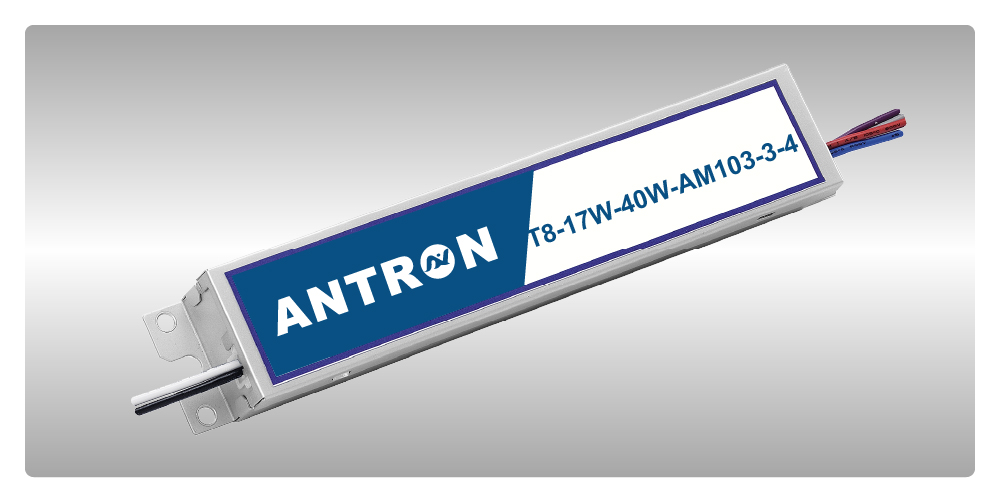

2020-06-22T8 Rapid Start Ballasts 17W-40W_AM103_3-4 Lamps
Case: AM103 Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm
Features
● Three or Four lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
● DOE Energy Verified
T8 Rapid Start Ballasts 17W-40W_AM103_3-4 Lamps Series Overview
| Model Name | Starting Method | Input voltage | Lamp type | Rated Lamp Watts | No. of Lamp |
| ESPQ-332T8MS | Rapid Start | 347V | F32T8 | 32W | 4 |
| 3 | |||||
| F25T8 | 25W | 4 | |||
| 3 | |||||
| F17T8 | 17W | 4 | |||
| 3 | |||||
| F40T8 | 40W | 3 | |||
| F32T8/ES(30W) | 30W | 4 | |||
| 3 | |||||
| F32T8/ES(28W) | 28W | 4 | |||
| 3 | |||||
| F32T8/ES(25W) | 25W | 4 | |||
| 3 | |||||
| ESPQ-A32T8MS | Rapid Start | 120-277V | F32T8 | 32W | 4 |
| 3 | |||||
| F25T8 | 25W | 4 | |||
| 3 | |||||
| F17T8 | 17W | 4 | |||
| 3 | |||||
| F40T8 | 40W | 3 | |||
| F32T8/ES(30W) | 30W | 4 | |||
| 3 | |||||
| F32T8/ES(28W) | 28W | 4 | |||
| 3 | |||||
| F32T8/ES(25W) | 25W | 4 | |||
| 3 |
Wire Diagram
Four Lamps
Three Lamps
