CCT Tunable LED Driver_via APP 25W AM145
Case: AM145 Size: L: 39.5 cm W: 3.8 cm H: 2.85 cm
Features
– Universal input voltage 120-277 Vac
– Dual channel output with independently dimming control
– 2kV to 6kV surge protection
– 3-in-1 Dimming (PWM, 0-10V, Resistance)
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– 5 years warranty
CCT Tunable Series Overview (25W)
Adjust CCT and Brightness with APP
|
Model Name
|
Output Channel
|
Input Voltage
|
Output Power
|
Output Current
|
Output Voltage
|
Efficiency
|
AC700D25CBWFL
|
2
|
120-277Vac
|
25W
|
700mA
|
22-36V
|
87%
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: The output current can be customized in factory
Tuya APP

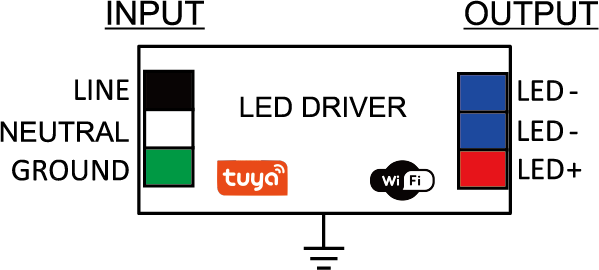

Wire Diagram
