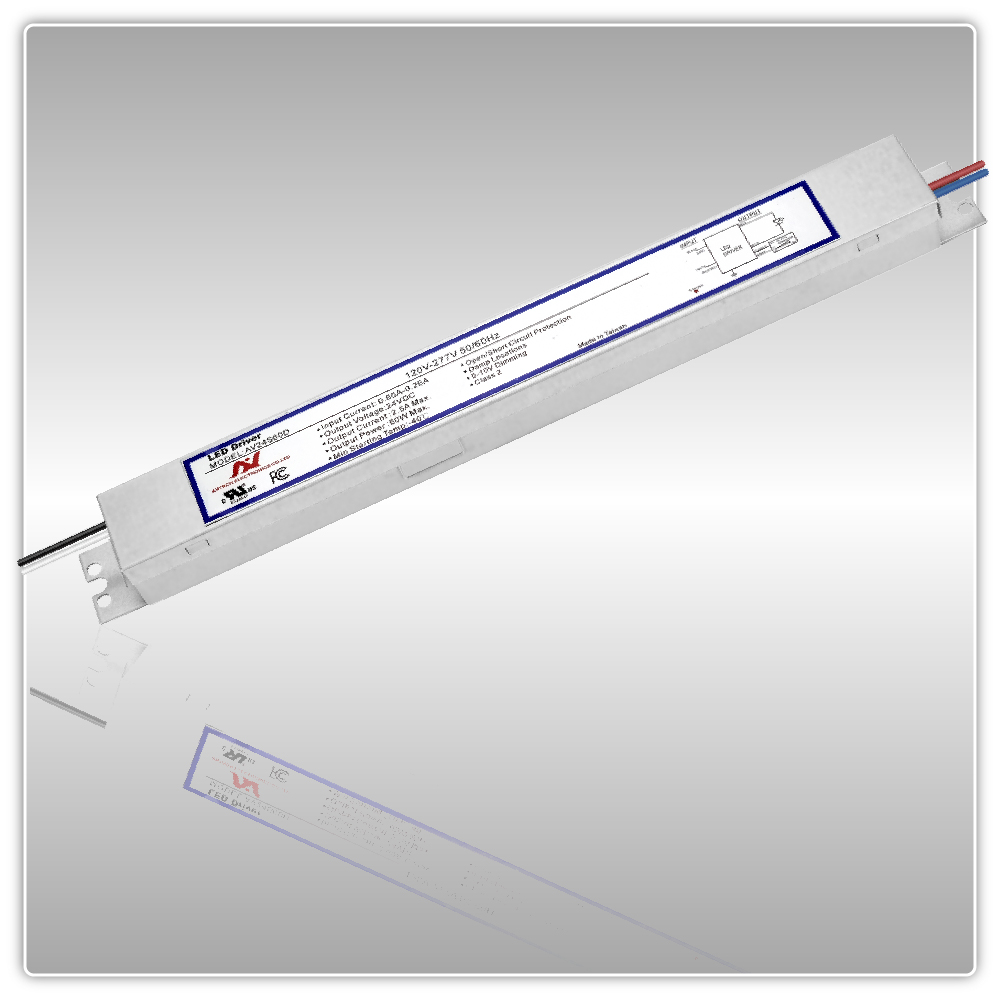

Dual Channel LED Driver 44W AM24L

Case: AM24L  Size: L: 32.5 cm W: 3.4 cm H: 2.9 cm



– Universal input voltage 120-277Vac
– 2 individual outputs design
– PFC, Flicker Free, Isolated design
– 3-in-1 Dimming (PWM, 0-10V, Resistance)
– 2kV to 6kV surge protection
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– 5 years warranty

Dual Channel Series Overview (24W-44W)

Model Name Output Channel Input Voltage Output Power Output Power
Per Channel
Output Current Output Voltage Efficiency
AC350D12D 2 120-277Vac 24W 12W 350mA 20-34V 82%
AC450D15D 2 120-277Vac 30W 15W 450mA 20-33V 82%
AC350D18D 2 120-277Vac 36W 18W 350mA 31-51V 83%
AC700D22D 2 120-277Vac 44W 22W 700mA 19-31V 83%
3C350D12D 2 347Vac 24W 12W 350mA 20-34V 82%
3C450D15D 2 347Vac 30W 15W 450mA 20-33V 82%

Note: The output current can be customized in factory

Wire Diagram



Output Model Constant Current
Input Voltage 120-277V
Input Frequency 50/60 Hz
Dimming 3 in 1 ( PWM, 1-10V, Resistance)
Dimming 1-100%
Surge Rating 2KV
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C


* Only “Made in Taiwan” products can meet TAA compliant.

AC700D22D AM24L
