BIAX PL-L Program Start Ballasts 80W-96W_AM24_1 Lamp
2020-07-02
BIAX PL-L Program Start Ballasts 80W-96W_AM94_1-2 Lamps
2020-07-02
BIAX PL-L Program Start Ballasts 32W-40W_AM24_1-2 Lamps
Case: AM24 Size: L: 32.5 cm W: 3.4 cm H: 2.75 cm
Features
● One or Two lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
BIAX PL-L Program Start Ballasts 32W-40W_AM24_1-2 Lamps Series Overview
| Model Name | Starting Method | Input voltage | Lamp type | Rated Lamp Watts | No. of Lamp |
| ESD-A40PBXS | Program Start | 120-277V | PLL40W | 40W | 2 |
| 1 | |||||
| PLL39W | 39W | 2 | |||
| 1 | |||||
| PLL36W | 36W | 2 | |||
| 1 | |||||
| PLT32W | 32W | 2 | |||
| 1 |

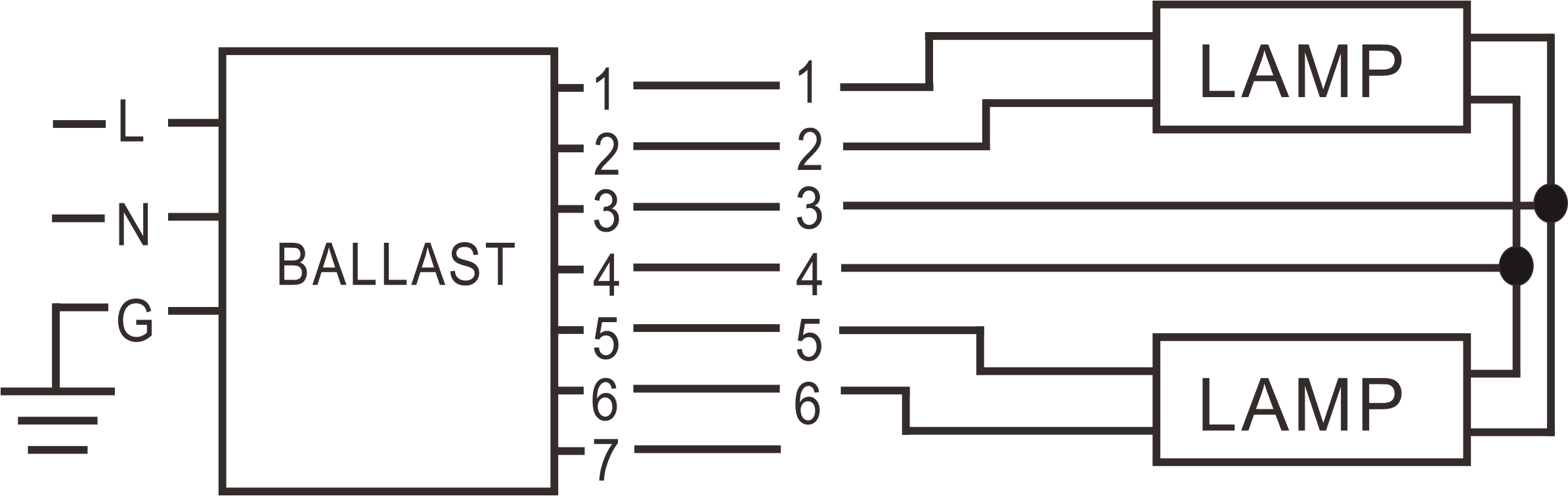

Wire Diagram
