T5 Program Start Ballasts 14W-58W_AM104_1-4 Lamps

Case: AM104 Size: L: 45 cm W: 4.3 cm H: 2.9 cm

Categories: Fluorescent Ballast, T5 Ballast, T5 Program Start

Description
Spec Sheets

Features

● Maximum Four lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
● DOE Energy Verified
● NRCan Energy Verified

T5 Program Start Ballasts 14W-58W_AM104_1-4 Lamps Series Overview

Model Name	Starting Method	Input voltage	Lamp type	Rated Lamp Watts	No. of Lamp
ESPQ-321T5S	Program Start	347V	21W T5	21W	4
					3
					2
					1
			14W T5	14W	4
					3
					2
					1
ESPQ-324T5S	Program Start	347V	24W T5	24W	4
					3
					2
					1
ESPQ-335T5S	Program Start	347V	35W T5	35W	4
					3
					2
					1
			28W T5	28W	4
					3
					2
					1
ESPQ-339T5S	Program Start	347V	39W T5	39W	4
					3
					2
					1
ESPQ-354T5S	Program Start	347V	54W T5	54W	4
					3
					2
					1
			54W T5/ES(49W)	49W	4
					3
					2
					1
			39W T5	39W	4
			55W PLL	55W	4
					3
					2
					1
			50W PLL	50W	4
					3
					2
					1
ESPQ-354T5S-S	Program Start	347V	54W T5	54W	4
					3
					2
					1
			54W T5/ES(49W)	49W	4
					3
					2
					1
			55W PLL	55W	4
					3
					2
					1
			39W T5	39W	4
			50W PLL	50W	4
					3
					2
					1
			58W T8	58W	4
					3
					2
					1
ESPQ-454T5S	Program Start	480V	F54T5	54W	4
					3
					2
					1
			F39T5	39W	4
			55W PLL	55W	4
					3
					2
					1
			50W PLL	50W	4
					3
					2
					1
ESPQ-A21T5S	Program Start	120-277V	21W T5	21W	4
					3
					2
					1
ESPQ-A24T5S	Program Start	120-277V	24W T5	24W	4
					3
					2
					1
ESPQ-A35T5S	Program Start	120-277V	35W T5	35W	4
					3
					2
					1
			28W T5	28W	4
					3
					2
					1
ESPQ-A39T5S	Program Start	120-277V	39W T5	39W	4
					3
					2
					1
ESPQ-A54T5S	Program Start	120-277V	54W T5	54W	4
					3
					2
					1
			54W T5/ES(49W)	49W	4
					3
					2
					1
			39W T5	39W	4
			55W PLL	55W	4
					3
					2
					1
			50W PLL	50W	4
					3
					2
					1
ESPQ-A54T5S-S	Program Start	120-277V	54W T5	54W	4
					3
					2
					1
			54W T5/ES(49W)	49W	4
					3
					2
					1
			55W PLL	55W	4
					3
					2
					1
			39W T5	39W	4
					2
			50W PLL	50W	4
					3
					2
					1
			58W T8	58W	4
					3
					2
					1

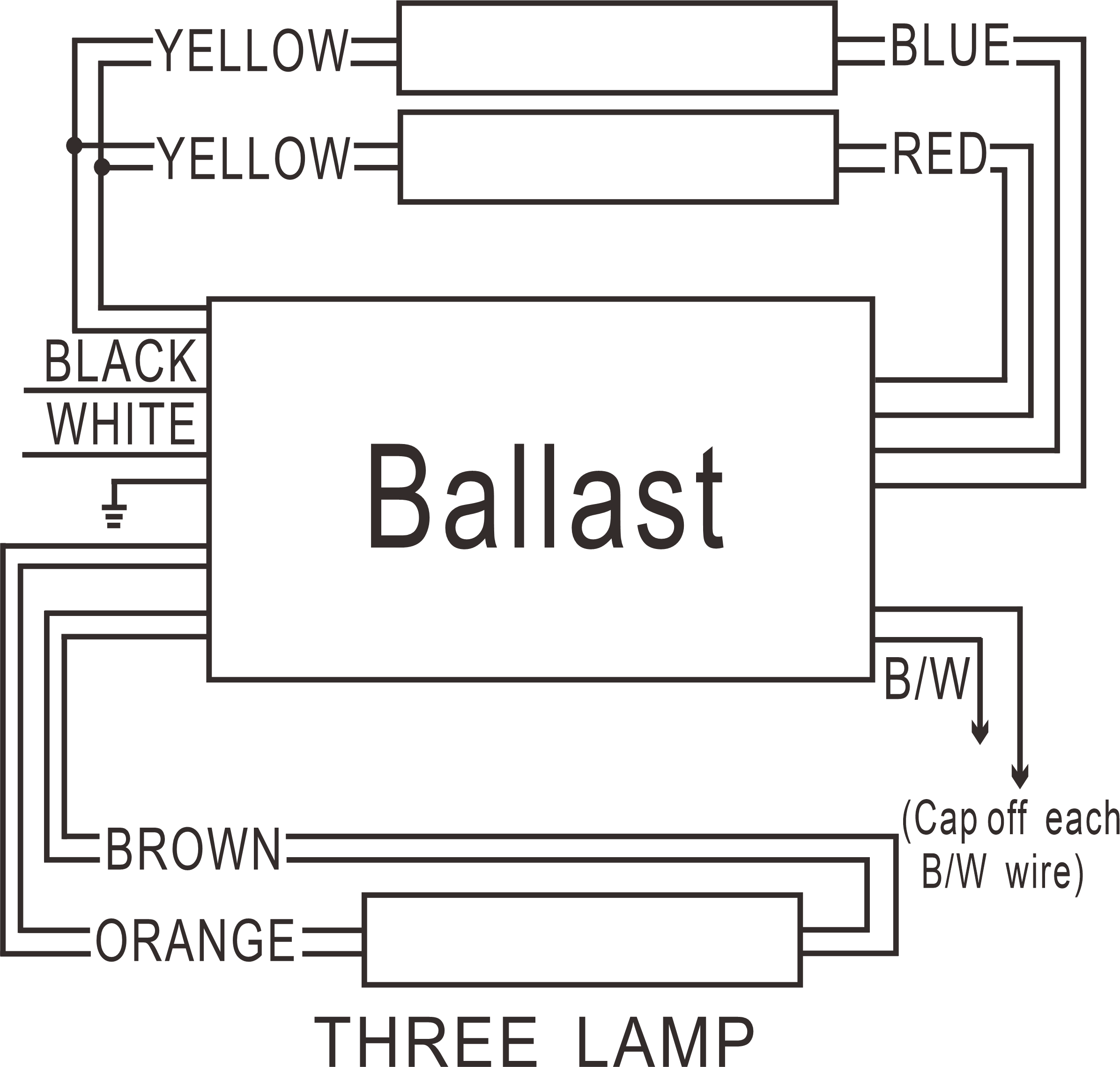

Wire Diagram

Four Lamps
