Current Selectable LED Driver 72W-75W AM14L

Case: AM14L  Size: L: 39.5 cm W: 3.8 cm H: 2.85 cm

Description

Features

– Universal input voltage 120-277, 120-347, 347Vac
– Adjust output current (power) by DIP switch
– Customized current (power) options available
– PFC, Flicker Free, Isolated design
– 3-in-1 Dimming (PWM, 0-10V, Resistance)
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– 5 years warranty

Current Selectable Series Overview (72W-150W)

Model Name Input Voltage Output Power Output Current Output Voltage Efficiency
AC2800S72D-D3 120-277Vac 72W 2800/2500/1800mA 16-26V 88%
AC700S75D-D3 120-277Vac 75W 700/550/350mA 64-107V 88%
AC2100S84D-D3 120-277Vac 84W 2100/1750/1400mA 24-40V 88%
AC1600S91D-D3 120-277Vac 91W 1600/1400/1050mA 34-56V 88%
AC2450S98D-D4 120-277Vac 98W 2450/2100/1750/1400mA 24-40V 88%

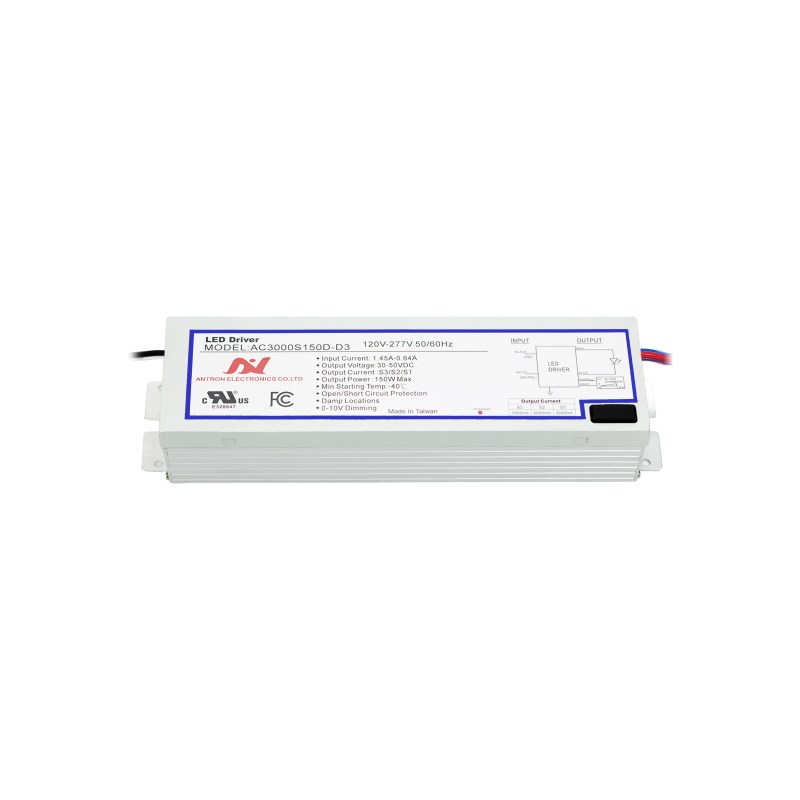

AC3000S150D-D3 120-277Vac 150W 3000/2000/1000mA 30-50V 88%
3C2800S72D-D3 347Vac 72W 2800/2500/1800mA 16-26V 88%
3C2100S84D-D3 347Vac 84W 2100/1750/1400mA 24-40V 88%
3C2450S98D-D4 347Vac 98W 2450/2100/1750/1400mA 24-40V 88%
3C3000S150D-D3 347Vac 150W 3000/2000/1000mA 30-50V 88%

Note: The output current can be customized in factory

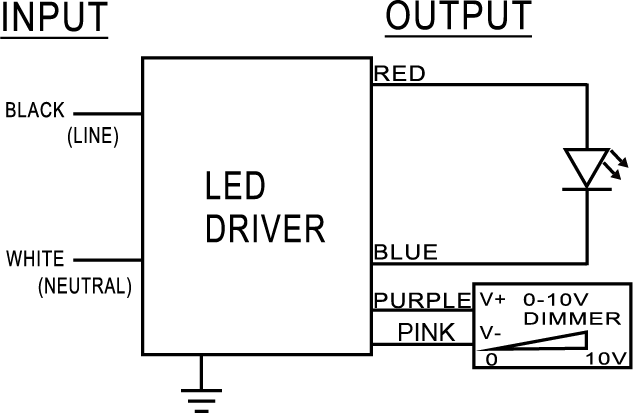

Wire Diagram

Specification

Output Model Constant Current
Input Voltage 120-277V, 120-347V, 347V
Input Frequency 50/60 Hz
Dimming 3 in 1 ( PWM, 1-10V, Resistance)
Dimming 1-100%
Surge Rating 2KV
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C

Certification



3C2800S72D-D3 AM14L

Download

AC700S75D-D3 AM14L

Download

AC2800S72D-D3 AM14L

Download
