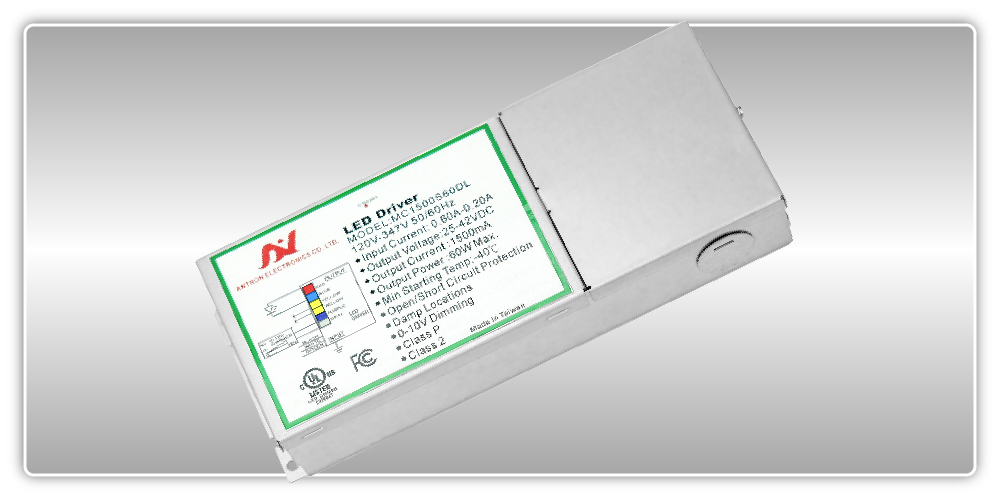

Current Selectable LED Driver 48W-50W AM123

Case: AM123  Size: L: 16.5 cm W: 7.3 cm H: 3 cm

Description

Features

– Universal input voltage 120-277, 120-347, 347Vac
– Adjust output current (power) by DIP switch
– Customized current (power) options available
– PFC, Flicker Free, Isolated design
– 3-in-1 Dimming (PWM, 0-10V, Resistance)
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– 5 years warranty

Current Selectable Series Overview (40W-60W)

Model Name Input Voltage Output Power Output Current Output Voltage Efficiency
MC1000S40DL-D3 120-347Vac 40W 1000/700/500mA 24-40V 87%
MC1200S48DL-D3 120-347Vac 48W 1200/1050/700mA 24-40V 87%
MC1500S60DL-D3 120-347Vac 60W 1500/1250/700mA 24-40V 88%
AC1050S42DL-D3 120-277Vac 42W 1050/700/500mA 24-40V 87%
AC1250S50DL-D3 120-277Vac 50W 1250/1050/700mA 24-40V 87%
AC1500S60DL-D3 120-277Vac 60W 1500/1250/900mA 24-40V 88%
3C1050S42DL-D3 347Vac 42W 1050/700/500mA 24-40V 87%
3C1250S50DL-D3 347Vac 50W 1250/1050/700mA 24-40V 87%
3C1500S60DL-D3 347Vac 60W 1500/1250/900mA 24-40V 88%

Note: The output current can be customized in factory

Wire Diagram

Specification

Output Model Constant Current
Input Voltage 120-277V, 120-347V, 347V
Input Frequency 50/60 Hz
Dimming 3 in 1 ( PWM, 1-10V, Resistance)
Dimming 1-100%
Surge Rating 2KV
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C

Certification



3C1250S50DL-D3 AM123

Download

AC1250S50DL-D3 AM123

Download

MC1200S48DL-D3 AM123

Download
