28W HV CC Emergency LED Driver Conduit AM185
Case: AM185 Size: L: 33.8 cm W: 6.2 cm H: 3.8 cm
Supplied with hoses and plastic plates.
- Features
– Universal input voltage 120-277, 120-347Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality LiFePO4 battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warrant

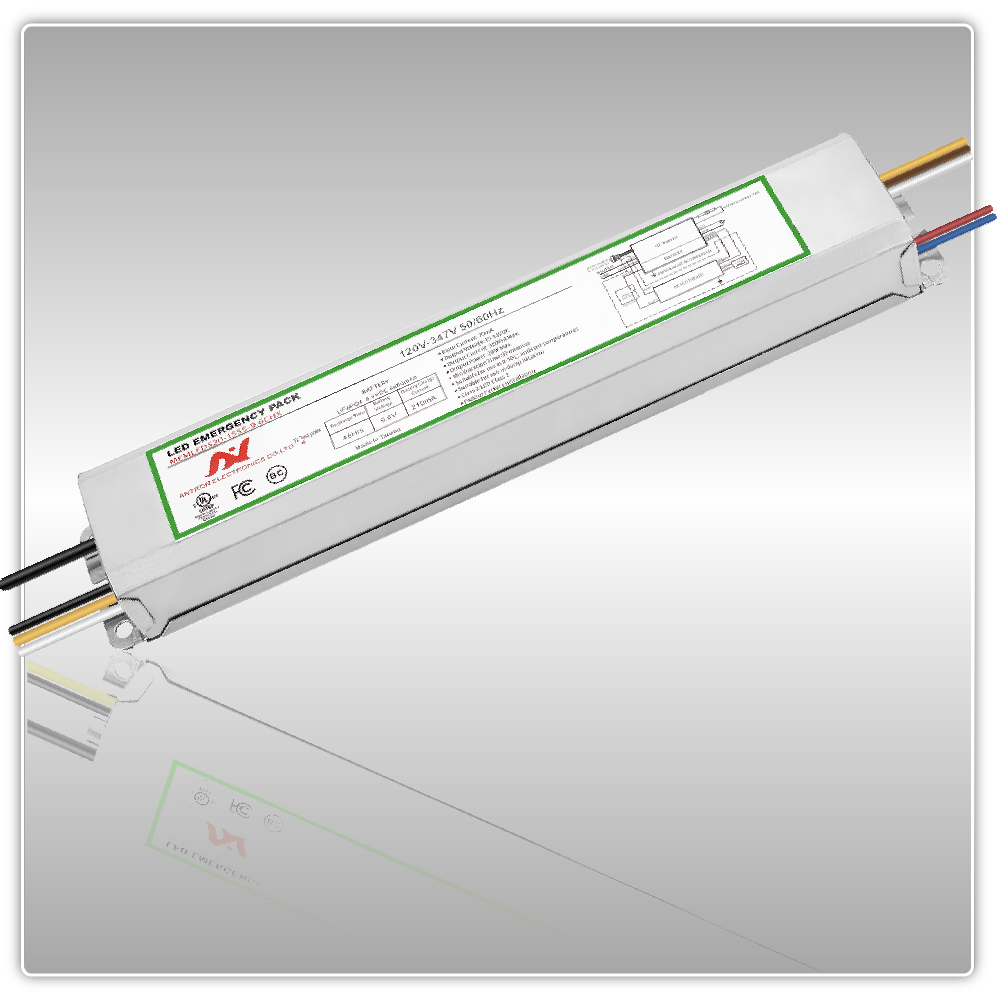

28W High Voltage Constant Current Emergency LED Driver AM185 Overview
Model Name |
Input Voltage |
Output Power |
Output Current |
Output Voltage |
Flexible Conduit |
Dimension |
EMLEDS28‐80130‐9.6CHXNB-FT |
120-277Vac |
28W |
230mA |
80-130V |
Double |
338*62*38mm |
MEMLEDS28‐80130‐9.6CHXNB-FT |
120-347Vac |
28W |
230mA |
80-130V |
Double
|
338*62*38mm |
Note: Output current can be factory customized.
Wire Diagram
