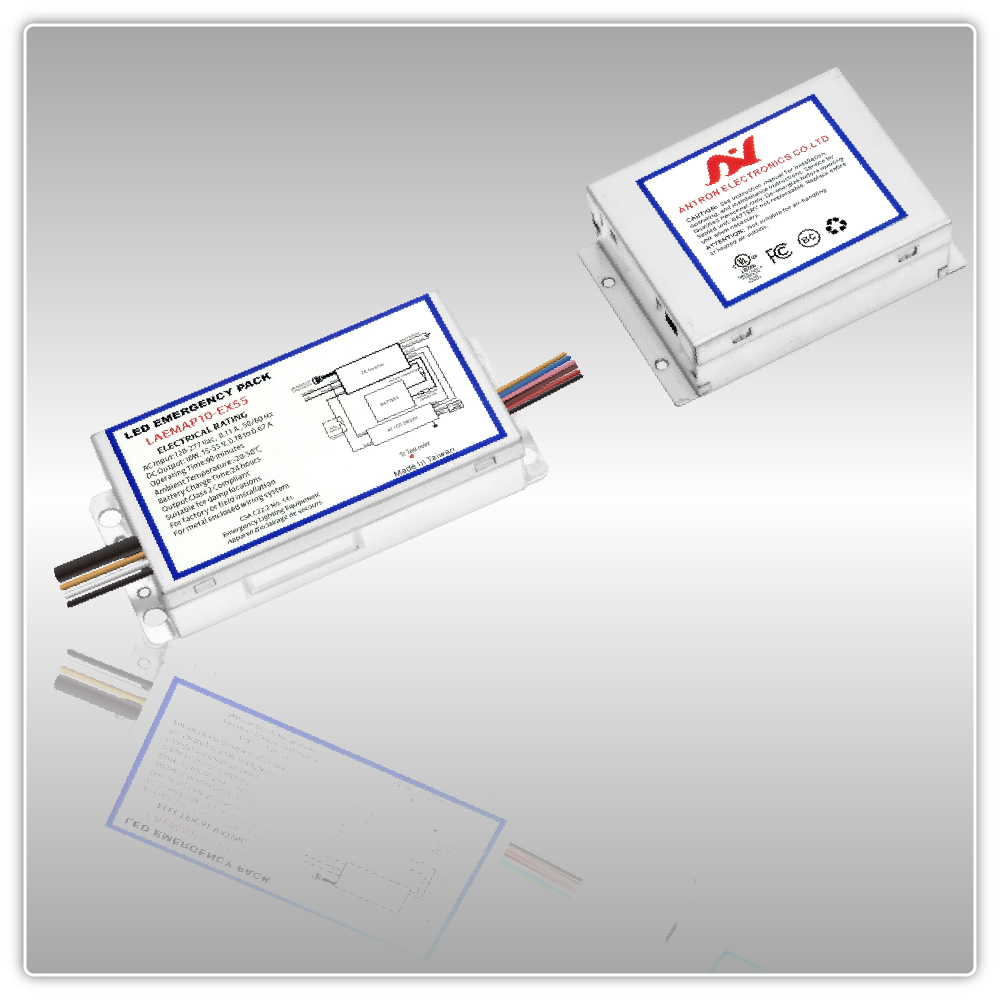

10W External Battery Cold Emergency LED Driver AM111+AM136

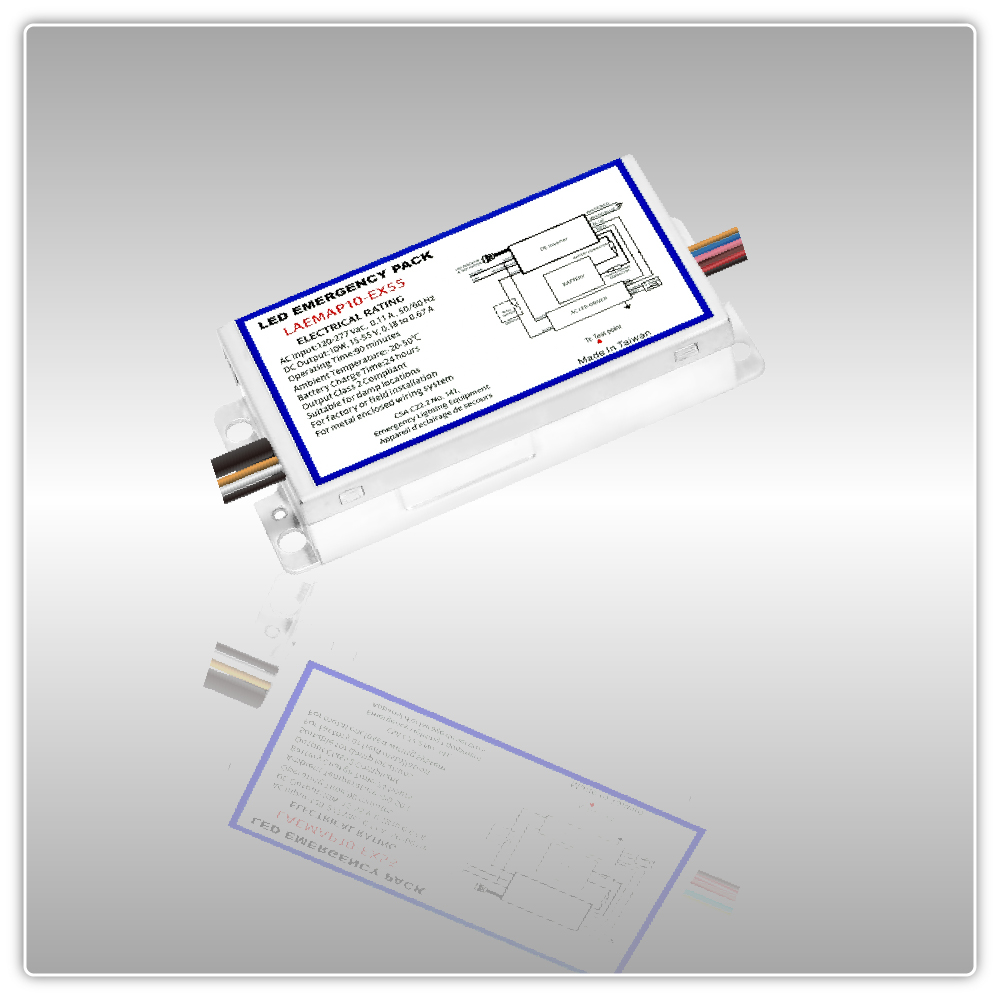

DC Inverter Case: AM111  Size: L: 13.3 cm W: 6.3 cm H: 3 cm

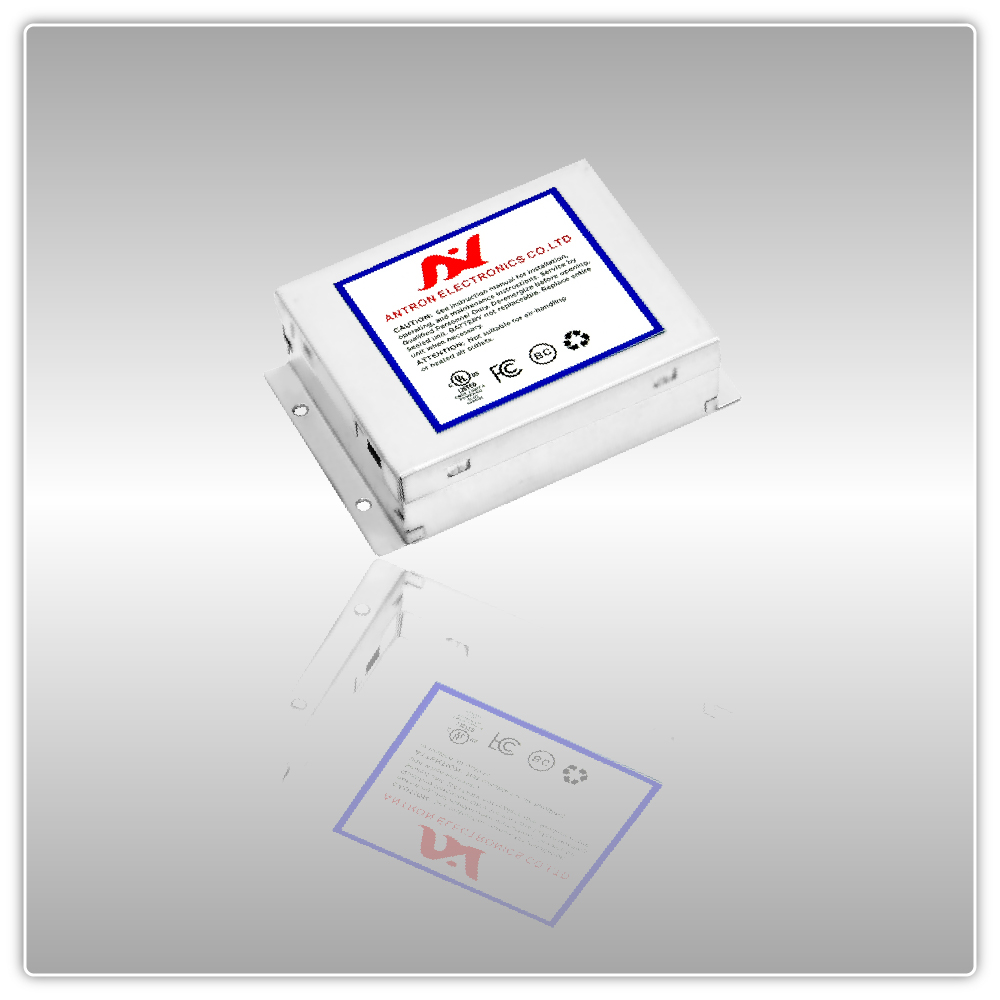

Battery Case: AM136  Size: L: 8.5 cm W: 6.2 cm H: 3.5 cm

Operation Temperature : -20℃ ~ 55℃
The heating unit make the battery can work at low ambient temperatures.

Categories: ,

Description

Features

– Universal input voltage 120-277, 120-347Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality Lithium-Ion battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty

10W External Battery Cold Emergency LED Driver AM111+AM136 Overview

Model Name Input Voltage Output Power Output Current Output Voltage Flexible Conduit Dimension
EMLEDS10-1555-7.2CHPNBEXLA 120-277Vac 10W 670-180mA 15-55V None DC Inverter: 133*63*30mm
Battery: 85*62*35mm
MEMLEDS10-1555-7.2CHPNBEXLA 120-347Vac 10W 670-180mA 15-55V None DC Inverter: 133*63*30mm
Battery: 85*62*35mm

Wire Diagram

Specification

Output Model Constant Power
Input Voltage 120-277V, 120-347V
Input Frequency 50/60 Hz
Dimming NA
Surge Rating 3KV
Warranty 5 Years TC≦60˚C
3 Years TC≦66˚C

Certification

* Only “Made in Taiwan” products can meet TAA compliant.

EMLEDS10-1555-7.2CHPNBEXLA AM111-136

Download

MEMLEDS10-1555-7.2CHPNBEXLA AM111-136

Download
