Description
Features
– Universal input voltage 120-277Vac
– At least 90 minutes in emergency mode
– automatically operate a 30 seconds short‐term test each month
– automatically operate a 90 minutes duration test every 12 months
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty
Power Activate Function
The Power Activate function is created to eliminate the physical battery connector. Traditionally, manufacturer will need to disconnect the physical battery connector to avoid any unwanted energy lose. Now, with the Power Activate function, manufacturer can set the emergency unit to “Sleep Mode” as the last step of assembly process. Once the overall installation is finished on the job site, the emergency unit will automatically activate by AC power, then go to charge mode.

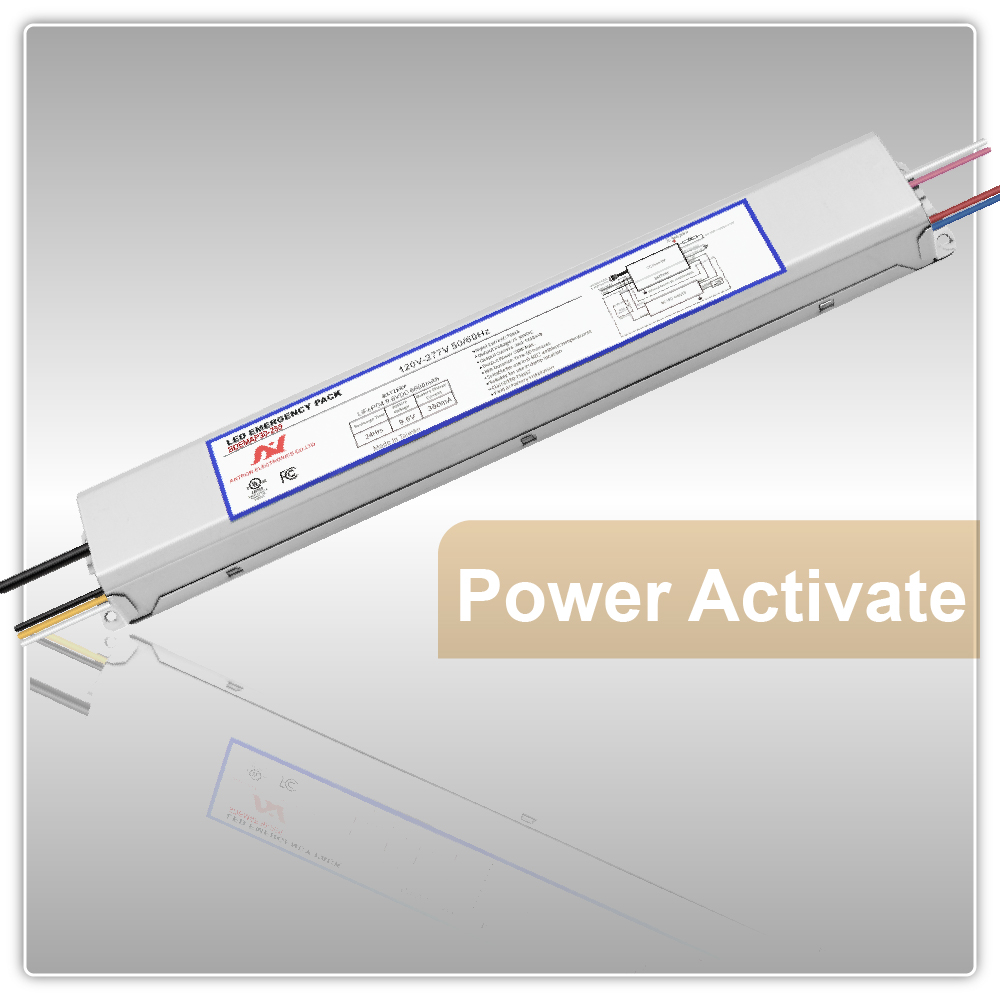

20W-30W Power Activate Self-Diagnostic Emergency LED Driver AM220 Overview
| Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Flexible Conduit | Dimension |
| SDLEDS20-1555-9.6CHPNBO | 120-277Vac | 20W | 1350-360mA | 15-55V | None | 390*57*33mm |
| SDLEDS30-1555-9.6CHPNBO* | 120-277Vac | 30W | 2000-545mA | 15-55V | None | 390*57*33mm |
*UL Penging
Wire Diagram
