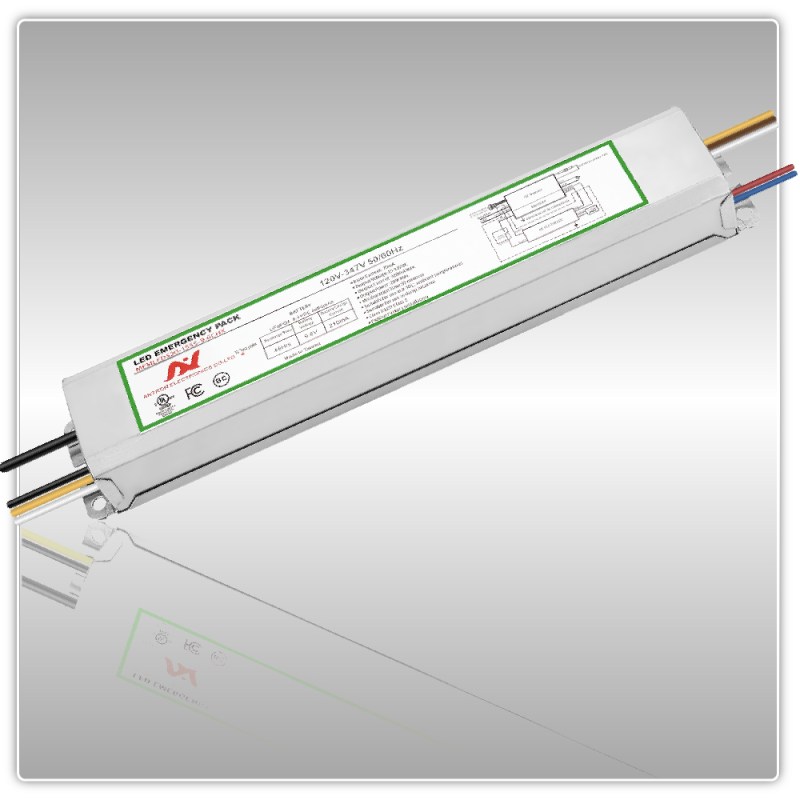

10W Type B LED Tube Emergency LED Driver AM210

Case: AM210  Size: L: 30.4 cm W: 4.3 cm H: 3.05 cm



– Universal input voltage 120-277Vac
– At least 90 minutes in emergency mode
– Emergency pack is designed for Type B LED Tube.
– High quality 12.8V LiFePO4 battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty

10W Type B LED Tube Emergency LED Driver AM210 Overview

Model Name Input Voltage Output Power Output Current Output Voltage Flexible Conduit Dimension
EMLEDS10-170-14.4-FCPB 12.8 120-277Vac Max. 10W Load Dependent 40-180V None 304*43*30.5mm

Wire Diagram


Output Model Constant Power
Input Voltage 120-277V
Input Frequency 50/60 Hz
Dimming NA
Surge Rating 3KV
Warranty 5 Years TC≦60˚C
3 Years TC≦66˚C


* Only “Made in Taiwan” products can meet TAA compliant.

EMLEDS10-170-14.4-FCPB 12.8 AM210
