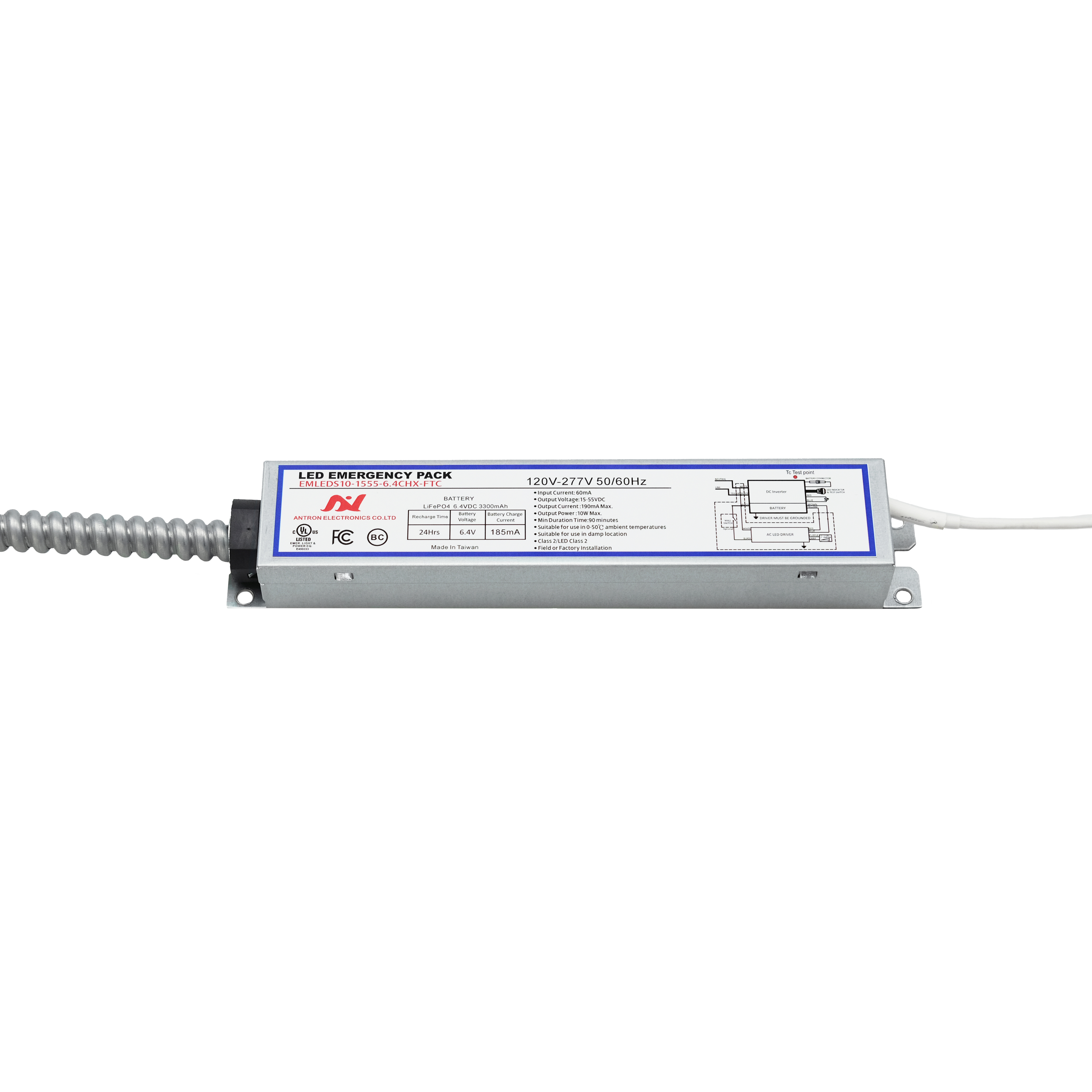

10W Flame Retardant NV CC Emergency LED Driver AM202

Case: AM202  Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm



– Universal input voltage 120-277Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality LiFePO4 battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty

10W Flame Retardant Nominal Voltage Constant Current Emergency LED Driver AM202 Overview

Model Name Input Voltage Output Power Output Current Output Voltage Flexible Conduit Dimension
EMLEDS10-1555-6.4CHXNB-FTC 120-277Vac 10W 190mA 15-55V Single-side 241*43*30.5mm

Wire Diagram


Output Model Constant Current
Input Voltage 120-277V
Input Frequency 50/60 Hz
Dimming NA
Surge Rating 3KV
Warranty 5 Years TC≦60˚C
3 Years TC≦66˚C


* Only “Made in Taiwan” products can meet TAA compliant.

EMLEDS10-1555-6.4CHXNB-FTC AM202
