10W Bottom Mount NV CC Emergency LED Driver AM197IHRS
Case: AM197IHRS Size: L: 21.4 cm W: 4.3 cm H: 3.05 cm
Features
– Universal input voltage 120-277Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality LiFePO4 battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty
10W Bottom Mount Nominal Voltage Constant Current Emergency LED Driver AM197IHRS Overview
| Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Flexible Conduit | Dimension |
| EMLEDS10-1555-6.4CHXNBBM | 120-277Vac | 10W | 190mA | 15-55V | Single-side | 214*43*30.5mm |

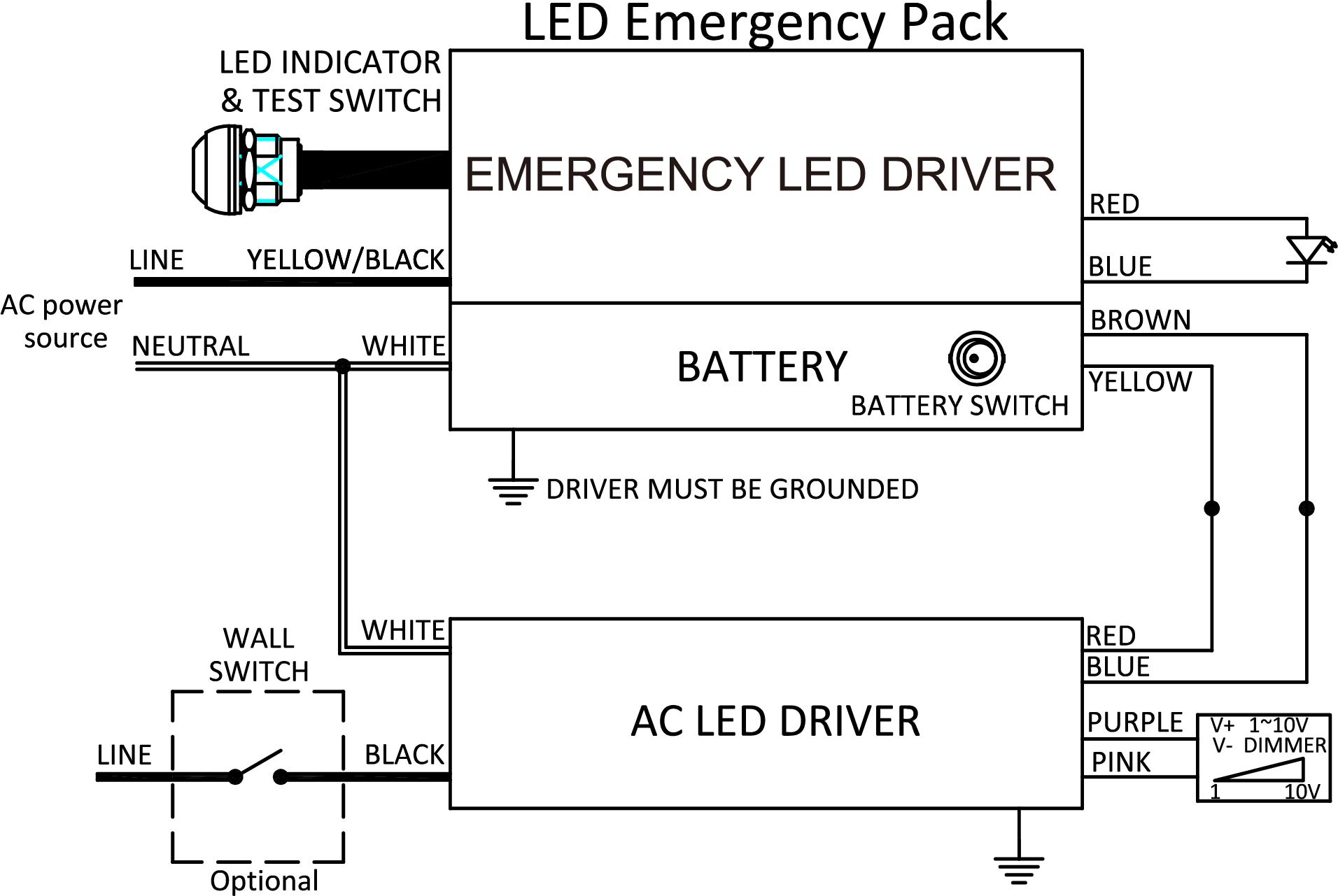

Wire Diagram
