Description
Features
– Universal input voltage 120-277, 120-347Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality Lithium-Ion battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty

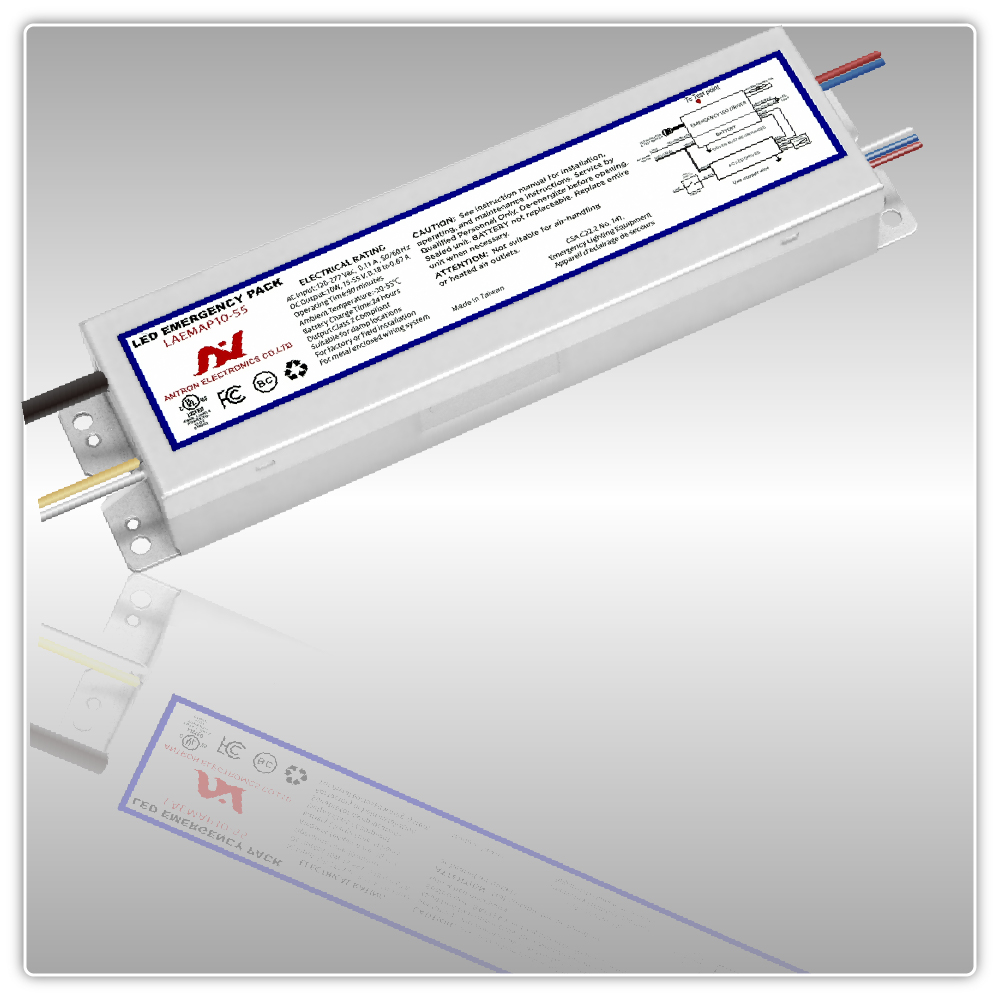

10W Cold Emergency LED Driver AM105 Overview
| Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Flexible Conduit | Dimension |
| EMLEDS10-1555-7.2CHPNBLA | 120-277Vac | 10W | 670-180mA | 15-55V | None | 241*61*37mm |
| MEMLEDS10-1555-7.2CHPNBLA | 120-347Vac | 10W | 670-180mA | 15-55V | None | 241*61*37mm |
Wire Diagram
