Constant Current Emergency LED Driver

Antron constant current emergency LED driver provides three output voltage options – 15-55V, 80-130V and 80-176V. These options enable you to find the perfect match for your lighting application based on emergency lighting requirement. The compatibility of our emergency driver is great because it could work with any AC LED driver with maximum 5 amp output current. We highly recommend for lighting to your lighting fixture emergency function such as panel, troffer, vapor, wall pack or linear lighting applications.

Universal Constant Current Emergency LED Pack

Our constant current LED emergency driver works with universal input voltage from standard 120-277V to wider input 120-347V. Anywhere you are in the world, Antron C.C. emergency LED driver will fit perfectly in various locations without any problems.

Constant Current Emergency Pack Features

The LED emergency battery pack contains high quality LiFePO4 battery and DC inverter. Under most emergency situation, the power shuts off. This will automatically trigger the LED emergency battery pack switching to emergency mode. During emergency mode, the battery enclosed in the EMB starts providing power to the DC inverter. It transfers to constant current output and maintains at certain output current under emergency mode.

Antron emergency LED pack series provide power to your LED lighting fixture that will last for at least 90 mins. Last but not least, Antron emergency battery backup LED driver is UL listed & BC certified. It also meets CEC title 20 approval.

Every emergency LED kit is attached with a test switch that has an LED indicator. Illuminated LED indicator indicates the battery is charging correctly. To test the LED emergency backup driver, press the LED indicator, the driver will switch to emergency mode immediately. This feature enables our customers to perform monthly and annual test in simplicity.

Various Form Factors

We have varieties of form factors which will provide any sizing you need. Our goal is to ensure our EMBs fit in various lighting fixtures freely.

8W to 28W

Constant Current

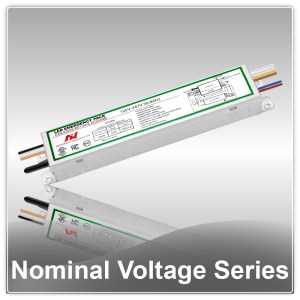

Constant Current Emergency LED Driver Nominal Voltage

The output voltage is 15-55V.
(NV : Nominal Voltage)

Constant Current Emergency LED Driver High Voltage Series

The output voltage is 80-130V.
(HV : High Voltage)

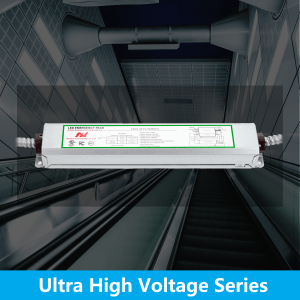

Constant Current Emergency LED Driver Ultra High Voltage Series

The output voltage is 80-176V.
(UHV : Ultra High Voltage)
