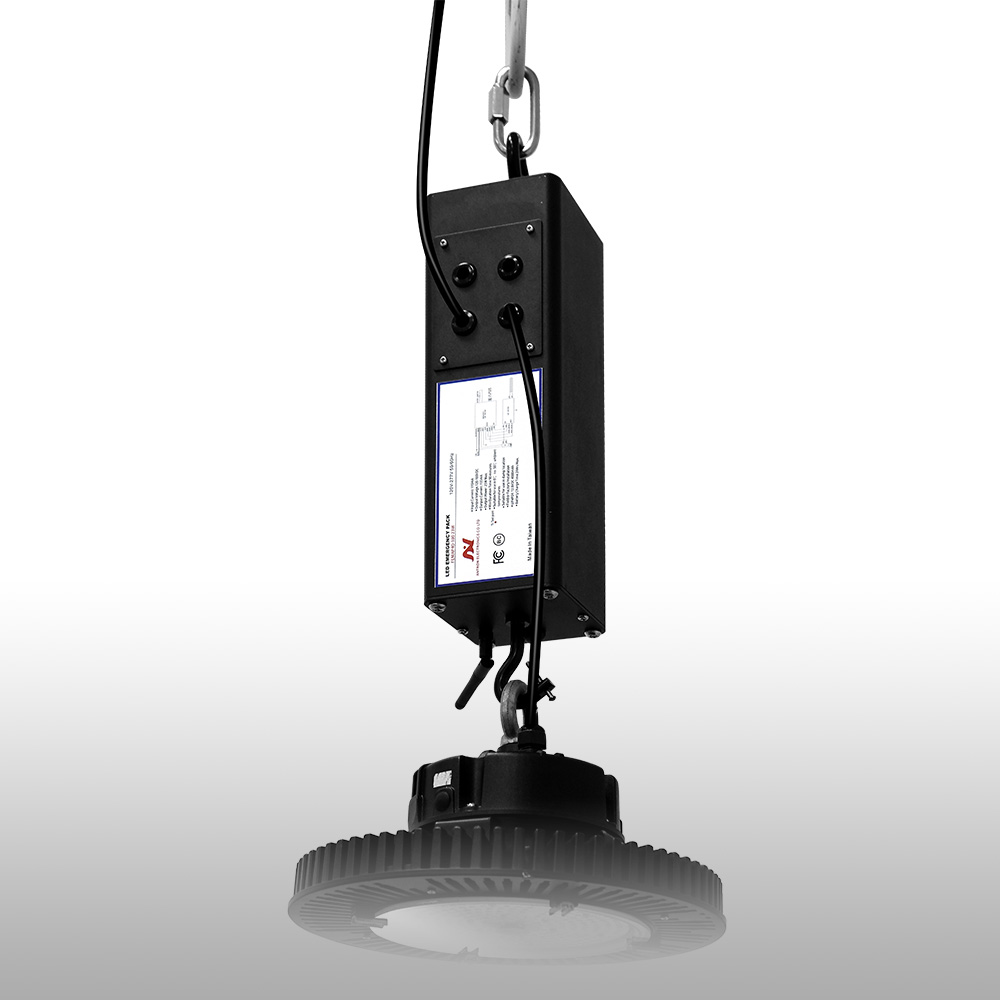

UFO Front-End Emergency LED Driver AM274
●Universal input voltage 120-277, 120-347 VAC
●At least 90 minutes in emergency mode
●Auto dimming 0-10V
●High quality LiFePO4 battery inside
●Open/Short/Over-Voltage/Over Temp protection
●Suitable for UL dry and damp loctaion.
●UL listed and CEC title 20 approval
●5 years warranty
Features
1. Front-End Design with Integrated Junction Box
High-ceiling installations pose significant challenges for wiring and maintenance. The Antron UFO Front-End Emergency LED Driver is engineered specifically for industrial high-bay applications. Its innovative housing integrates the wiring junction box directly into the unit, completely eliminating the need for an additional external box. This front-end design significantly reduces wiring complexity, saving valuable labor time in hard-to-access locations like warehouses, manufacturing facilities, and logistics centers.
2. Electrical Compatibility & Intelligent 0–10V Automatic Dimming
Designed with high versatility in mind, this emergency backup solution seamlessly integrates into existing industrial lighting systems:
• Voltage Compatibility: Fully compatible with 120VAC input LED drivers and industrial fixtures.
• Smart Dimming Control: Works in tandem with 0–10V dimmable AC LED drivers.
• Adaptive Power Regulation: During a power outage, the EMB monitors the connected LED driver’s output status. It automatically modulates the fixture’s output via the 0–10V dimming signal, ensuring the fixture operates precisely at the driver’s rated 23W emergency output power. This technology guarantees stable, uniform illumination and optimizes battery runtime when utility power fails.

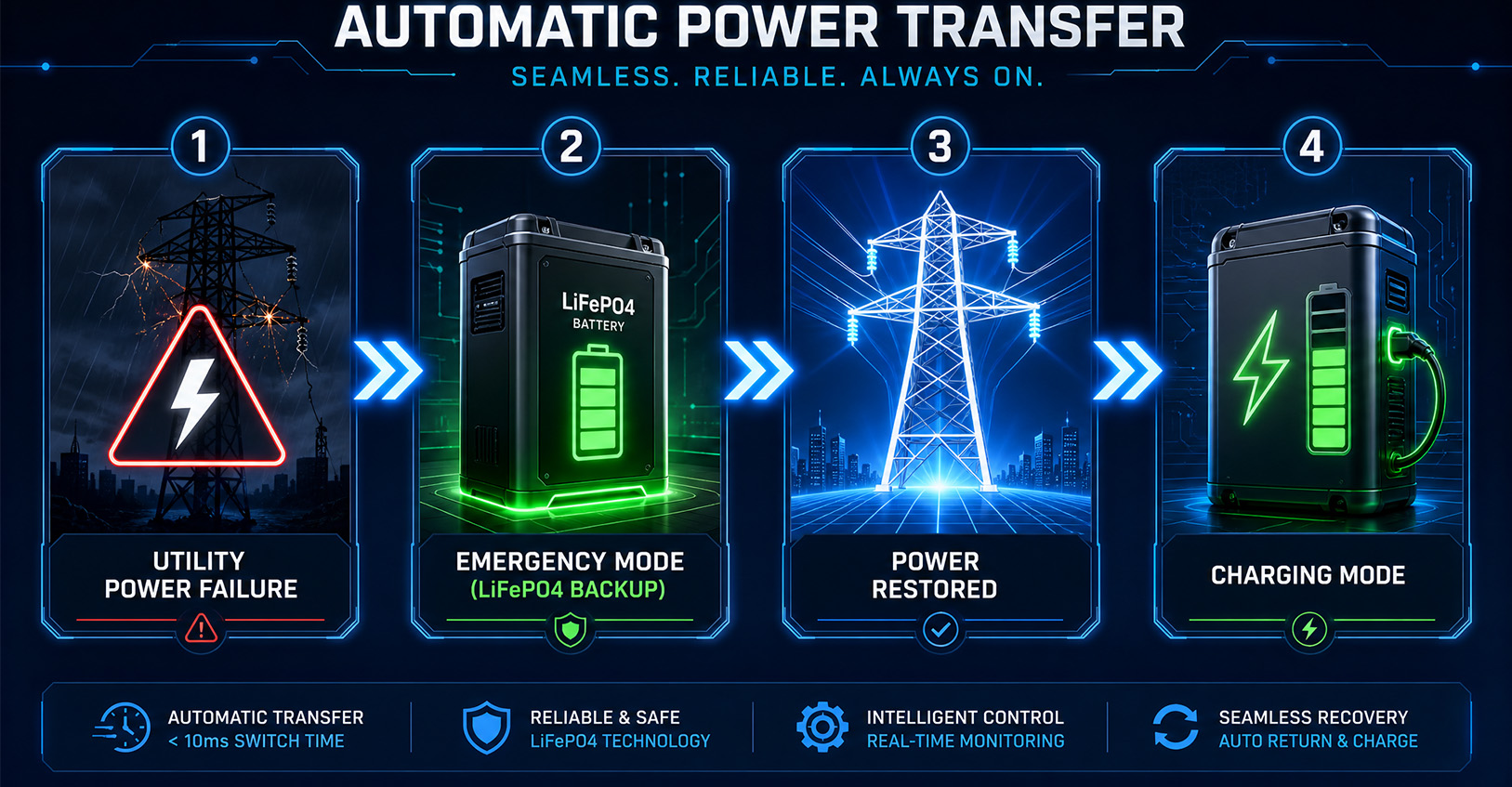

3. Premium LiFePO4 Battery & Automatic Transfer Specifications
| Technical Parameter | Specification Details | B2B Project Value |
Battery Chemistry |
Premium Lithium Iron Phosphate (LiFePO4) |
Ensures superior thermal stability, safety, and an extended operational lifespan. |
| Emergency Output |
Constant 23 Watts |
Delivers high-lumen output required for high-ceiling safety compliance. |
| Emergency Duration |
Minimum 90 Minutes (Load Dependent) |
Meets and exceeds standard life safety codes for industrial evacuation. |
| Regulatory Compliance |
UL Listed, BC Certified, CEC Title 20 Compliant |
Simplifies inspection and approval processes for North American commercial projects. |
| Environmental Rating |
Suitable for Damp Locations (0°C to 50°C) |
Highly reliable in non-climate-controlled warehouses and factories. |
4. Advanced Maintenance: Optional Remote Test Functionality
Routine compliance testing can be labor-intensive in high-mount applications. Every Antron EMB comes standard with an illuminated LED test switch (solid LED indicates healthy charging; pressing it forces immediate emergency mode). For maximum convenience, remote test functionality is available as an optional feature, allowing facility managers to perform mandatory monthly and annual testing safely from the ground without needing scissor lifts or ladders.
Product Specification
| Model Name | Voltage VAC(Input) | Power W(Output) | Current mA (Output) | VoltageVDC(Output) | Dimension(mm) | File |
|---|---|---|---|---|---|---|
| FEMAP40-180 23W | 120-277 | 23 | 135 | 120-180 | 101*101*306 | Download |
