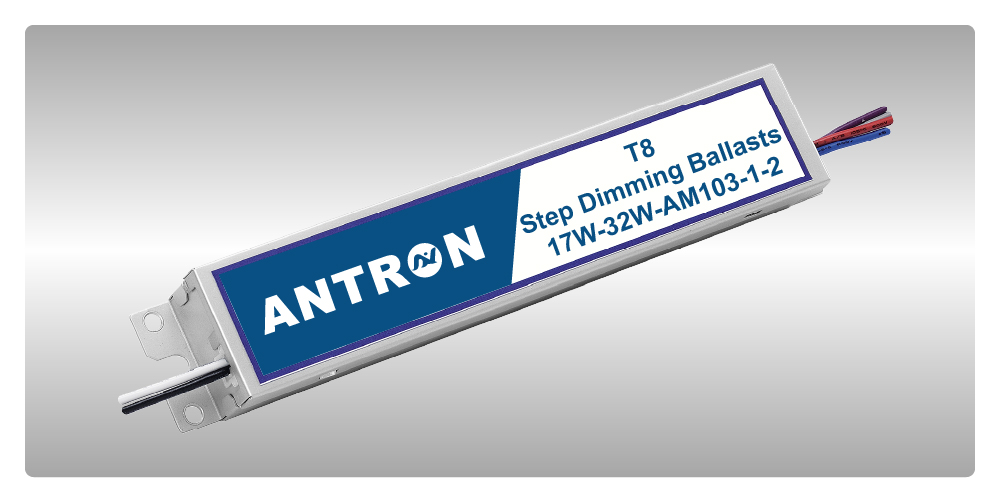

T8 Step Dimming Ballasts 17W-32W_AM103_1-2 Lamps

Case: AM103  Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm

Description

Features

● Two lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type CC & Type HL
● FCC part 18 Class A
● Surge Protected
● Class P

T8 Step Dimming Ballasts 17W-32W Series Overview

Model Name Starting Method Input voltage Lamp type Rated Lamp Watts No. of Lamp
TSD-332T8MS-SD Program Start 347V 32W T8 32W 2
25W T8 25W 2
17W T8 17W 2
32W T8/ES(30W) 30W 2
32W T8/ES(28W) 28W 2
32W T8/ES(25W) 25W 2
TSD-UV32T8MS-SD Program Start 120-277V 32W T8 32W 2
25W T8 25W 2
17W T8 17W 2
32W T8/ES(30W) 30W 2
32W T8/ES(28W) 28W 2
32W T8/ES(25W) 25W 2

Wire Diagram



Specification

Ballast Type Electronic
Starting Method Program Start
Lamp connection Series
Input Voltage 120-277V, 347V
Input Frequency 50/60HZ, 60HZ
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C

Certification



TSD-332T8MS-SD AM103

Download

TSD-UV32T8MS-SD AM103

Download
