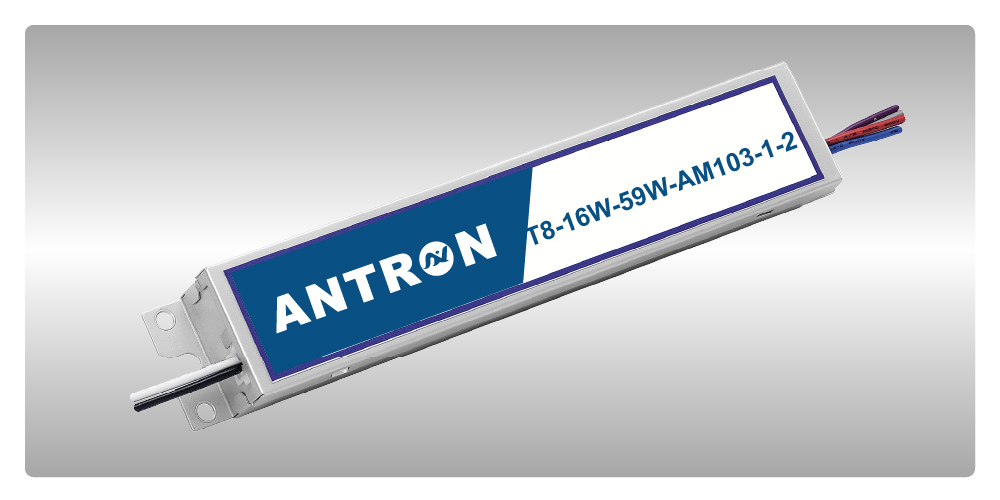

T8 Instant Start Ballasts 16W-59W_AM103_1-2 Lamps
Case: AM103 Size: L: 24.1 cm W: 4.3 cm H: 3.05 cm
Features
● One or Two Lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
● DOE Energy Verified
● NRCan Energy Verified
T8 Instant Start Ballasts 16W-59W_AM103_1-2 Lamps Series Overview
| Model Name | Starting Method | Input voltage | Lamp type | Rated Lamp Watts | No. of Lamp |
| EPD-332T8M | Instant Start | 347V | F32T8 | 32W | 2 |
| 1 | |||||
| F25T8 | 25W | 2 | |||
| 1 | |||||
| F17T8 | 17W | 2 | |||
| 1 | |||||
| F40T8 | 40W | 1 | |||
| F32T8/ES(30W) | 30W | 2 | |||
| 1 | |||||
| F32T8/ES(28W) | 28W | 2 | |||
| 1 | |||||
| F32T8/ES(25W) | 25W | 2 | |||
| 1 | |||||
| EPD-332T8MHO | Instant Start | 347V | F32T8 | 32W | 2 |
| 1 | |||||
| F25T8 | 25W | 2 | |||
| 1 | |||||
| F17T8 | 17W | 2 | |||
| 1 | |||||
| F40T8 | 40W | 1 | |||
| F32T8/ES(30W) | 30W | 2 | |||
| 1 | |||||
| F32T8/ES(28W) | 28W | 2 | |||
| 1 | |||||
| F32T8/ES(25W) | 25W | 2 | |||
| 1 | |||||
| EPD-332T8MLO | Instant Start | 347V | F32T8 | 32W | 2 |
| 1 | |||||
| F25T8 | 25W | 2 | |||
| 1 | |||||
| F17T8 | 17W | 2 | |||
| 1 | |||||
| F40T8 | 40W | 1 | |||
| F32T8/ES(30W) | 30W | 2 | |||
| 1 | |||||
| F32T8/ES(28W) | 28W | 2 | |||
| 1 | |||||
| F32T8/ES(25W) | 25W | 2 | |||
| 1 | |||||
| EPD-359T8M | Instant Start | 347V | F96T8 | 59W | 2 |
| 1 | |||||
| F96T8/ES | 57W | 2 | |||
| 1 | |||||
| EPD-A32T8M | Instant Start | 120-277V | F32T8 | 32W | 2 |
| 1 | |||||
| F25T8 | 25W | 2 | |||
| 1 | |||||
| F17T8 | 17W | 2 | |||
| 1 | |||||
| F40T8 | 40W | 1 | |||
| F32T8/ES(30W) | 30W | 2 | |||
| 1 | |||||
| F32T8/ES(28W) | 28W | 2 | |||
| 1 | |||||
| F32T8/ES(25W) | 25W | 2 | |||
| 1 | |||||
| EPD-A32T8MHO | Instant Start | 120-277V | F32T8 | 32W | 2 |
| 1 | |||||
| F25T8 | 25W | 2 | |||
| 1 | |||||
| F17T8 | 17W | 2 | |||
| 1 | |||||
| F40T8 | 40W | 1 | |||
| F32T8/ES(30W) | 30W | 2 | |||
| 1 | |||||
| F32T8/ES(28W) | 28W | 2 | |||
| 1 | |||||
| F32T8/ES(25W) | 25W | 2 | |||
| 1 | |||||
| EPD-A32T8MLO | Instant Start | 120-277V | F32T8 | 32W | 2 |
| 1 | |||||
| F25T8 | 25W | 2 | |||
| 1 | |||||
| F17T8 | 17W | 2 | |||
| F40T8 | 40W | 1 | |||
| F32T8/ES(30W) | 30W | 2 | |||
| 1 | |||||
| F32T8/ES(28W) | 28W | 2 | |||
| 1 | |||||
| F32T8/ES(25W) | 25W | 2 | |||
| 1 | |||||
| EPD-A36T8M | Instant Start | 120-277V | F36T8 | 36W | 2 |
| 1 | |||||
| F16T8 | 16W | 2 | |||
| 1 | |||||
| EPD-A59T8M | Instant Start | 120-277V | F96T8 | 59W | 2 |
| 1 | |||||
| F96T8/ES | 57W | 2 | |||
| 1 |
Wire Diagram
Two Lamps
One Lamp
