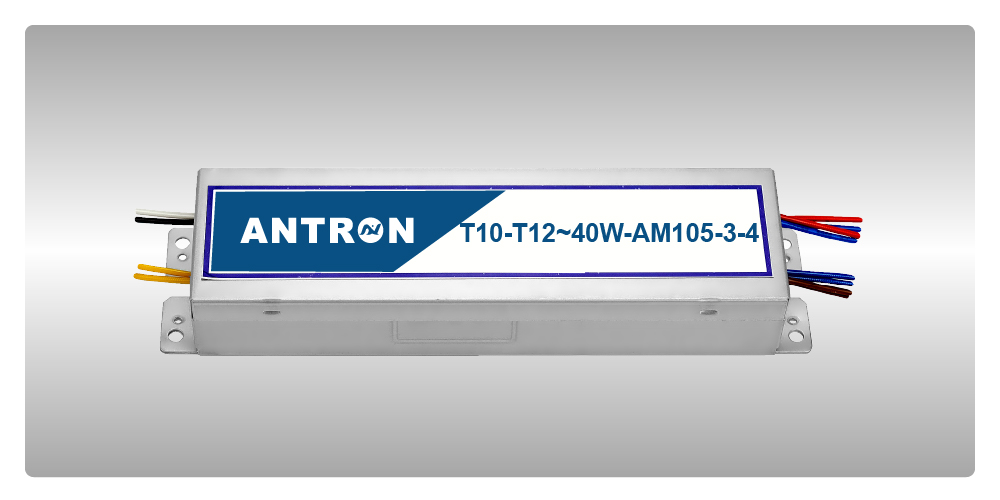

T10.T12 Rapid Start Ballasts 40W_AM105_3-4 Lamps

Case: AM105  Size: L: 24.1 cm W: 6.1 cm H: 3.7 cm

Description

Features

● Maximum Four Lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected

T10.T12 Rapid Start Ballasts 40W_AM105_3-4 Lamps Series Overview

Model Name Starting Method Input voltage Lamp type Rated Lamp Watts No. of Lamp
ESPQ-340T12  Rapid Start 347V F40T12 40W 4
3
ESPQ-A40T12  Rapid Start 120-277V F40T12 40W 4
3

Wire Diagram




Four Lamps

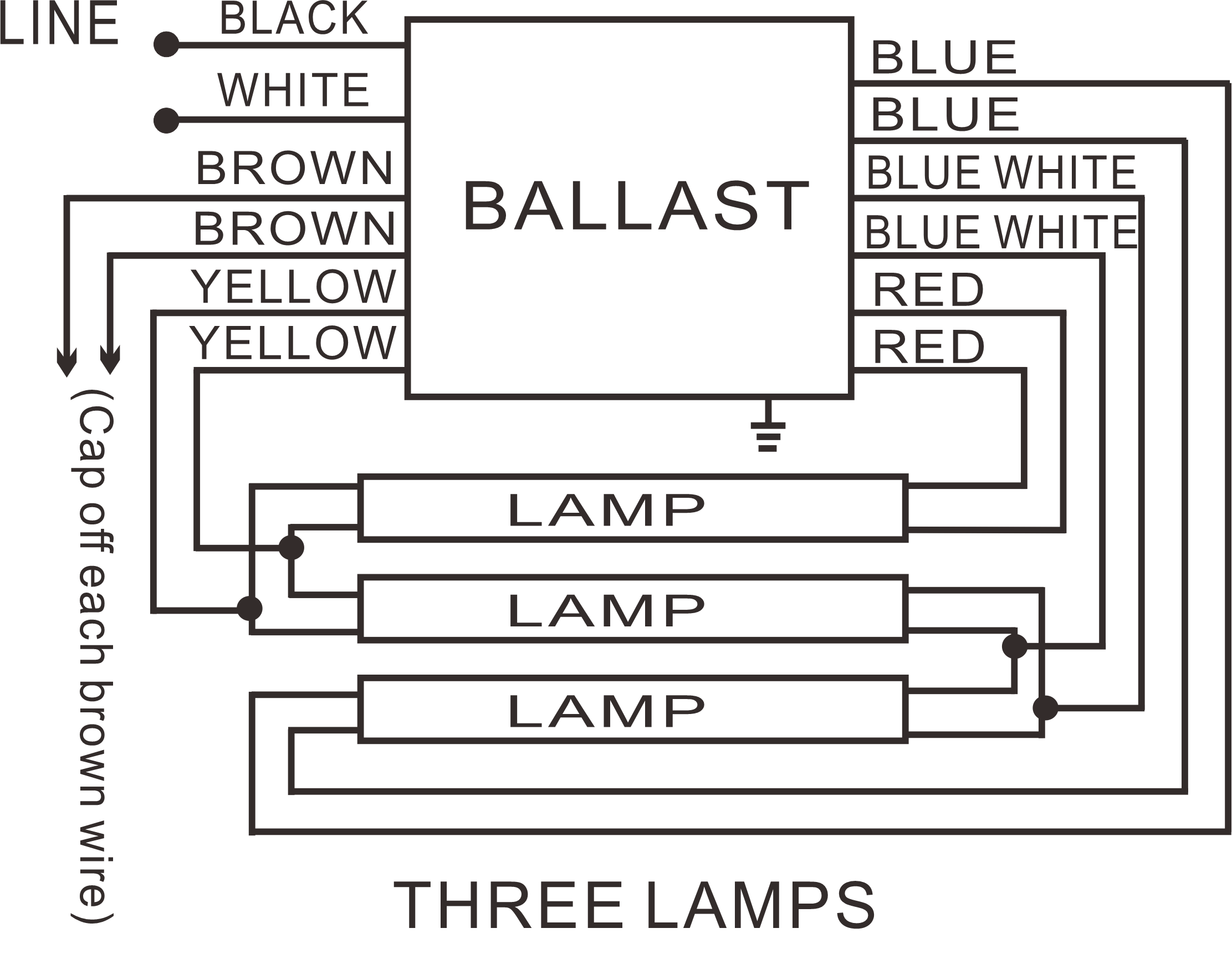

Three Lamp



Specification

Ballast Type Electronic
Starting Method Rapid Start
Lamp connection Series
Input Voltage 120-277V, 347V
Input Frequency 50/60HZ. 60HZ
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C

Certification



ESPQ-340T12 AM105

Download

ESPQ-A40T12 AM105

Download
