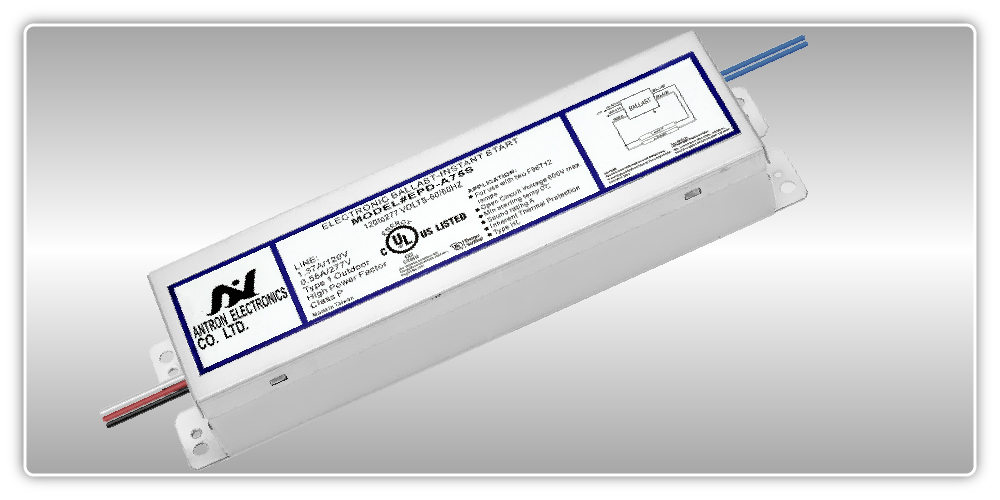

T10.T12 Instant Start Ballasts 40W-75W_AM108_1-2 Lamps

Case: AM108  Size: L: 24.1 cm W: 6.1 cm H: 4.0 cm

Description

Features

● One or Two Lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
● NRCan Energy Verified
● DOE Energy Verified

T10.T12 Instant Start Ballasts 40W-75W_AM108_1-2 Lamps Series Overview

Model Name Starting Method Input voltage Lamp type Rated Lamp Watts No. of Lamp
EPD-375S Instant Start 347V F96W T12 75W 2
1
F84W T12 65W 2
1
F72W T12 55W 2
1
F64W T12 50W 2
1
F60W T12 50W 2
1
F48W T12 40W 2
1
F96W T12/ES 60W 2
1
EPD-A75S Instant Start 120-277V F96W T12 75W 2
1
F84W T12 65W 2
1
F72W T12 55W 2
1
F64W T12 50W 2
1
F60W T12 50W 2
1
F48W T12 40W 2
1
F96W T12/ES 60W 2
1

Wire Diagram



Two Lamps

One Lamp

Specification

Ballast Type Electronic
Starting Method Instant Start
Lamp connection Parallel
Input Voltage 120-277V,  347V
Input Frequency 50/60HZ, 60HZ
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C

Certification



EPD-375S AM108

Download

EPD-A75S AM108

Download
