Program Start UV Lamp Ballasts 15W-55W_AM42_1-2 Lamps

Case: AM42  Size: L: 12.5 cm W: 6.4 cm H: 2.9 cm

Category:

Description

Features

● One or Two lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected

Program Start UV Lamp Ballasts 15W-55W_AM42_1-2 Lamps Series Overview

Model Name Starting Method Input voltage Lamp type No. of Lamp Lamp Current
CSS-UV42P/BMUV Program Start 120-277V SANUVOX LMPRGX J65 2 0.425A
1 0.440A
GPH450 T5L/4P 2 0.410A
1 0.436A
TUV PLL 36W 1 0.435A
TUV 36WT8 1 0.435A
GPH1025 T5L/4P 1 0.417A
CSD-UV24P/BMUV Program Start 120-277V TUV
PLL24W
2 0.345A
1 0.37A
TUV
PLL18W
2 0.38A
1 0.4A
OSRAM
G30T8 /OF
2 0.39A
1 0.41A

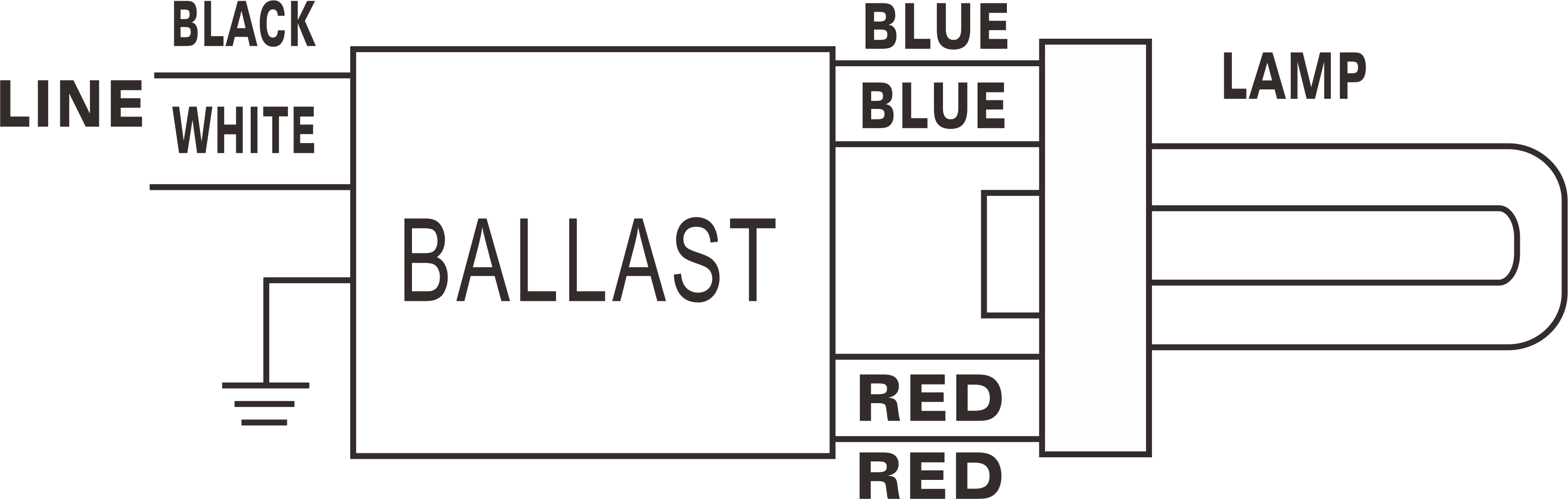

Wire Diagram

Two Lamps

One Lamp

Specification

Ballast Type Electronic
Starting Method Program Start
Lamp connection Series
Input Voltage 120-277V
Input Frequency 50/60HZ
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C

Certification



CSS-UV42P-BMUV AM42

Download

CSD-UV24P-BMUV AM42

Download
