Multiple Channel LED Driver 100W-160W AM160

Case: AM160  Size: L: 24.1 cm W: 9.5 cm H: 4.6 cm



– Universal input voltage 120-277, 120-347, 347Vac
– 3 or 4 individual outputs channel design
– PFC, Flicker Free, Isolated design
– 3-in-1 Dimming (PWM, 0-10V, Resistance)
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– 2kV to 6kV surge protection
– 5 years warranty

Multiple Channel Series Overview (60W-160W)

Model Name Output Channel Input Voltage Output Power Output Power
Per Channel
Output Current Output Voltage Efficiency
AC700T30D 3 120-277Vac 90W 30W 700mA 25-42V 84%
AC1050T48D 3 120-277Vac 144W 48W 1050mA 27-45V 84%
AC450Q15D 4 120-277Vac 60W 15W 450mA 20-33V 84%
AC700Q25D 4 120-277Vac 100W 25W 700mA 21-36V 84%
AC1350Q33D 4 120-277Vac 132W 33W 1350mA 15-25V 85%
AC1050Q37D 4 120-277Vac 148W 37W 1050mA 21-35V 85%
AC700Q40D 4 120-277Vac 160W 40W 700mA 34-57V 85%
3C700T30D 3 347Vac 90W 30W 700mA 25-42V 84%
3C450Q15D 4 347Vac 60W 15W 450mA 20-33V 84%
3C1350Q33D 4 347Vac 132W 33W 1350mA 15-25V 85%

Note: The output current can be customized in factory

Wire Diagram

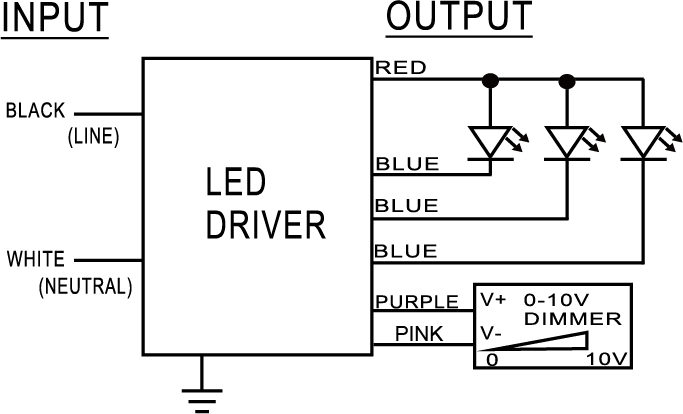

3 output channel

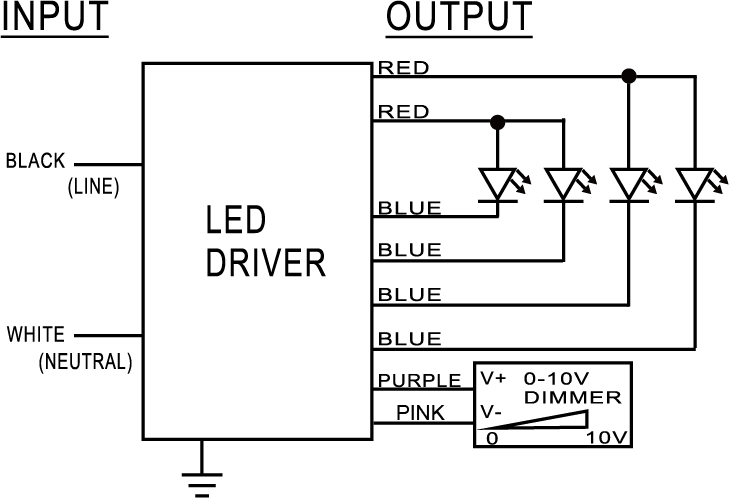

4 output channel



Output Model Constant Current
Input Voltage 120-277V, 347V
Input Frequency 50/60 Hz
Dimming 3 in 1 ( PWM, 1-10V, Resistance)
Dimming 1-100%
Surge Rating 2KV
Warranty 5 Years TC≦75˚C
3 Years 75˚C≦TC≦90˚C


* Only “Made in Taiwan” products can meet TAA compliant.
