Features

– Universal input voltage 120-277Vac
– At least 90 minutes in emergency mode
– Variable resistor design for LED load power adjustment
– Optional remote test switch design
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty

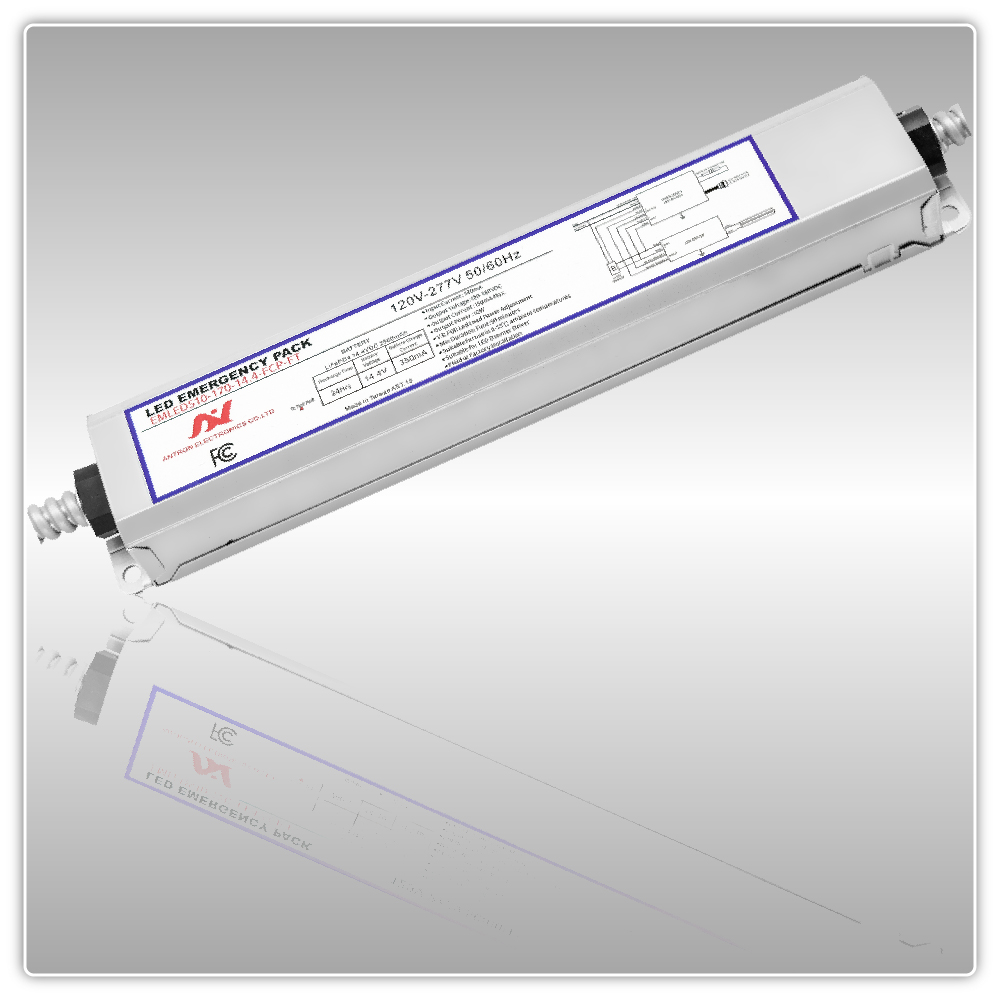

Front-End Emergency LED Pack Series Overview AM210 / AM209SC / AM202SC

Model Name	Voltage VAC (Input)	Power W (Output)	Current mA (Output)	Voltage V(Output)	Metal Conduit	Dimension(mm)	File
FEMAP10-180	120-277	10	59	120-180	Optional	304*43*30.5	Download
FEMMP20-180	120-277	20	120	120-180	Optional	338*62*38	Download

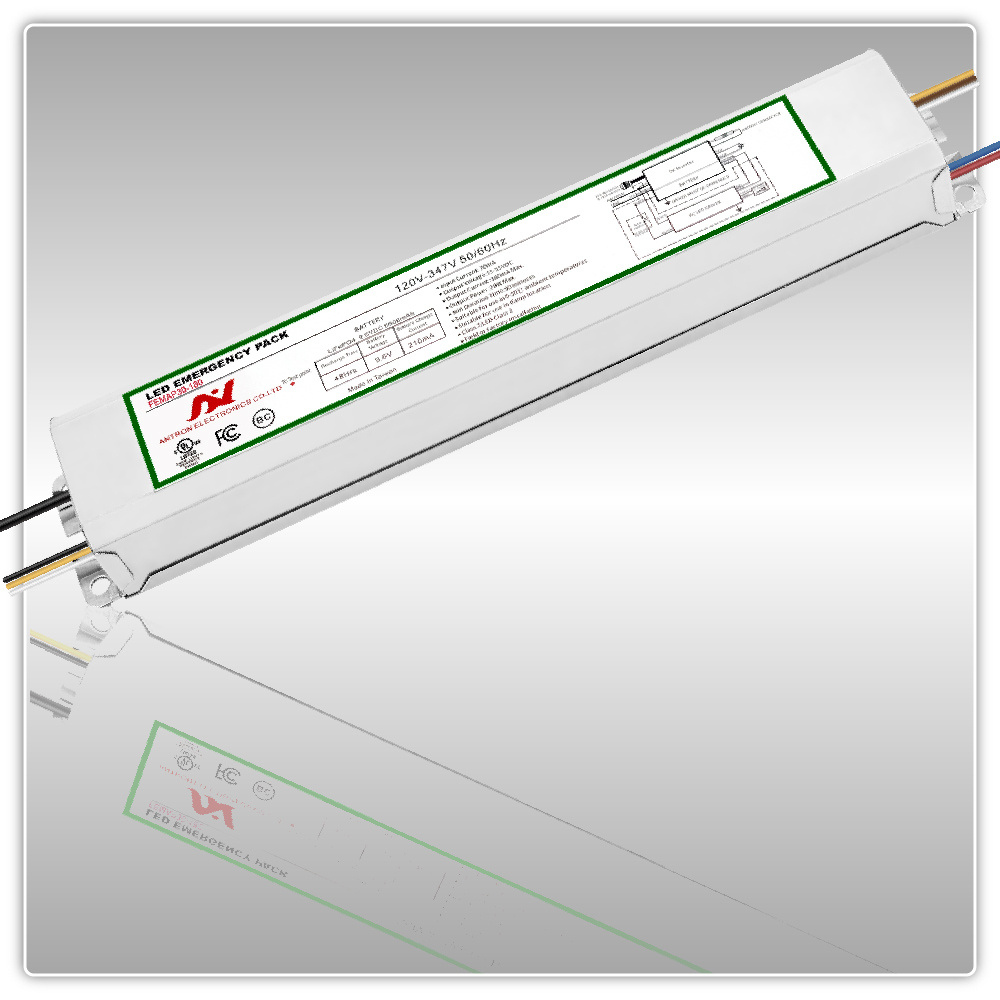

FEMAP30-180 23W	120-347	23	135	120-180	Optional	338*62*38	Download

Wire Diagram

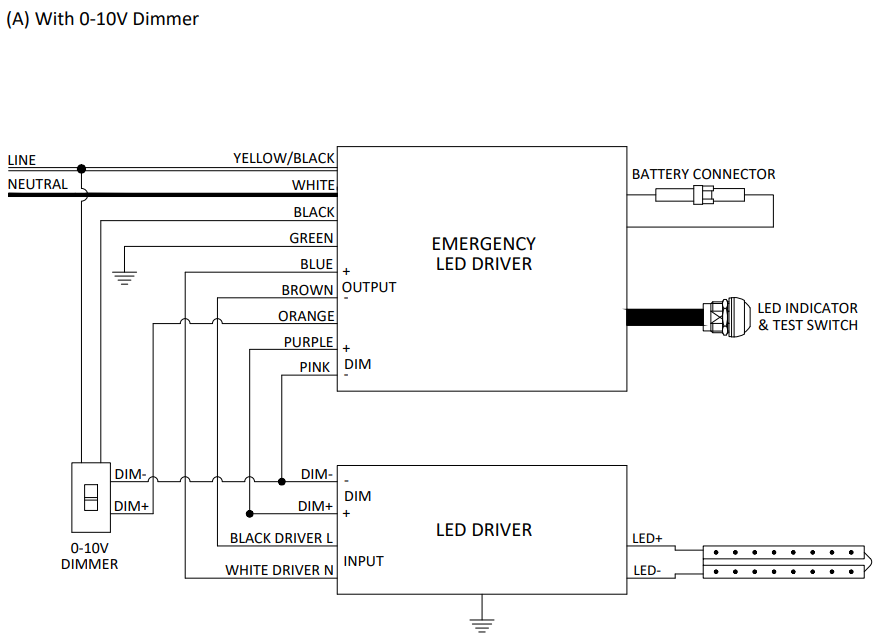

1. Wiring Diagram with 0-10V Dimmer:


2.Wiring Diagram without 0-10V Dimmer:

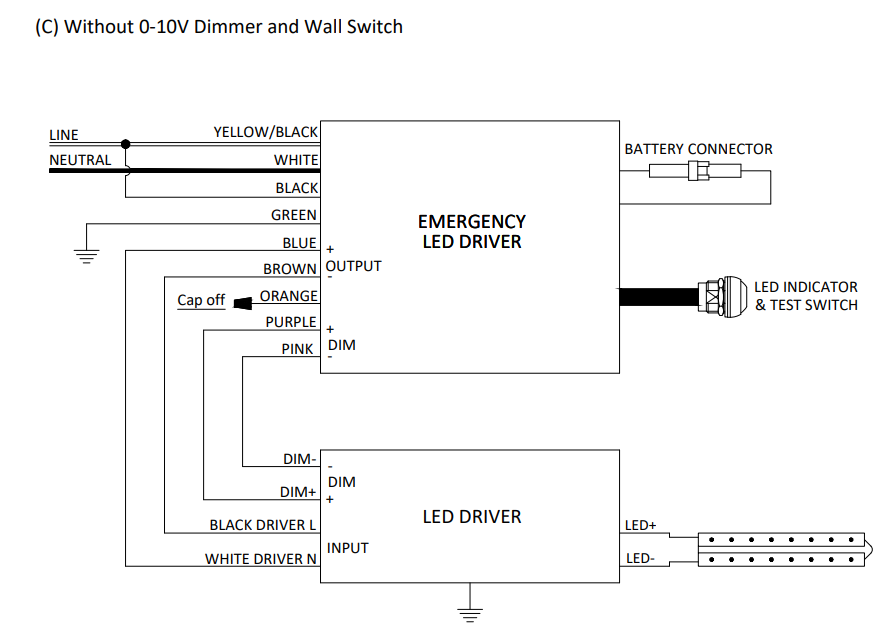

3.Wiring Diagram without 0-10V Dimmer and Wall Switch:

Antron front-end emergency LED driver enables you a pleasant experience when it comes to installation. It is compatible with any 0-10V dimmable AC LED driver ranges from 10W to 240W. Moreover, it provides adjustable constant power output from 10W to 20W. It also comes with easy adjustments. You may adjust the output power you prefer via potentiometer (VR). Another feature of the front-end emergency pack is its remote control function, you can easily test the emergency function with the controller. These features are perfect for warehouses, commercial offices or factories that have high ceilings or locations that are not easy to reach.

Universal Voltage Range Front-End Emergency LED Driver

Our front-end LED emergency pack works with universal input voltage from standard 120-277V to wider input 120-347V. Depending your need and requirements, anywhere you are in the world, our front-end LED EMB driver will fit perfectly in various locations without any problems.

Front-End LED Emergency Kit Features andAdvantages

Antron front-end EMB contains high quality LiFePO4 battery and DC inverter. Under most emergency situation, the power shuts off, it automatically triggers the emergency unit switching to emergency mode. During emergency mode, the battery enclosed provides power to the DC inverter. It transfers to constant power output and maintains at 10W to 20W output power under emergency mode. When the power returns, the EMB unit will turn back to charging mode.
Antron emergency LED pack series provide power to your LED lighting fixture that will last for at least 90 mins. Our backup LED driver is UL listed & BC certified. It also meets CEC title 20 approval. It is suitable for use in damp locations and ambient temperature from 0℃ to 55℃. Providing safety and high quality emergency driver is our mission!
Every emergency backup pack is attached with a test switch that has an LED indicator. Illuminated LED indicator indicates the battery is charging correctly. To test the EMB pack, press the LED indicator, the driver will switch to emergency mode immediately. This feature enables our customers to perform monthly and annual test in simplicity.
10W-20W
Output Voltage 120V-180V
