Emergency Lighting Automatic Load Control Relay AM223
Case: AM223 Size: L:10.16cm W:10.16cm H: 4.6 cm
Features
– Universal input voltage 120-277Vac
– 5 years warranty
Automatic Load Control Relay AM223 Overview
| Model Name | Input Voltage | Relay Contact Ratings | Emergency Power Supply Usage | Input Power | Input Current | Dimension |
| ALCR-G20B | 120-277Vac | 20A | 120mA | 3W | 60mA | 101.6*101.6*4.6mm |

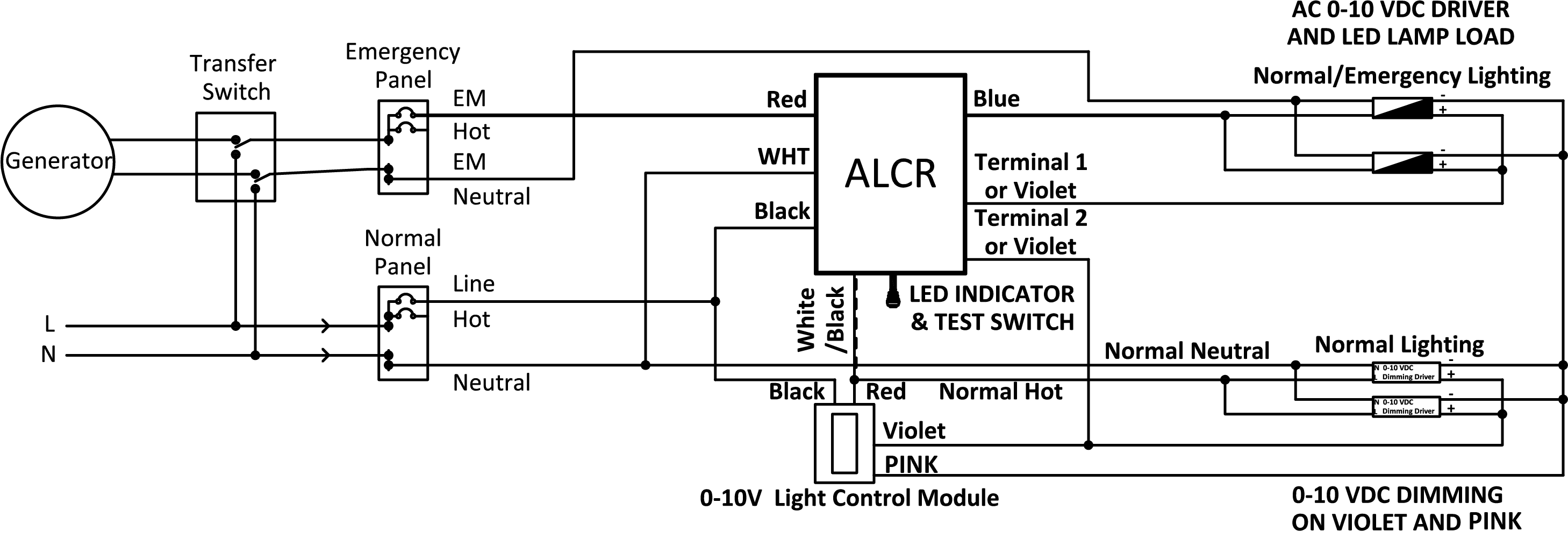

Wire Diagram
(A) With 0-10V Dimmer
(B) Without Dimmer
