Circular Program Start Ballasts 32W-40W_AM54_1-2 Lamps
Case: AM54 Size: L: 12.7 cm W: 7.7 cm H: 3.4 cm
Features
● One or Two lamps
● Sound Rated Class A
● Auto Restart
● UL/cUL Listed
● Class P Thermally Protected
● No PCBs
● UL Type 1 Outdoor
● High Power Factor
● Type HL
● FCC part 18 Class A
● Surge Protected
Circular Program Start Ballasts 32W-40W_AM54_1-2 Lamps Series Overview
| Model Name | Starting Method | Input voltage | Lamp type | Rated Lamp Watts | No. of Lamp |
| CSD-B42P/BMCLS | Program Start | 347V | 40+32W CL | 72W | 2 |
| 40+30W CL | 70W | 2 | |||
| 40+22W CL | 62W | 2 | |||
| 40W CL | 40W | 1 | |||
| 32W CL | 32W | 1 | |||
| CSD-UV42P/BMCLS | Program Start | 120-277V | 40+32W CL | 72W | 2 |
| 40+30W CL | 70W | 2 | |||
| 40+22W CL | 62W | 2 | |||
| 40W CL | 40W | 1 | |||
| 32W CL | 32W | 1 |
Wire Diagram

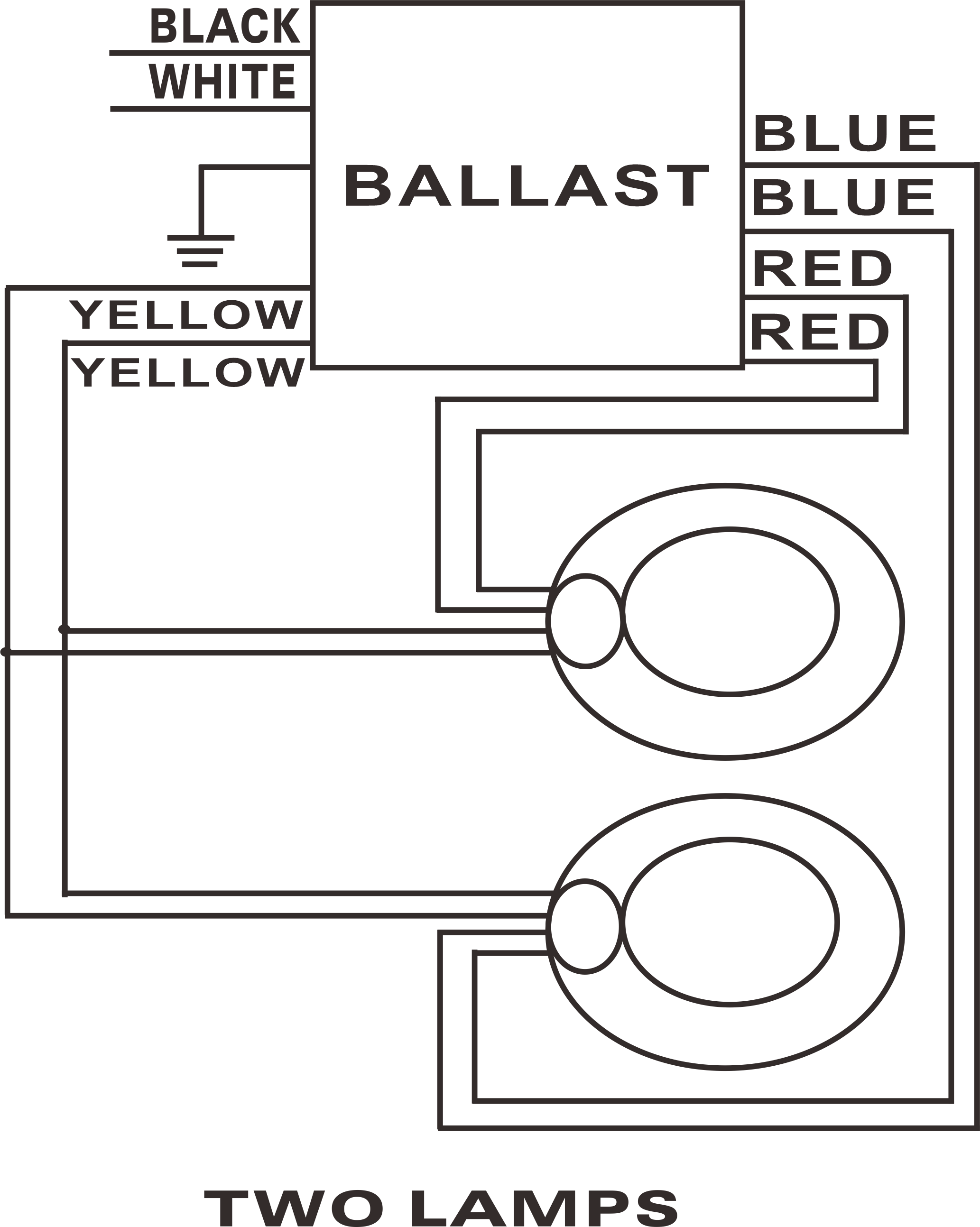

2 Lamps

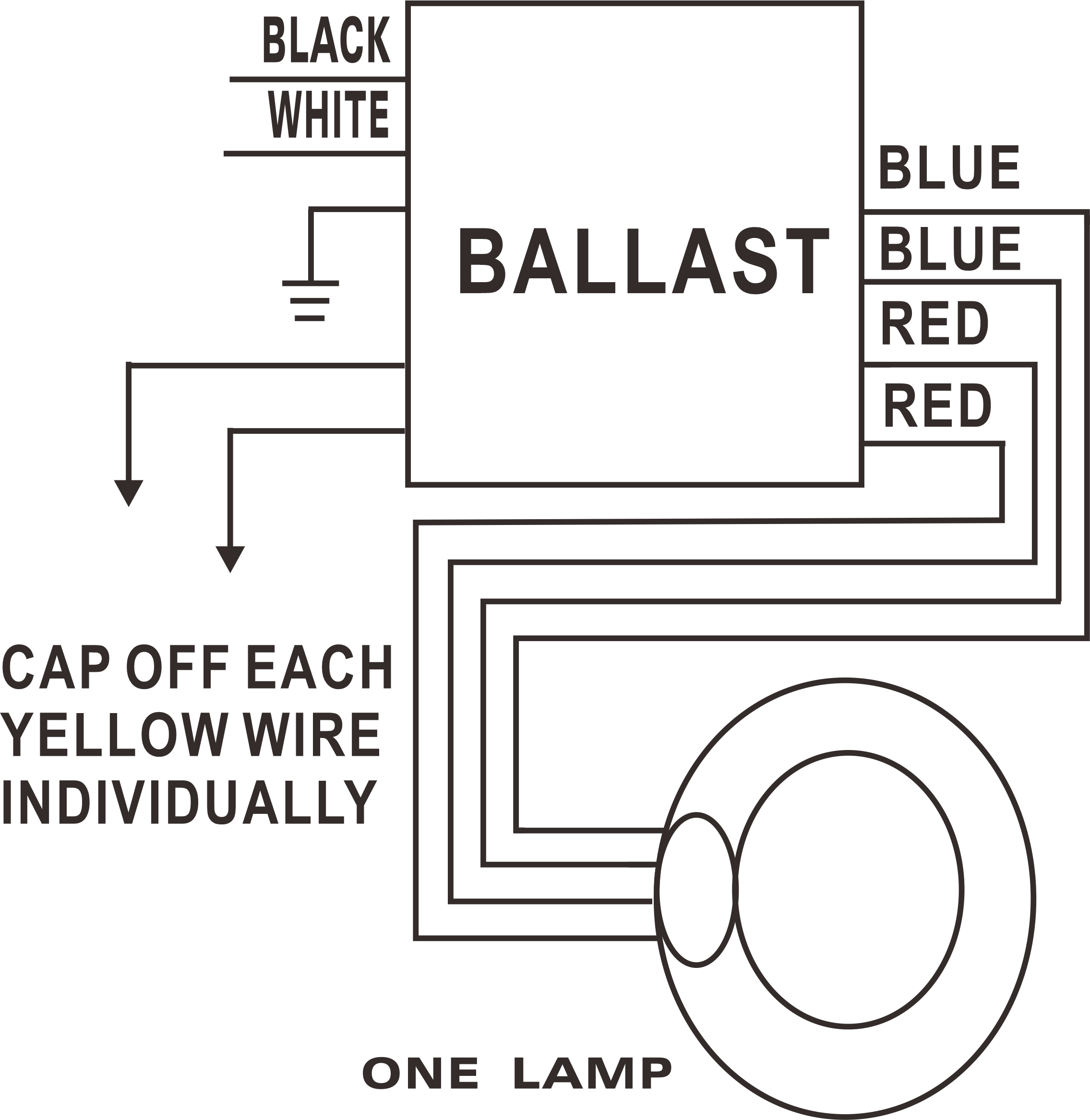

1 Lamp
