Description
Features
– Universal input voltage 120-277Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality LiFePO4 battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty

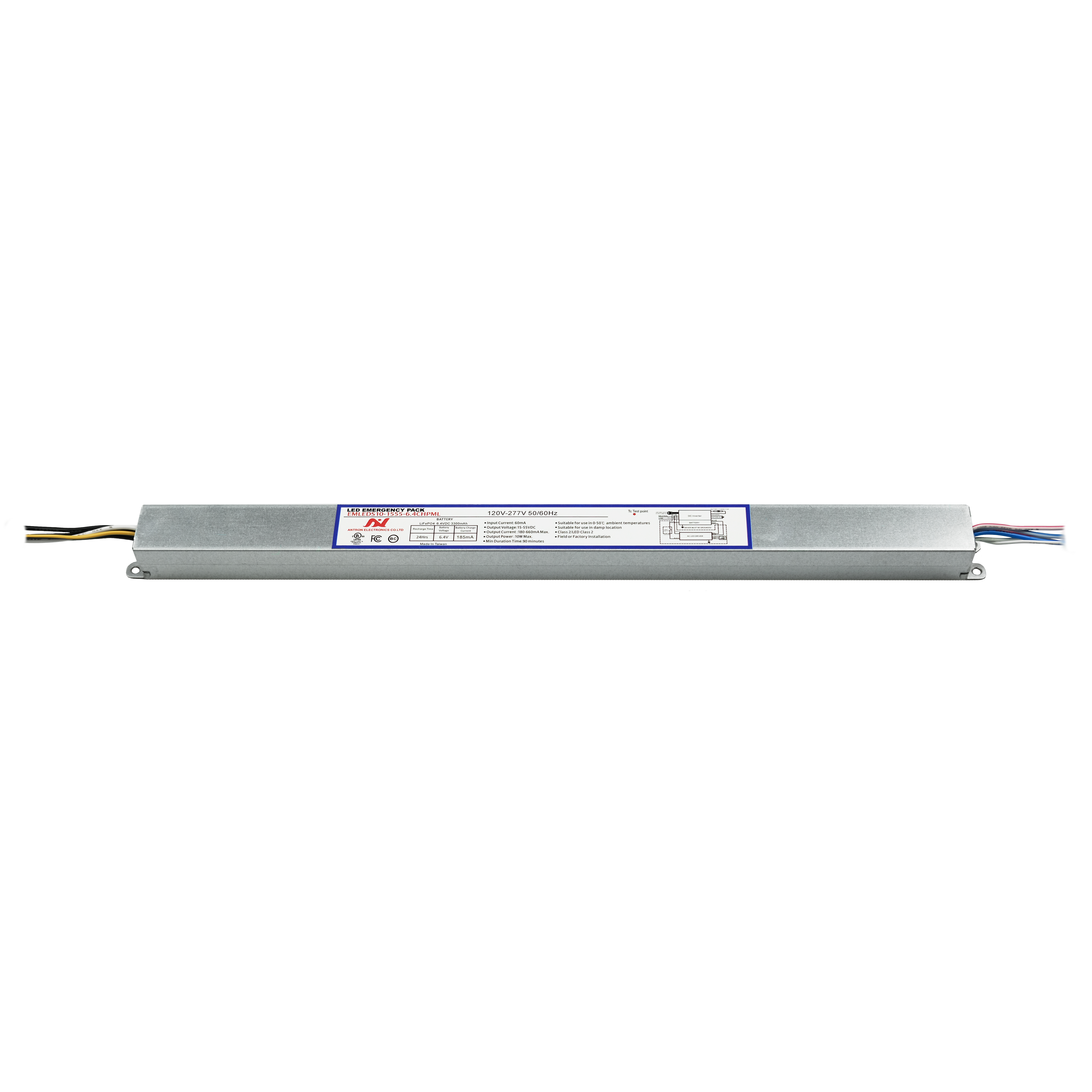

5W-10W Bottom mount Constant Power Emergency LED Driver AM197IHRS Overview
| Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Flexible Conduit | Dimension |
| EMLEDS10-1555-6.4CHPNBBM 5W | 120-277Vac | 5W | 333-91mA | 15-55V | Single-side | 214*43*30.5mm |
| EMLEDS10-1555-6.4CHPNBBM | 120-277Vac | 10W | 670-180mA | 15-55V | Single-side | 214*43*30.5mm |
Wire Diagram
