28W UHV CC Emergency LED Driver AM60
2020-02-13

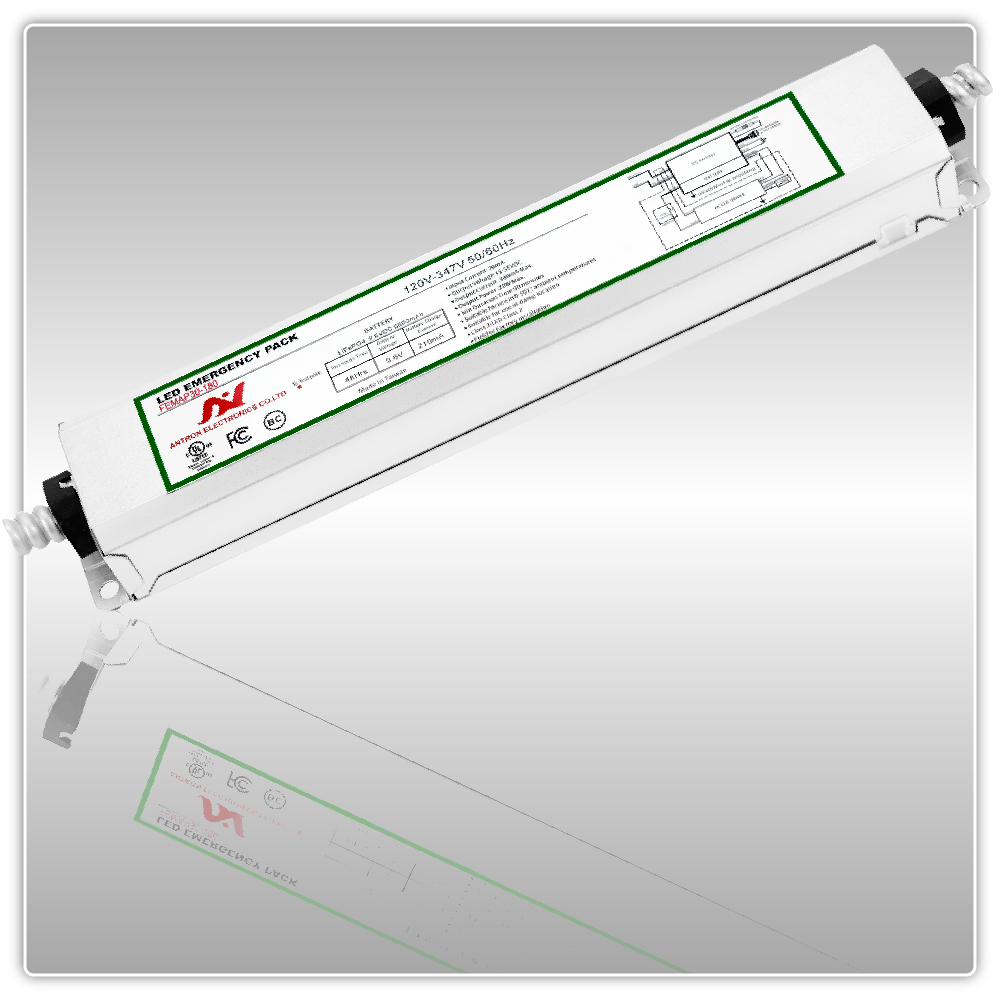

28W UHV CC Emergency LED Driver Conduit AM185
Case: AM185 Size: L: 33.8 cm W: 6.2 cm H: 3.8 cm
With Flexible Conduit and Plastic Plate
Features
– Universal input voltage 120-277, 120-347Vac
– At least 90 minutes in emergency mode
– Emergency pack is compatible with any AC driver
– High quality LiFePO4 battery inside
– Open/Short/Over-Voltage/Over Temp. protection
– Suitable for UL dry and damp location
– UL listed and CEC title 20 approval
– 5 years warranty
28W Ultra High Voltage Constant Current Emergency LED Driver Conduit AM185 Overview
| Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Flexible Conduit | Dimension |
| EMLEDS28‐80176‐9.6CHXNB-FT | 120-277Vac | 28W | 168mA | 80-176V | Double | 338*62*38mm |
| MEMLEDS28‐80176‐9.6CHXNB-FT | 120-347Vac | 28W | 168mA | 80-176V | Double | 338*62*38mm |
Wire Diagram
