Power System Emergency LED Driver
● Universal input voltage 120-277Vac
● Emergency pack is designed for external 48VDC power system.
● Open/Short/Over-Voltage/Over Temp. protection
● Suitable for UL dry and damp location
● UL listed
● 5 years warranty
Features
1. Introduction: Bridging Central Power Systems and Emergency Egress Lighting
In modern commercial complexes, industrial plants, and institutional campuses, life safety codes dictate strict emergency evacuation illumination. While individual battery packs are common, large-scale projects increasingly rely on Central Power Systems (such as backup generators or central inverter systems).
The Antron Power System Emergency LED Driver / Lighting Control Series acts as the crucial, fail-safe bridge. It seamlessly interfaces your building’s centralized standby power infrastructure with standard architectural LED fixtures, eliminating wiring redundancy while guaranteeing absolute code compliance during a municipal power grid failure.
2. Advanced Technology: Constant Power Regulation & Intelligent Control
Conventional bypass systems often suffer from voltage drops or load mismatches when switching between normal AC grids and centralized backup lines. Antron overcomes this industrial barrier through advanced electronic topologies:
-
Intelligent Load Monitoring: The internal control module dynamically monitors the electrical state of the branch circuit and the connected AC LED driver (compatible with high-power systems up to 240W).
-
True Constant Power Output: When an outage triggers the system, our driver transfers and regulates a rock-solid Constant Power Output (available from 10W to 30W options). This ensures that evacuation pathways maintain uniform, un-decayed lux levels for the legally mandated 90 minutes minimum, regardless of fluctuating source voltages from central generators.
3. Industrial-Grade Electrical Specifications & Legal Compliance
Technical Parameter
|
Specification Details
|
B2B Project & Sourcing Value
|
Input Voltage Compatibility
|
Universal 120–277VAC to Wide 120–347VAC
|
Globally adaptive; ideal for standard US commercial and robust Canadian grids.
|
Circuit Protections
|
Open Circuit, Short Circuit, Over-Voltage, Over-Temp
|
Actively insulates sensitive centralized backup infrastructure from field faults.
|
Regulatory Certifications
|
UL Listed (UL 924 Standard), BC Certified
|
Guarantees friction-free building inspector sign-offs for North American tenders.
|
Energy Efficiency Code
|
CEC Title 20 Compliant
|
Satisfies stringent green building mandates and environmental criteria.
|
Environmental Suitability
|
UL Rated for Dry & Damp Locations (0°C to 55°C)
|
Highly reliable in mechanical rooms, stairwells, and unconditioned logistics hubs.
|
Warranty Assurance
|
Backed by a 5-Year Factory Warranty
|
Delivers the long-term reliability requested by institutional specifyers.
|
4. Automatic Seamless Transfer & Ground-Level Routine Testing
Equipped with a precision automatic transfer switch circuit, the unit operational modes shift instantaneously:
-
Utility Failure Status: Instantly registers utility power drop-outs and forces the designated emergency fixtures into safety illumination mode.
-
Power Restoration Status: Seamlessly reverts back to monitoring/charging mode without operational friction or manual intervention.
-
Simplified Inspection Protocols: Every unit features an illuminated bi-color LED test switch showing battery/charging health. For high-ceiling installations, optional wireless remote testing or remote test switch arrays are available, allowing property managers to perform mandatory monthly and annual walkthrough checks safely from the ground.
Core System Applications
-
Commercial Office High-Rises & Shopping Malls
-
Industrial Manufacturing Plants & Logistics Warehouses
-
Institutional Infrastructure (Schools, Hospitals, and Government Hubs)
-
Data Centers utilizing Central Inverter / Generator Backup Supplies
| Model Name | Voltage VAC (Input) | Power W(Output) | Current mA (Output) | Voltage V(Output) | Metal Conduit | Dimension(mm) | File |

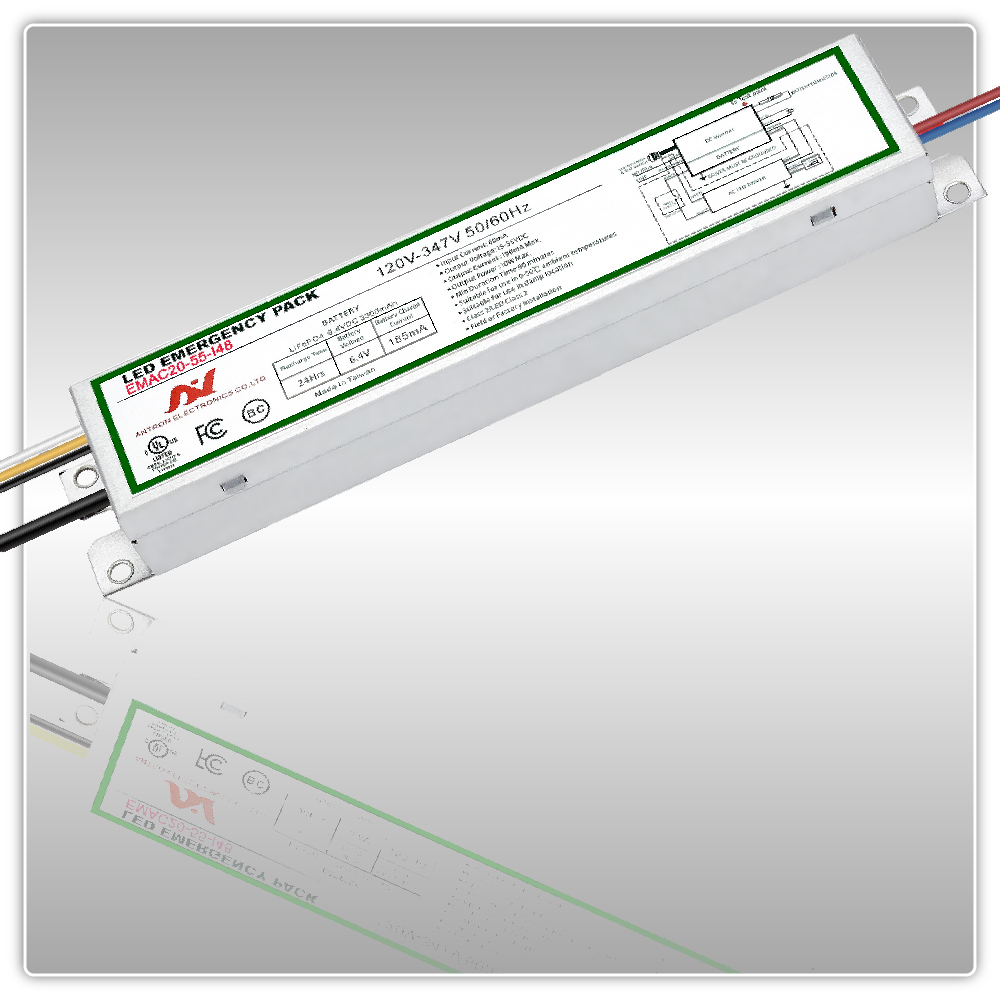

| EMAC20-55-E48 | 120-277 | 20 | 380 | 15-55 | Optional | 241*43*29.5 | Download |
