GaN Power Solutions
Product Feature - Universal input voltage 100-240 VAC - The power supply output voltage is typically 12V/24V/36V/48V. - PFC, flicker free and isolated design - High power density with small form factor - Open/Short/Over-Voltage/Over Temp. - 2kV to 6kV surge protection - PSU comes completely without a fan - 5 years warranty
| Input | Output | ||||||
| Model Name 機種名稱 |
Voltage 輸入電壓 VAC |
Power 輸出功率 W |
Current 輸出電流 mA |
Voltage 輸出電壓 V |
Efficiency 效率 % |
Remark 備註 |

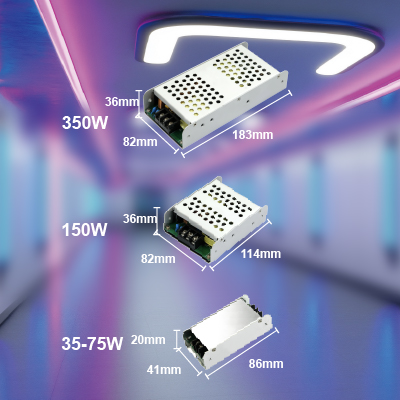

Dimension 尺寸 mm |
| JV_YY_S35M | 100-240 | 35 | 2.92 | 1.46 | 0.97 | 0.73 | 12 | 24 | 36 | 48 | 88 | Bare board,Lead wire | 86*41*20 |
| JV_YY_S75M | 100-240 | 75 | 6.25 |3.13 |12.08 | 1.56 | 12 | 24 | 36 | 48 | 88 | Bare board,Lead wire | 86*41*20 |
| JV_YY_S150M | 100-240 | 150 | 12.5 |6.25 |4.17 | 3.13 | 12 | 24 | 36 | 48 | 95 | Terminal block | 114*82*36 |
| JV_YY_S350M | 100-240 | 350 | 29.17 | 14.58 | 9.72 | 7.29 | 12 | 24 | 36 | 48 | 95 | Terminal block | 183*82*36 |
